Varenummer: 55XE3P-B
Mere information
-

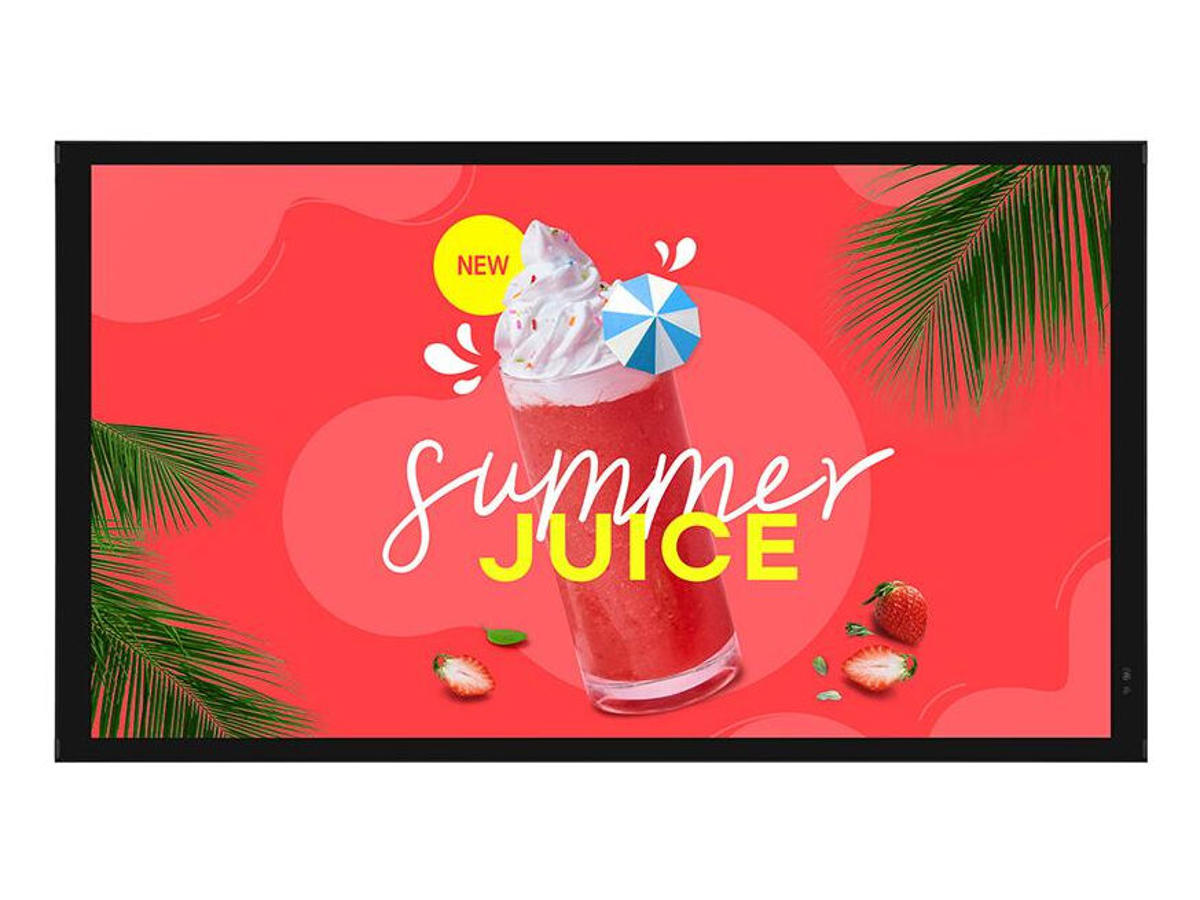

IP-rated Outdoor Display
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.
High Visibility Under Strong Sunlight
With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.
LG Anti-Discoloration
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
World’s First UL Verified Display for Anti-Discoloration Characteristics
Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
IP56 Rated Reliability
The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
IK10 Protective Glass
The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
Wide Range of Operating Temperature
The XE3P can be used under a wide range of operating temperature from -30℃ to 50℃.
Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
Easy Energy Management
The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
Built-in Wi-Fi & Bluetooth
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.
Vandalism Alert
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
Easy Installation
For easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.
High-performance with webOS 6.1
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.
Web Monitoring
The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Professional Content Partners
Pairing the XE3P with LG SW solutions* would enhance its utilization. -
Display Skærm diagonal 139,7 cm (55") Skærmopløsning 1920 x 1080 pixel Skærmens lysstyrke 3500 cd/m² HD-type Fuld HD Berøringsskærm Ingen Paneltype IPS LED-baggrundsbelysning Ja LED-baggrundsbelysning type Direct-LED Naturligt aspektforhold 16:9 Responstid 9 ms Kontrastforhold (typisk) 1000:1 Kontrastforhold (dynamisk) 500000:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Vis antal farver 16.7 millioner farver Panel levetid 50000 t Oprindelig opdateringshastighed 60 Hz Tågehastighed 3% Berøringsresponstid 8 ms Glas tykkelse 5 mm Porte & Grænseflader Antal HDMI-porte 2 Antal DisplayPorts 1 USB-port Ja Antal HDMI-indgangsporte 2 Antal USB-porte 2 USB version 2.0 USB-stik type USB Type-A Ethernet LAN-porte (RJ-45) 2 Antal højttalerudgange 1 RS-232 grænseflade Ja Lyd Indbyggede højttaler(e) Ja Antal indbyggede højttalere 2 Udgangseffekt (RMS) 20 W Lydtryksniveau 62 dB Design Produktdesign Interaktivt fladpanel Produktfarve Sort Understøttet placering Udendørs Orientering Horisontal/vertikal Præstation Formål Kommerciel Skærmvisning (OSD) Ja Antal OSD sprog 22 OSD-sprog Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Dansk, Tysk, Hollandsk, Engelsk, Spansk, Finsk, Fransk, Græsk, Italiensk, Japansk, Koreansk, Norsk, Polsk, Portugisisk, Russisk, Svensk, Tyrkisk Driftstimer (timer/dage) 24/7 HDCP Ja Kode for international beskyttelse (IP) IP56 HDCP-version 2.2 Strømstyring Strømforbrug (typisk) 160 W Strømforbrug (slukket) 0,5 W Strømforbrug (maks.) 430 W Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50/60 Hz Varmeafgivelse 1126 BUT/t Computersystem Operativsystem installeret WebOS Version af operativsystem 6,1 Vægt & størrelser Skærmbredde 1292,5 mm Skærm, dybde 88 mm Skærm, højde 737,4 mm Skærm, vægt 31,2 kg Base bredde 3,84 cm Emballeringsdata Pakkebredde 1446 mm Pakkedybde 207 mm Pakkehøjde 890 mm Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet HDMI, Strøm Driftsbetingelser Driftstemperatur (T-T) -30 - 50 °C Relativ luftfugtighed ved drift (H-H) 5 - 100% Batteri Batterisystem medfølger Ja Netværk Ethernet LAN Ja Wi-Fi Ja Funktioner Varmeafledning (maks.) 1365 BUT/t Tekniske detaljer Intern hukommelse 16000 MB Introduktionsår 2024
