Varenummer: 49XE4F-M
Mere information
-

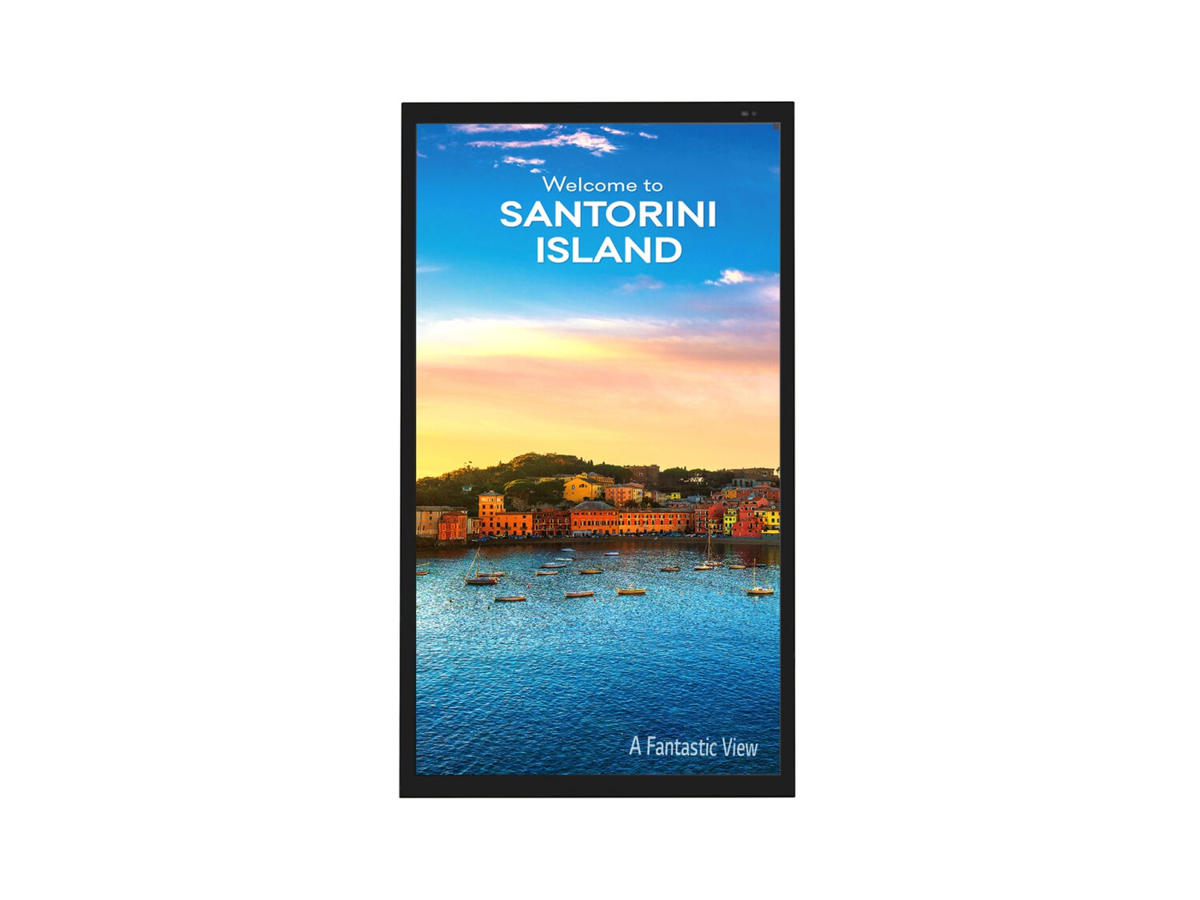

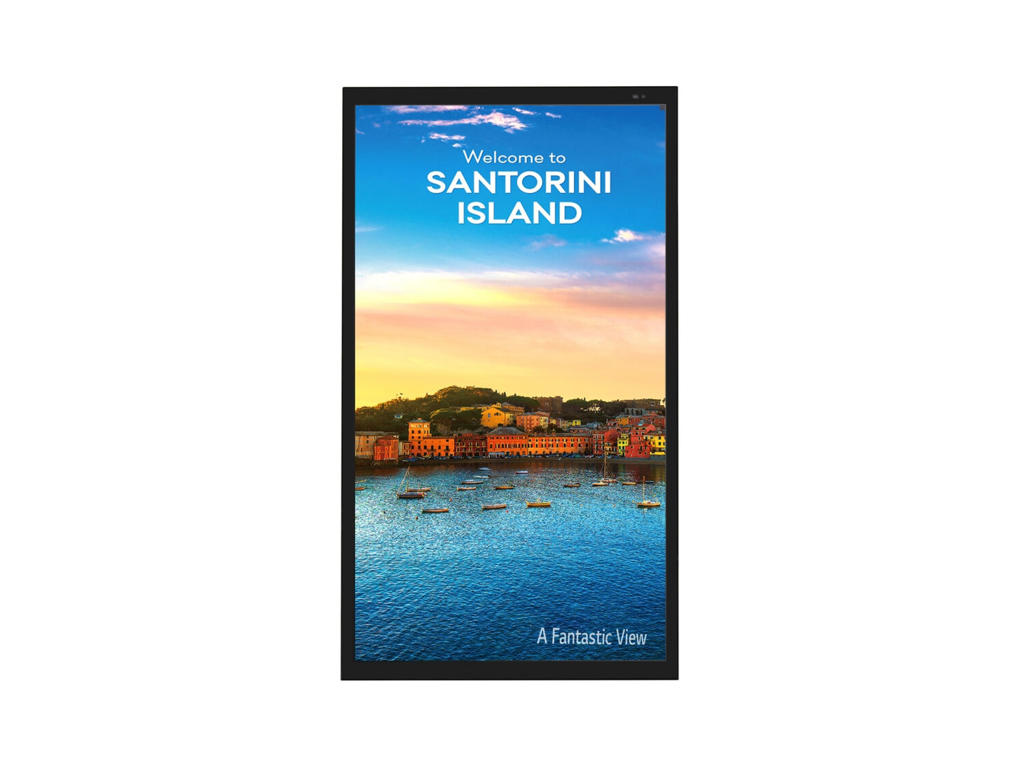

Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.
SLIM & ROBUST DESIGN
Slim & Light Design
XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
SLIM & ROBUST DESIGN
Easy integration for partner’s customized design
The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.
OUTSTANDING VISIBILITY
Bright & Brilliant
The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
OUTSTANDING VISIBILITY
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
OUTSTANDING VISIBILITY
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
OUTSTANDING VISIBILITY
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
RELIABILITY FOR OUTDOOR USAGE
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
RELIABILITY FOR OUTDOOR USAGE
Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
EASY MAINTENANCE
Support HDBaseT ™
The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.
EASY MAINTENANCE
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time. -
Display Skærm diagonal 124,5 cm (49") Skærmteknologi IPS Skærmopløsning 1920 x 1080 pixel Skærmens lysstyrke 4000 cd/m² HD-type Fuld HD Berøringsskærm Ingen LED-baggrundsbelysning type Direct-LED Naturligt aspektforhold 16:9 Responstid 8 ms Kontrastforhold (typisk) 1300:1 Kontrastforhold (dynamisk) 500000:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Porte & Grænseflader Antal HDMI-porte 2 DVI-port Ingen Antal DisplayPorts 1 USB-port Ja Antal HDMI-indgangsporte 2 VGA (D-Sub) indgangsporte 0 DisplayPorts indgang 1 Antal USB-porte 2 RS-232C Ja Lyd Indbyggede højttaler(e) Ingen Design Produktdesign Digital fladpaneldisplay Produktfarve Sort Understøttet placering Indendørs Orientering Horisontal/vertikal Facet bredde (bund) 3,84 cm Facet bredde (side) 2,6 cm Facet bredde (øverste) 3,84 cm Præstation Formål Universel Driftstimer (timer/dage) 24/7 Kode for international beskyttelse (IP) IP56 Gennemsnitstid mellem fejl (MTBF) 50000 t Strømstyring Strømforbrug (typisk) 290 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Computersystem Computersystem Ingen Indbygget processer Ingen Vægt & størrelser Bredde 656,2 mm Dybde 88 mm Højde 1153 mm Vægt 32 kg Emballeringsdata Pakkebredde 1286 mm Pakkedybde 207 mm Pakkehøjde 797 mm Pakkevægt 37 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet Vekselstrøm, HDMI Driftsbetingelser Driftstemperatur (T-T) -30 - 50 °C Relativ luftfugtighed ved drift (H-H) 5 - 100% Godkendelser Certificering IEC 60950-1 / EN 60950-1 / UL 60950-1 FCC "A" / CE / KCC ErP Logistik data Harmoniseret systemkode (HS) 85285210 Netværk Ethernet LAN Ja Wi-Fi Ingen Andre funktioner HDBaseT-port Ja Brugervejledning Ja
