Varenummer: TE7504MIS-B2AG
Mere information
-

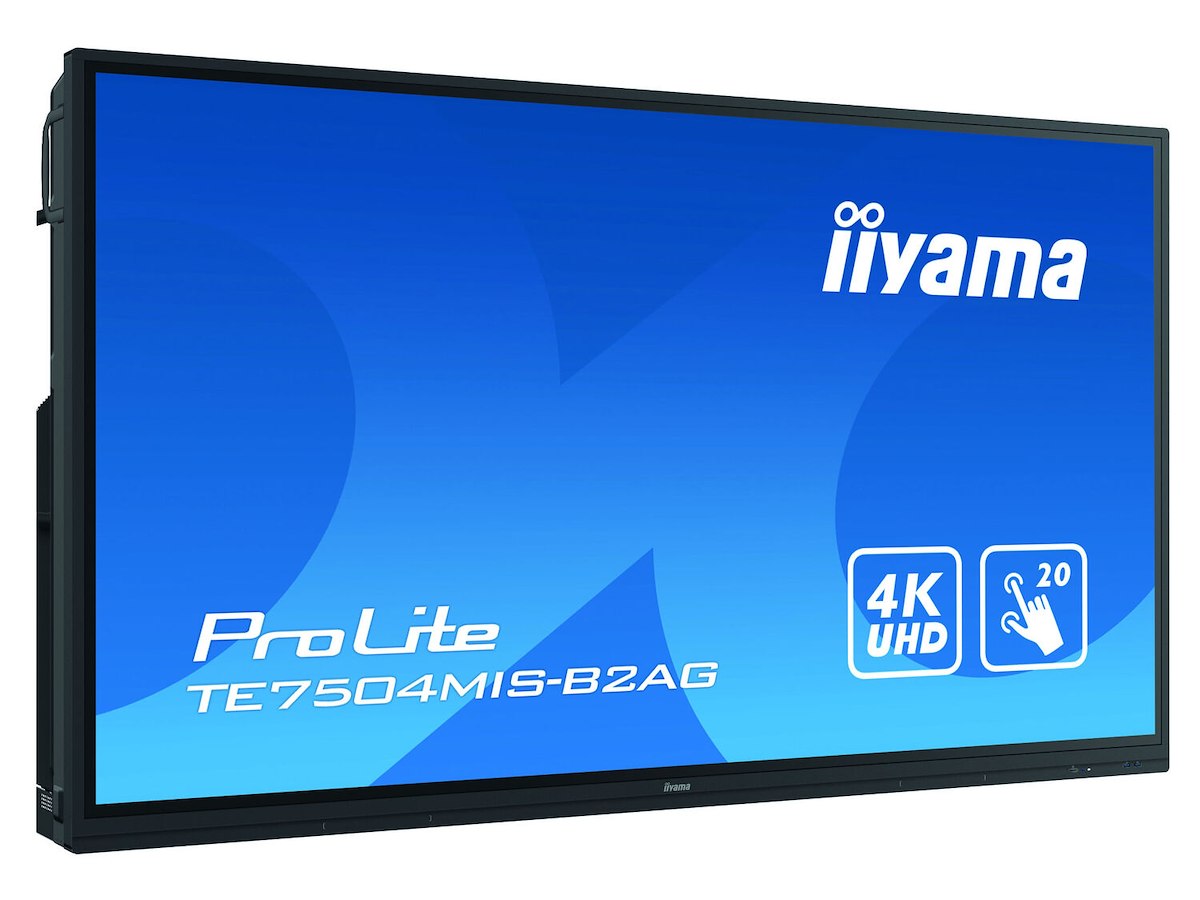

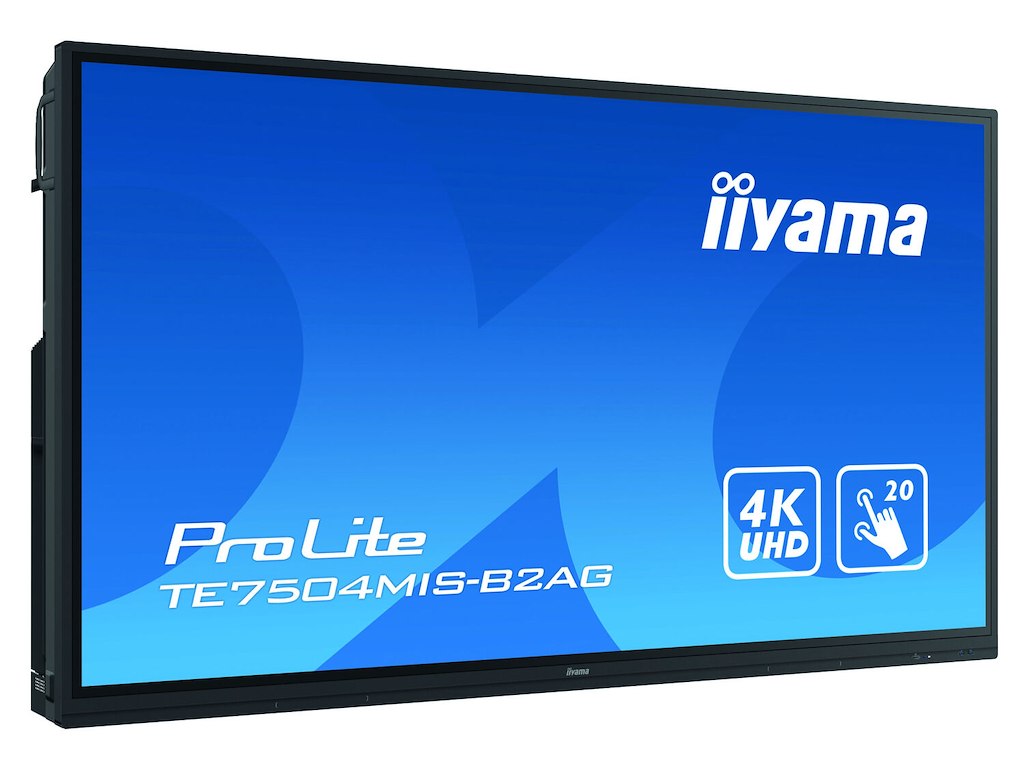

Share Your Vision with the ProLite TE7504MIS-B2AG; a perfect solution for educational and corporate use. Its 75’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.
The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 350cd/m2 and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.
PURETOUCH IR
PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.
IIWARE
iiWare 9.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.
SLOTPC
The Slot PC unlocks all of the control, security and flexibility of Windows 10 IoT including the entirety of the Microsoft eco system.
SCREENSHAREPRO
ScreenSharePro supports AirPlay, Chromecast and Miracast to easily stream content from your device to your 04 Series and vice versa, back to your notebook, tablet or phone.
SECURITY
Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.
24/7
24/7 displays are designed for a continuous operation.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image. -
Display Skærm diagonal 190,5 cm (75") Skærmteknologi IPS Skærmopløsning 3840 x 2160 pixel Skærmens lysstyrke 350 cd/m² HD-type 4K Ultra HD Berøringsskærm Ja Berøringsskærm teknologi PureTouch-IR Antal simultane touchpunkter 20 Multi-touch Ja Naturligt aspektforhold 16:9 Responstid 8 ms Kontrastforhold (typisk) 1200:1 Kontrastforhold (dynamisk) 3500:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Vis antal farver 1,07 milliarder farver Pixel pitch 0,4296 x 0,4296 mm Aktiv skærmområde (B x H) 1650 x 928 mm Skærm diagonal (metrisk) 189,3 cm Horisontal scanningsområde 30 - 80 kHz Porte & Grænseflader Antal HDMI-porte 3 DVI-port Ingen Antal DisplayPorts 0 USB-port Ja Antal HDMI-indgangsporte 3 VGA (D-Sub) indgangsporte 1 USB version 3.2 Gen 1 (3.1 Gen 1) Ethernet LAN-porte (RJ-45) 2 Pc lydindgang Ja RS-232C Ja Lyd Indbyggede højttaler(e) Ja Antal indbyggede højttalere 2 Udgangseffekt (RMS) 32 W Design Produktdesign Interaktivt fladpanel Produktfarve Sort Understøttet placering Indendørs VESA montering Ja Orientering Vandret Panel montering grænseflade 800 x 400 mm Facet bredde (bund) 4,3 cm Facet bredde (side) 1,4 cm Facet bredde (øverste) 1,4 cm Præstation Formål Universel Skærmvisning (OSD) Ja Antal OSD sprog 9 OSD-sprog Tjekkisk, Tysk, Hollandsk, Engelsk, Spansk, Fransk, Italiensk, Polsk, Russisk HDCP Ja Gennemsnitstid mellem fejl (MTBF) 50000 t Strømstyring Strømforbrug (typisk) 260 W Strømforbrug (standby) 0,5 W Strømforbrug (slukket) 0,5 W Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Computersystem Computersystem Ja Indbygget processer Ja Intern hukommelse 4 GB Intern lagerkapacitet 32 GB Operativsystem installeret Android Vægt & størrelser Skærmbredde 1709 mm Skærm, dybde 86 mm Skærm, højde 1020 mm Skærm, vægt 50,8 kg Emballeringsdata Pakkebredde 1930 mm Pakkedybde 1140 mm Pakkehøjde 280 mm Pakkevægt 69 kg Emballage indhold Fjernbetjening inkluderet Ja Batterier inkluderet Ja Kabler inkluderet Vekselstrøm, HDMI, USB Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -20 - 60 °C Logistik data Harmoniseret systemkode (HS) 85285210 Netværk Ethernet LAN Ja Wi-Fi Ja Tekniske detaljer Bæredygtighedscertifikater ErP Compliance-certifikater CE, REACH, RoHS, WEEE
