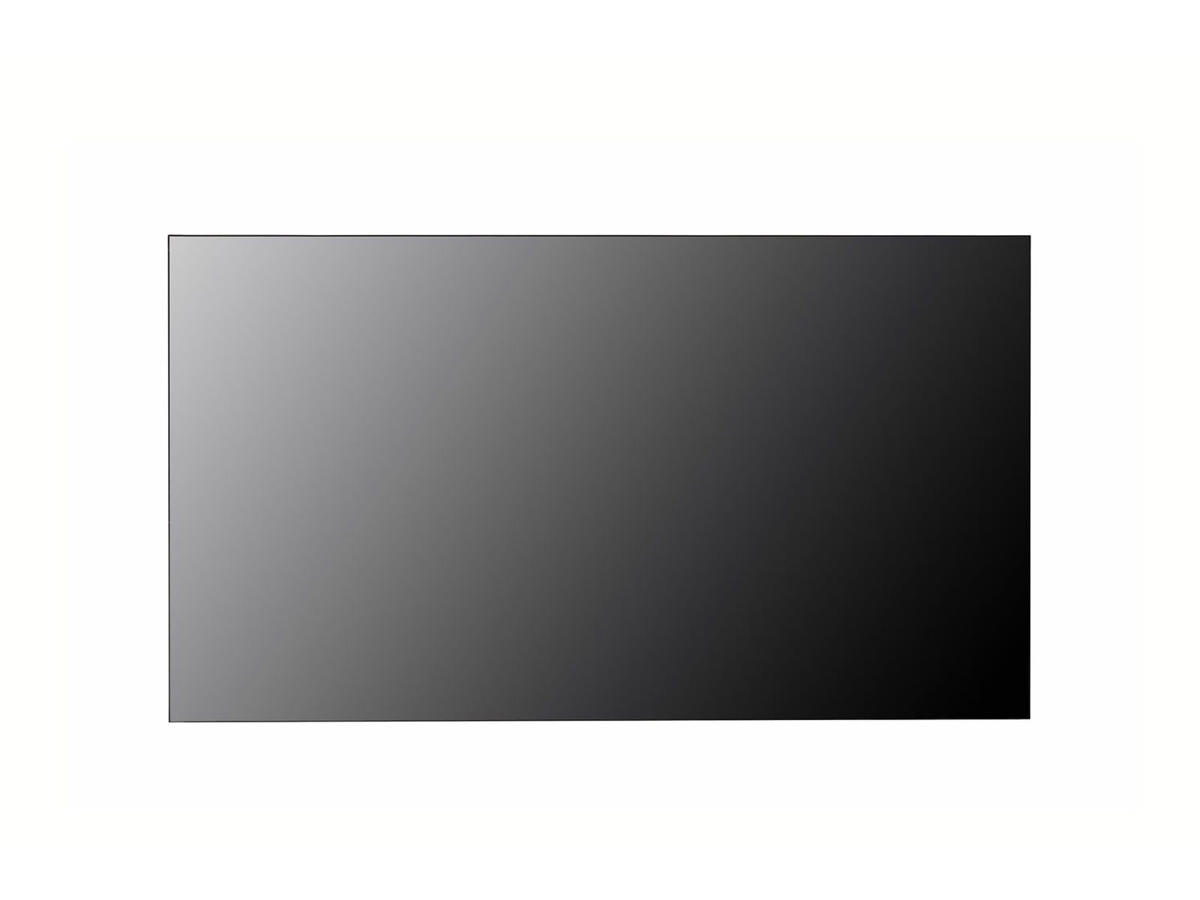

Varenummer: 55VH7J-H
Mere information
-
Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST. -
Display Skærm diagonal 139,7 cm (55") Skærmopløsning 1920 x 1080 pixel Skærmens lysstyrke 700 cd/m² HD-type Fuld HD Berøringsskærm Ingen Paneltype IPS LED-baggrundsbelysning type Direct-LED Naturligt aspektforhold 16:9 Responstid 8 ms Kontrastforhold (typisk) 1000:1 Kontrastforhold (dynamisk) 500000:1 Synsvinkel, horisontal 178° Synsvinkel, vertikal 178° Vis antal farver 1,07 milliarder farver Vurderet levetid 60000 t Oprindelig opdateringshastighed 60 Hz Tågehastighed 28% Porte & Grænseflader Antal HDMI-porte 2 DVI-port Ja Antal DisplayPorts 1 USB-port Ja HDMI-version 2.2 Antal DVI-D-porte 1 Antal USB-porte 1 USB version 2.0 Ethernet LAN-porte (RJ-45) 1 RS-232C Ja Design Produktdesign Panorama design Produktfarve Sort VESA montering Ja Panel montering grænseflade 600 x 400 mm Præstation Formål Kommerciel Skærmvisning (OSD) Ja Driftstimer (timer/dage) 24/7 Strømstyring Strømforbrug (typisk) 250 W Strømforbrug (slukket) 0,5 W Energieffektivitetsklasse (SDR) G Energiforbrug (SDR) pr. 1000 timer 157 kWh Vekselstrømsindgangsspænding 100-240 V Vekselstrømsindgangsfrekvens 50/6 Hz Energieffektivitetsskala A til G Vægt & størrelser Skærmbredde 1212,2 mm Skærm, dybde 86,9 mm Skærm, højde 683 mm Skærm, vægt 18,8 kg Emballeringsdata Pakkebredde 1353 mm Pakkedybde 263 mm Pakkehøjde 855 mm Pakkevægt 31 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet DisplayPort, Strøm, RS-232 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 10 - 80% Logistik data Oprindelsesland Sydkorea Netværk Ethernet LAN Ja
