Varenummer: LSD401HD
Mere information
-

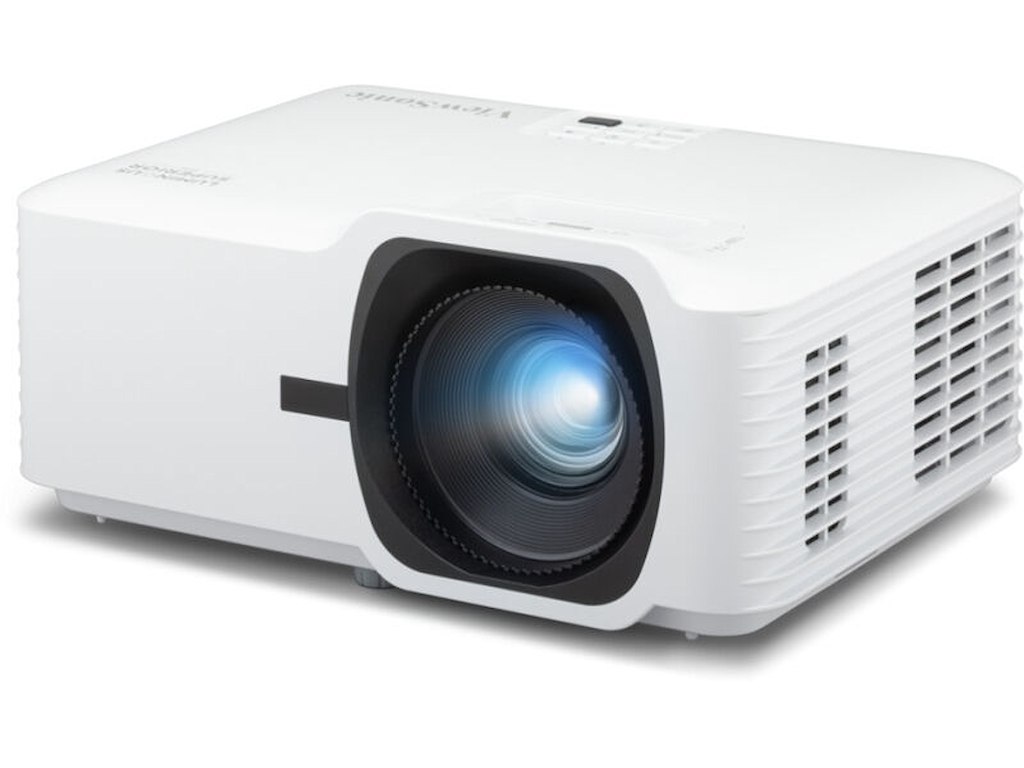

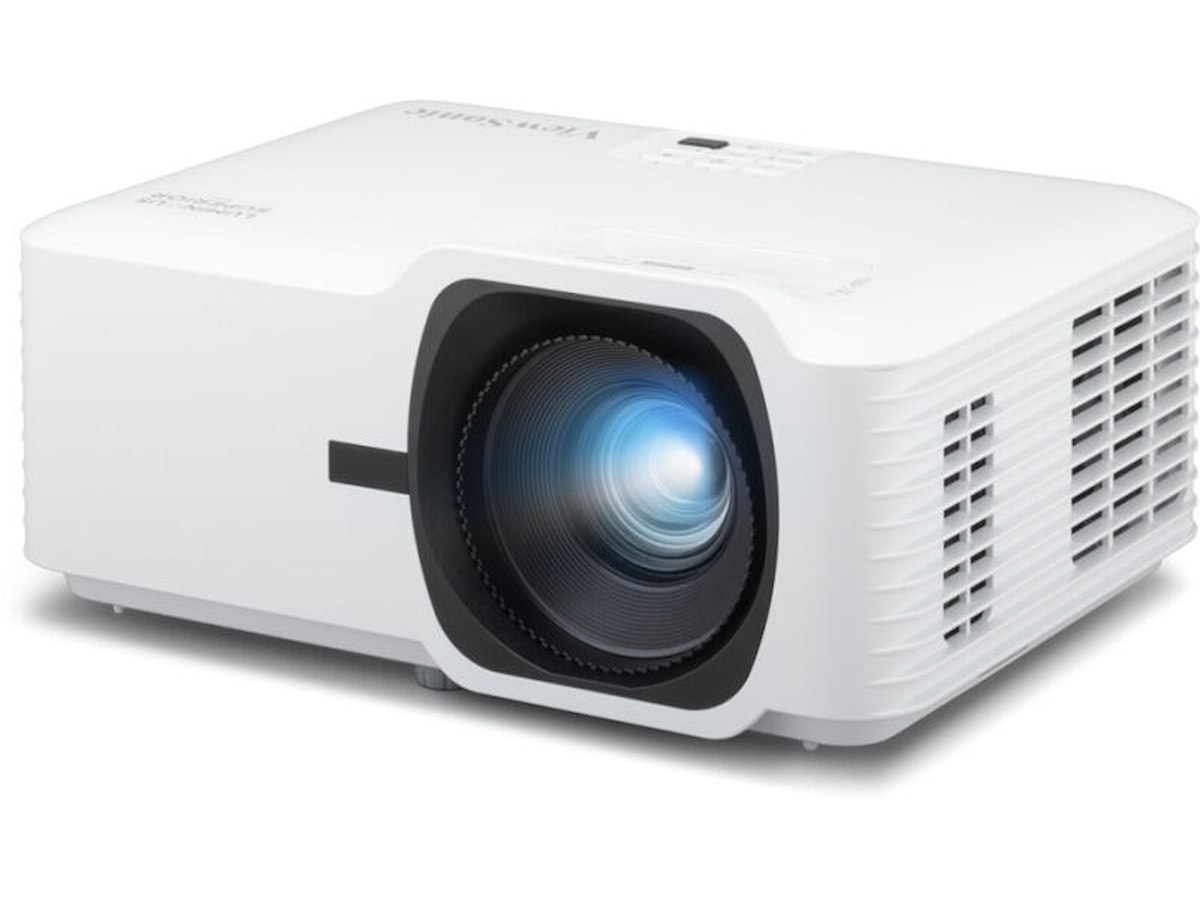

The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.
Bright, Compact, Durable
The LSD401HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
Bright Images for Large Venues
Delivering 4,000 ANSI Lumens, the LSD401HD provides vibrant and sharp 1080p FHD projection for meeting rooms, classrooms and golf simulation setups.
Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD401HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Save on Costs and Energy
With its advanced lamp-free light source, the LSD401HD offers a highly energy-efficient and cost-saving display solution by consuming up to 59% less power than competing projectors.
Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
Centralized Control for Management Efficiency
The LSD401HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
HDR / HLG / 4K UHD supported by HDMI 2.0b
The LSD401HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.
Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle. -
Projektør Projektor lysstyrke 4000 ANSI lumens Projektionsteknologi DLP Projektor indbygget opløsning 1080p (1920x1080) Kontrastforhold (typisk) 3000000:1 Smart projektor Ingen Skærmstørrelse kompatibilitet 762 - 7620 mm (30 - 300") Projiceringsafstand 0,75 - 9,76 m Antal farver 1,07 milliarder farver Trapezkorrektion, horisontal +-30° Trapezkorrektion, vertikal +-30° Matrix størrelse 1,65 cm (0.65") Matrix-type DMD Horisontal synkronisering (min.) 15 kHz Horisontal synkronisering (maks.) 135 kHz Vertikal synkronisering (min.) 0,024 kHz Vertikal synkronisering (maks.) 0,12 kHz Skærmstørrelse (maks) 7,62 m (300") Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Lyskildens lysstyrke 4400 lm Linsesystem Fokus Vejledning Brændviddeområde 16.9 - 21.61 mm Blændeområde (F-F) 2,43 - 2,78 Zoom kapacitet Ja Digital zoom 2x Optisk zoom 1,3x Throw-forhold 1.13 - 1.47 Vandret område for optisk linseforskydning 0 - 60% Forskydning 132% Video Full HD Ja 3D Ingen Understøttede grafikopløsninger 640 x 480 (VGA), 3840 x 2160 Understøttede videotilstande 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Porte & Grænseflader Antal VGA-porte (D-sub) 0 Antal HDMI-porte 2 Sammensat videoindgang 0 Komponentvideo (YPbPr/YCbCr) indgang 0 DVI-port Ingen Lyd (L, R) indgang 0 Seriel grænsefladetype RS-232 HDMI- stiktype Fuld størrelse HDMI-version 2.0 Antal USB 2.0 type-A-porte 1 PC-lydudgang Ja Netværk Smart TV Ingen Ethernet LAN Ja Wi-Fi Ingen Ethernet LAN-porte (RJ-45) 1 Lagring Indbygget kortlæser Ingen Funktioner Støjniveau 32 dB Støjniveau (økonomisk tilstand) 27 dB HDCP Ja Skærmvisning (OSD) Ja OSD-sprog Flere HDCP-version 2.2 Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 15 W Design Produkttype Standard-kast projektor Produktfarve Hvid Slot til kabellås Ja Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 143 W Strømforbrug (standby) 0,5 W Vekselstrømsindgangsspænding 100 - 240 V Udgangsspænding for vekselstrømsadapter 19.5 V Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Vægt & størrelser Vægt 3,1 kg Bredde 286 mm Dybde 216 mm Højde 129 mm Pakkebredde 400 mm Pakkedybde 155 mm Pakkehøjde 280 mm Pakkevægt 4,6 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet Vekselstrøm Garantibevis Ja Logistik data Antal pr. pakke 1 stk Pallens bruttolængde 102 cm Pallens bruttobredde 122 cm Pallens bruttohøjde 181 cm Produkter pr. hovedkasse (udvendigt) 1 stk Harmoniseret systemkode (HS) 8528620000 Tekniske detaljer Billedforsinkelsestid 16,7 ms
