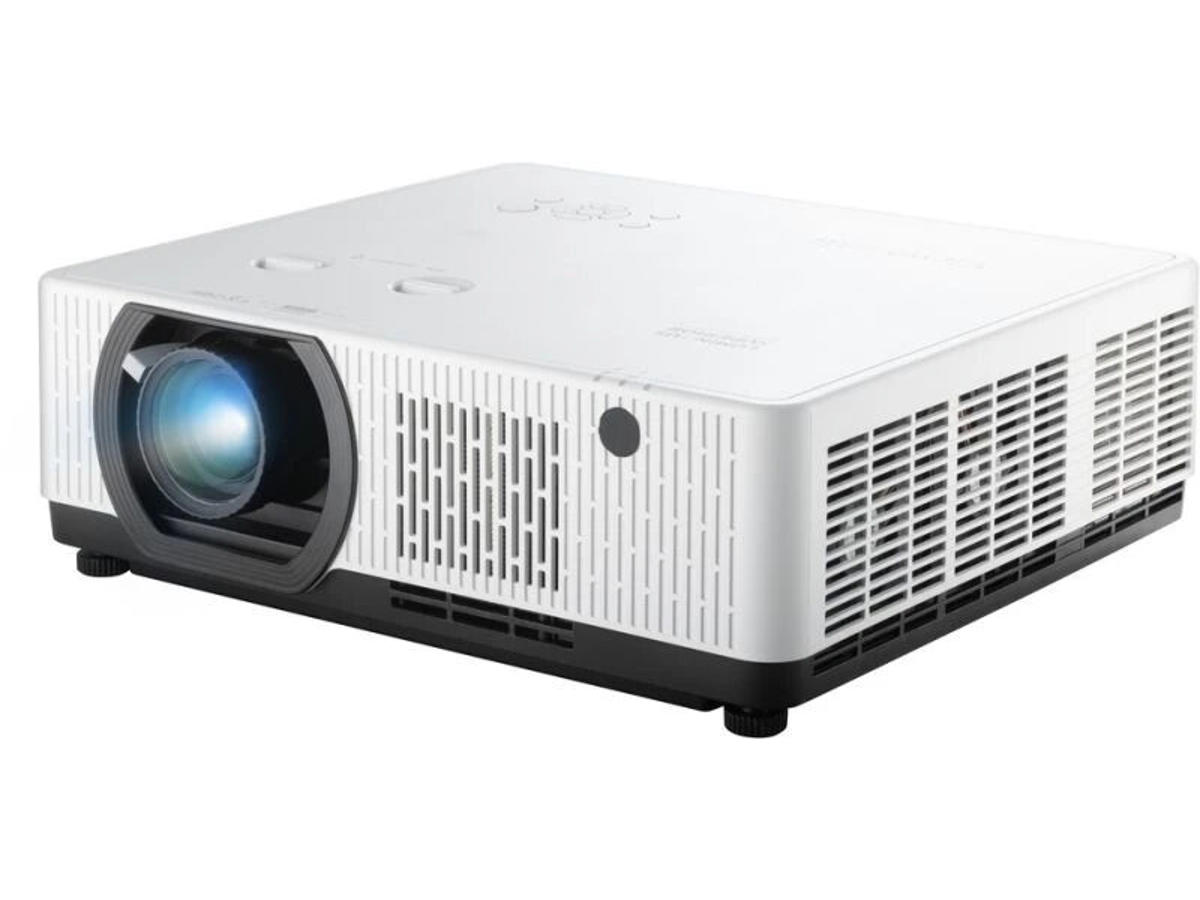

The LSC731WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 7,300 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC731WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 7,300 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
| Projektør | |
| Projektor lysstyrke | 7300 ANSI lumens |
| Projektionsteknologi | 3LCD |
| Projektor indbygget opløsning | WUXGA (1920x1200) |
| Kontrastforhold (typisk) | 3000000:1 |
| Naturligt aspektforhold | 16:10 |
| Skærmstørrelse kompatibilitet | 762 - 7620 mm (30 - 300") |
| Understøttede billedformater | 16:10 |
| Projiceringsafstand | 0,78 - 12,99 m |
| Antal farver | 1,07 milliarder farver |
| Horisontal scanningsområde | 15 - 100 kHz |
| Vertikalt scanningsområde | 23 - 85 Hz |
| Trapezkorrektion, horisontal | -25 - 25° |
| Trapezkorrektion, vertikal | -30 - 30° |
| Lyskilde | |
| Lyskilde type | Lampe |
| Levetid for lyskilde | 20000 t |
| Levetid for lyskilde (økonomisk tilstand) | 30000 t |
| Linsesystem | |
| Brændviddeområde | 17.2 - 27.7 mm |
| Blændeområde (F-F) | 1,5 - 2,08 |
| Zoom kapacitet | Ja |
| Throw-forhold | 1.2 - 2 |
| Horisontalt område for optisk linseforskydning | 0 - 60% |
| Vandret område for optisk linseforskydning | -29 - 29% |
| Forskydning | 5% |
| Video | |
| Full HD | Ja |
| Porte & Grænseflader | |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 2 |
| Lyd (L, R) indgang | 1 |
| Seriel grænsefladetype | RS-232 |
| Lyd (L, R) udgang | 1 |
| AC (strøm) indgang | Ja |
| Netværk | |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Lagring | |
| Indbygget kortlæser | Ingen |
| Funktioner | |
| Støjniveau | 37 dB |
| Støjniveau (økonomisk tilstand) | 27 dB |
| Luftfilter | Ja |
| Design | |
| Produkttype | Standard-kast projektor |
| Markedspositionering | Uddannelse |
| Produktfarve | Sort, Hvid |
| Placering | Loft |
| LED-indikatorer | Ja |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforbrug (typisk) | 375 W |
| Strømforbrug (standby) | 0,5 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Vægt & størrelser | |
| Vægt | 7,9 kg |
| Bredde | 405 mm |
| Dybde | 358 mm |
| Højde | 137 mm |
| Pakkebredde | 510 mm |
| Pakkedybde | 498 mm |
| Pakkehøjde | 260 mm |
| Pakkevægt | 10,9 kg |
| Emballage indhold | |
| Fjernbetjening inkluderet | Ja |
| Brugervejledning | Ja |
| Logistik data | |
| Antal pr. pakke | 1 stk |
