Varenummer: LSC521WU
Mere information
-

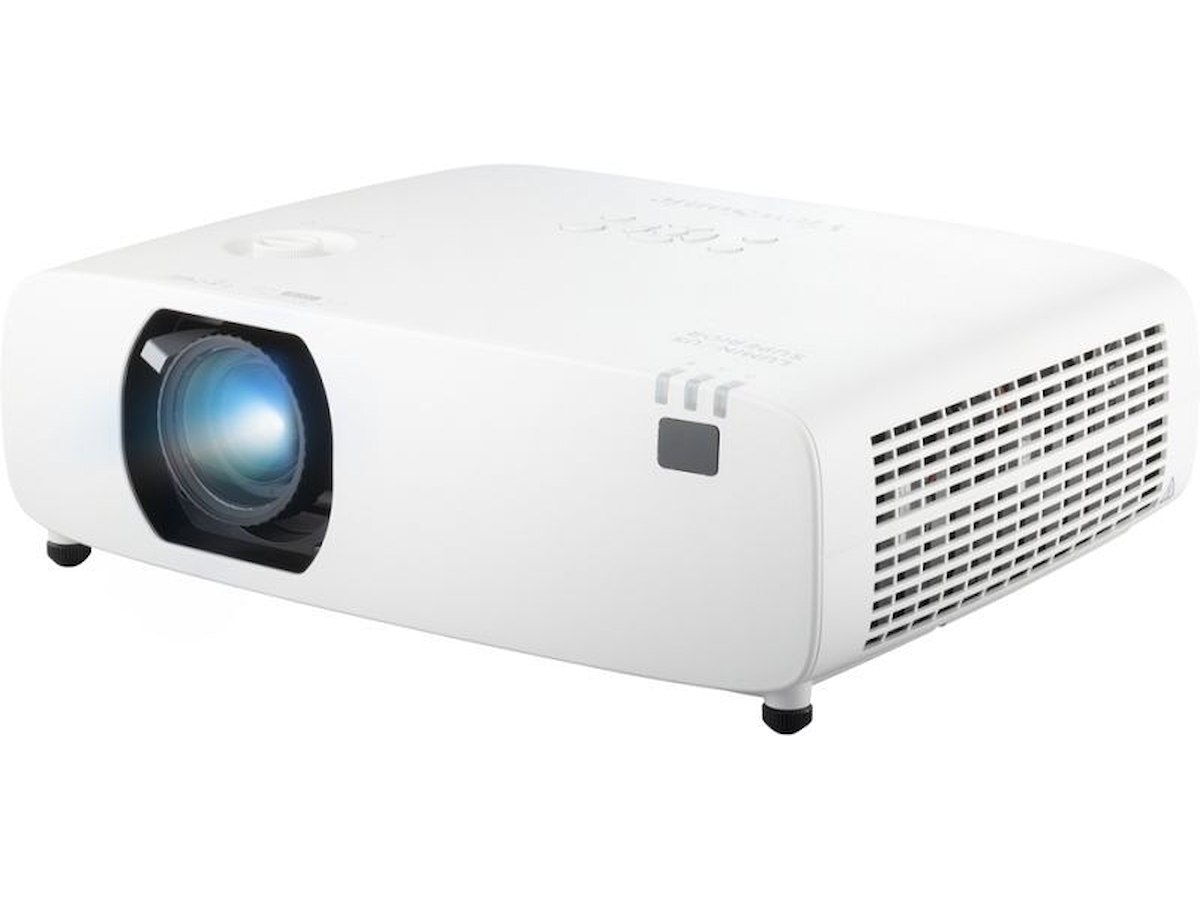

The LSC521WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC521WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
Bright Images for Large Venues
Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
Bright, Compact, Durable
The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency. -
Projektør Projektor lysstyrke 5200 ANSI lumens Projektionsteknologi 3LCD Projektor indbygget opløsning WUXGA (1920x1200) Kontrastforhold (typisk) 3000000:1 Naturligt aspektforhold 21:9 Smart projektor Ingen Skærmstørrelse kompatibilitet 762 - 7620 mm (30 - 300") Projiceringsafstand 0,78 - 12,99 m Antal farver 1,07 milliarder farver Trapezkorrektion, horisontal +-30° Trapezkorrektion, vertikal +-30° Matrix størrelse 1,63 cm (0.64") Matrix-type MLA Horisontal synkronisering (min.) 15 kHz Horisontal synkronisering (maks.) 100 kHz Vertikal synkronisering (min.) 0,023 kHz Vertikal synkronisering (maks.) 0,085 kHz Skærmstørrelse (maks) 7,62 m (300") Lyskilde Lyskilde type Laser Levetid for lyskilde 20000 t Levetid for lyskilde (økonomisk tilstand) 30000 t Lyskildens lysstyrke 6000 lm Linsesystem Brændviddeområde 17.2 - 27.7 mm Blændeområde (F-F) 1,5 - 2,08 Zoom kapacitet Ja Digital zoom 4x Optisk zoom 1,6x Throw-forhold 1.2 - 2.01 Vandret område for optisk linseforskydning 0 - 60% Forskydning 0% Video Full HD Ja 3D Ingen Understøttede grafikopløsninger 640 x 480 (VGA), 3840 x 2160 Understøttede videotilstande 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Porte & Grænseflader Antal VGA-porte (D-sub) 1 Antal HDMI-porte 2 Sammensat videoindgang 1 Komponentvideo (YPbPr/YCbCr) indgang 0 DVI-port Ingen Lyd (L, R) indgang 1 Seriel grænsefladetype RS-232 HDMI- stiktype Fuld størrelse HDMI-version 1.4 Antal USB 2.0 type-A-porte 1 Antal USB 2.0 Type-B porte 1 Pc lydindgang Ja PC-lydudgang Ja Indgang til pc'en (D-Sub) Ja AC (strøm) indgang Ja Netværk Smart TV Ingen Ethernet LAN Ja Wi-Fi Ingen Ethernet LAN-porte (RJ-45) 2 Lagring Indbygget kortlæser Ingen Funktioner Støjniveau 35 dB Støjniveau (økonomisk tilstand) 26 dB HDCP Ja Skærmvisning (OSD) Ja OSD-sprog Flere HDCP-version 1.4 Luftfilter Ja Multimedie Indbyggede højttaler(e) Ja Udgangseffekt (RMS) 16 W Design Produkttype Standard-kast projektor Markedspositionering Uddannelse Produktfarve Hvid Display Indbygget skærm Ingen Strømstyring Strømkilde Vekselstrøm Strømforbrug (typisk) 240 W Strømforbrug (standby) 0,5 W Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Vægt & størrelser Vægt 5,2 kg Bredde 390 mm Dybde 294 mm Højde 128 mm Pakkebredde 492 mm Pakkedybde 443 mm Pakkehøjde 239 mm Pakkevægt 7,23 kg Emballage indhold Fjernbetjening inkluderet Ja Kabler inkluderet Vekselstrøm Logistik data Antal pr. pakke 1 stk Pallens bruttolængde 100 cm Pallens bruttobredde 100 cm Pallens bruttohøjde 181 cm Produkter pr. hovedkasse (udvendigt) 1 stk Harmoniseret systemkode (HS) 8528620000 Tekniske detaljer Billedforsinkelsestid 60 ms
