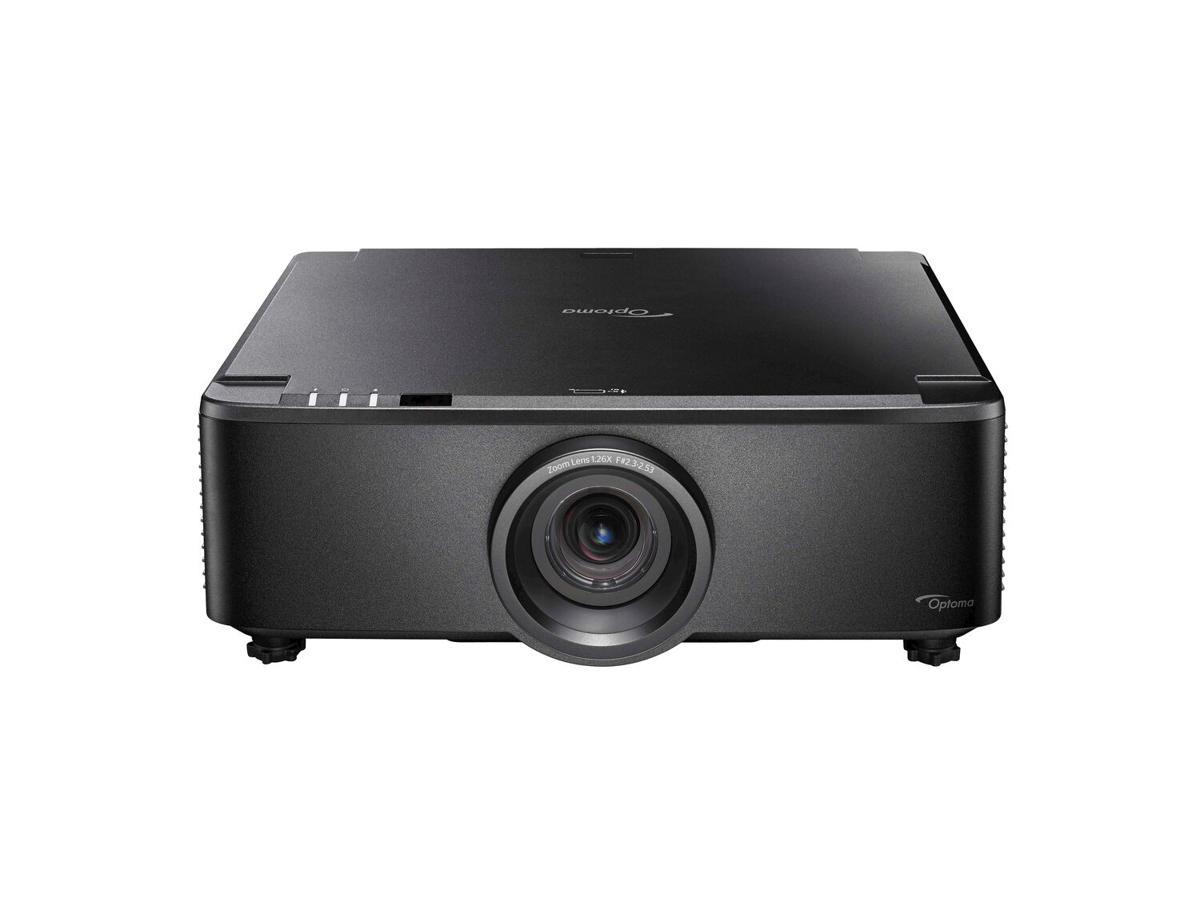

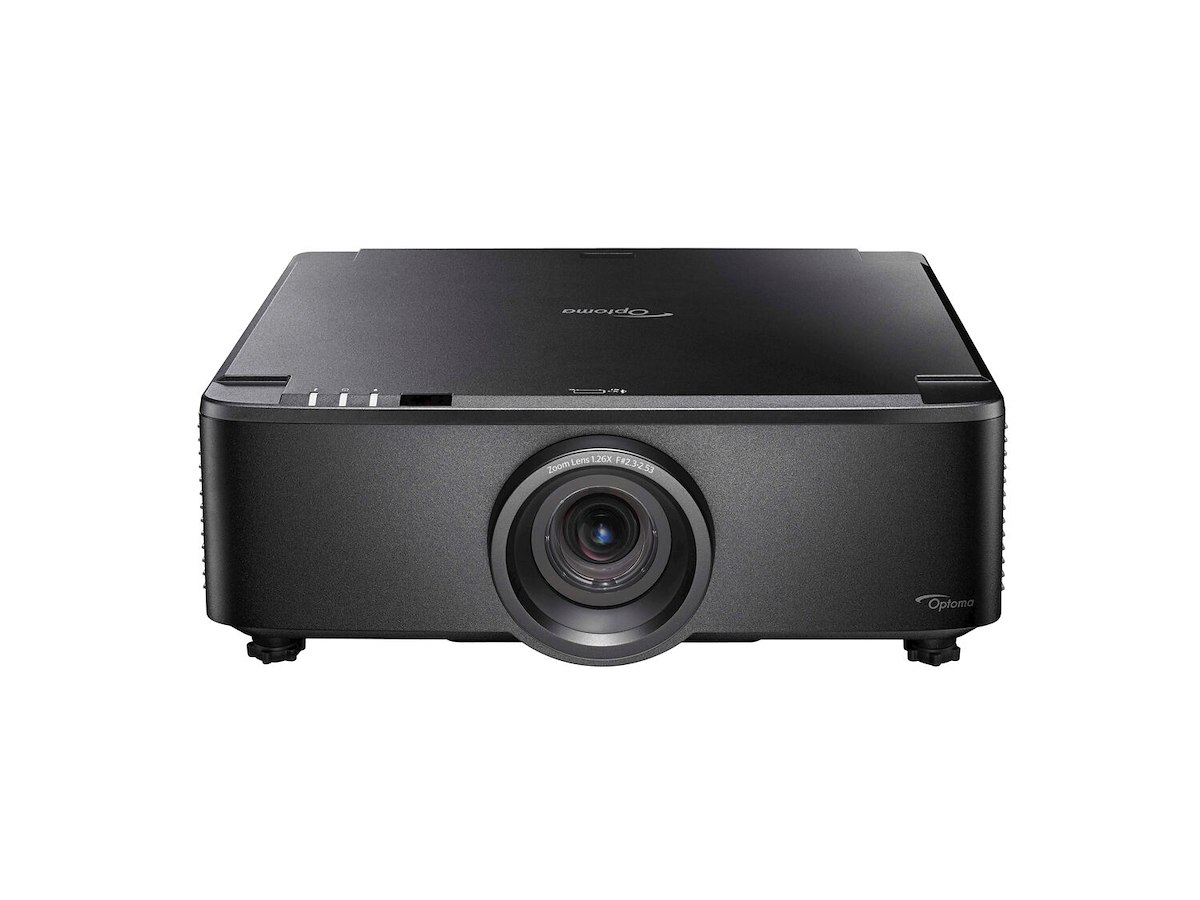

The ZU720TST is the world's first fixed lens 7000 lumen WUXGA short throw laser projector.
At 7000 lumens with 4K and HDR compatibility, the ZU720TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include a motorised zoom and 0.75~0.95 throw ratio, full motorised lens shift and built-in dual 10W speakers.
High brightness, colour precision and quiet operation, along with a short throw lens make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as short throw digital signage, edge-blending and projection mapping, simulation, and immersive installations.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution
| Projektør | |
| Projektor lysstyrke | 7000 ANSI lumens |
| Projektionsteknologi | DLP |
| Projektor indbygget opløsning | WUXGA (1920x1200) |
| Kontrastforhold (typisk) | 1100:1 |
| Naturligt aspektforhold | 16:10 |
| Smart projektor | Ingen |
| Skærmstørrelse kompatibilitet | 1270 - 7620 mm (50 - 300") |
| Understøttede billedformater | 4:3, 16:10, 16:9 |
| Projiceringsafstand | 0,81 - 6,13 m |
| Kontrastforhold (dynamisk) | 1000000:1 |
| Trapezkorrektion, horisontal | -30 - 30° |
| Trapezkorrektion, vertikal | -30 - 30° |
| Varmeafgivelse | 1790 BUT/t |
| Lyskilde | |
| Lyskilde type | Laser |
| Levetid for lyskilde | 30000 t |
| Linsesystem | |
| Brændviddeområde | 11.11 - 14.16 mm |
| Zoom kapacitet | Ja |
| Zoom type | Automatisk |
| Zoomforhold | 1.26:1 |
| Throw-forhold | 0.75:1 - 0.95:1 |
| Horisontalt område for optisk linseforskydning | -15 - 15% |
| Vandret område for optisk linseforskydning | -50 - 50% |
| Video | |
| Full HD | Ja |
| 3D | Ja |
| Porte & Grænseflader | |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 3 |
| Sammensat videoindgang | 0 |
| Komponentvideo (YPbPr/YCbCr) indgang | 0 |
| DVI-port | Ingen |
| Lyd (L, R) indgang | 0 |
| Seriel grænsefladetype | RS-232C |
| HDMI- stiktype | Fuld størrelse |
| HDMI-version | 1.4a/2.0 |
| HDBaseT-port | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 2.0 Type-B porte | 1 |
| Pc lydindgang | Ja |
| PC-lydudgang | Ja |
| AC (strøm) indgang | Ja |
| Netværk | |
| Smart TV | Ingen |
| Ethernet LAN | Ja |
| Wi-Fi | Ingen |
| Ethernet LAN-porte (RJ-45) | 1 |
| Lagring | |
| Indbygget kortlæser | Ingen |
| Funktioner | |
| Støjniveau | 27 dB |
| Interaktiv | Ingen |
| Skærmvisning (OSD) | Ja |
| OSD-sprog | Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Dansk, Tysk, Hollandsk, Engelsk, Spansk, Farsi, Fransk, Græsk, Indonesisk, Italiensk, Japansk, Norsk, Polsk, Portugisisk, Rumænsk, Russisk, Svensk, Tyrkisk, Vietnamesisk |
| Antal OSD sprog | 23 |
| Beskyttelse af adgangskode | Ja |
| Multimedie | |
| Indbyggede højttaler(e) | Ja |
| Udgangseffekt (RMS) | 20 W |
| Antal indbyggede højttalere | 2 |
| Design | |
| Produkttype | Projektor med kort projiceringsafstand |
| Markedspositionering | Præsentation |
| Produktfarve | Sort |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforbrug (typisk) | 320 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (maks.) | 510 W |
| Driftsbetingelser | |
| Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
| Vægt & størrelser | |
| Vægt | 12,9 kg |
| Bredde | 484 mm |
| Dybde | 178,5 mm |
| Højde | 376 mm |
| Pakkevægt | 16,5 kg |
| Emballage indhold | |
| Fjernbetjening inkluderet | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85286200 |
