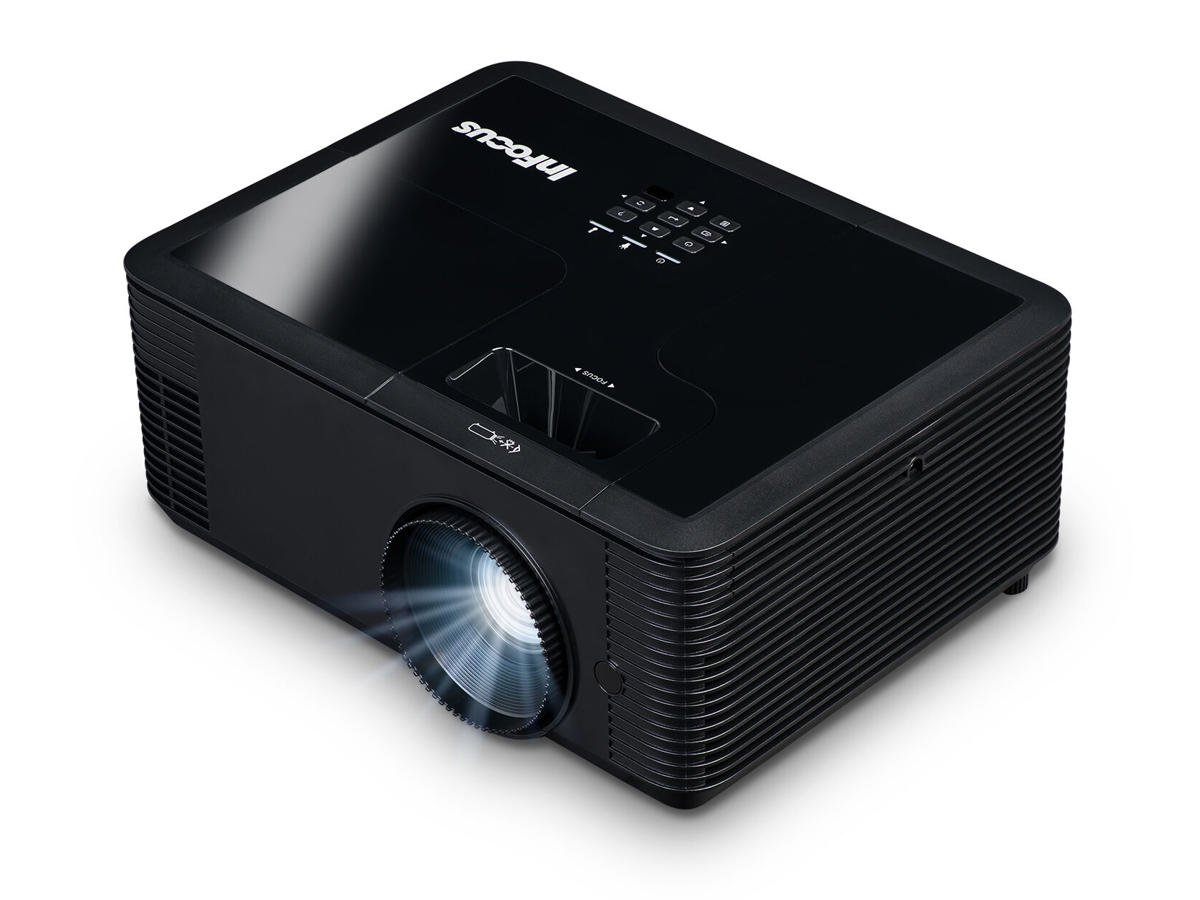

InFocus IN136 Projector
The InFocus IN136 WXGA projector combines stellar image performance, long-life lamp and low cost with the ability to create a more powerful and dynamic education experience. Simply insert your Google ChromeCast, Intel Computer Stick, Android solution, or other device into the projector’s TechStation internal HDMI 1.4 bay and turn your projector into an all-in-one classroom solution.
Customize your projector using TechStation
With an HDMI port and multiple ways to connect your devices, the TechStation superpowers your projector and enables more effective learning by working seamlessly with the tools you already use. After connecting your device, close up the TechStation’s lid to create a streamlined, all-in-one solution for streaming audio and video.
IN130 Series projectors work with:
- Google ChromeCast Ultra
- Intel Computer Stick
- Asus Chromebit
- Amazon Fire TV Stick
- Android stick
- And more HDMI-supported devices to enable casting, streaming, and wireless
Easy to Install and Manage
Quickly and simply install and manage your projector over your school’s network with free ProjectorNet 4.1 software from InFocus, or choose to utilize Crestron Roomview or AMX Device Discovery.
Quietest Projector in its Class
Make sure students always hear the lessons, not the fans. With only 21dB in eco mode, IN136 projector was designed to be quieter, with Smooth Flow fan technology, a cooling-efficient enclosure, and silent bearings.
Save Energy with Value that Lasts
IN130 projectors are designed to fit your budget go the distance with ultra-long lamp life of up to 15,000 hours and no filters to clean or replace. Unlike other imaging technologies, the TI DLP® chip ensures no image decay over time so your projector lasts longer. Activate Dynamic Mode to dim the image when not in use, and save even more money over the life of the projector.
Over 1 Billion Colors
BrilliantColor™ DLP imaging technology lets images shine with over 1 billion colors that ensure life-like color accuracy and eye-catching presentations. Get better, brighter images on whiteboards, blackboards, or beige walls, in any light.
Engage Audiences from Every Angle with 3D
Bring content to life with support for multiple forms of 3D -- including Blu-Ray, 3D broadcasting, videos games and PC connectivity. All your audience needs are 144Hz DLP Link 3D glasses (sold separately).
| Projektør | |
| Projektor lysstyrke | 4000 ANSI lumens |
| Projektionsteknologi | DLP |
| Projektor indbygget opløsning | WXGA (1280x800) |
| Kontrastforhold (typisk) | 28500:1 |
| Naturligt aspektforhold | 16:10 |
| Skærmstørrelse kompatibilitet | 584,2 - 6502,4 mm (23 - 256") |
| Understøttede billedformater | 4:3, 16:10, 16:9 |
| Projiceringsafstand | 1 - 10 m |
| Antal farver | 1.073 milliarder farver |
| Projektor lysstyrke (økonomisk tilstand) | 3200 ANSI lumens |
| Ensartethed | 80% |
| Trapezkorrektion, horisontal | -40 - 40° |
| Matrix-type | DMD |
| Horisontal synkronisering (min.) | 31,5 kHz |
| Horisontal synkronisering (maks.) | 97,6 kHz |
| Vertikal synkronisering (min.) | 56 kHz |
| Vertikal synkronisering (maks.) | 120 kHz |
| Lyskilde | |
| Lyskilde type | Lampe |
| Levetid for lyskilde | 5500 t |
| Levetid for lyskilde (økonomisk tilstand) | 10000 t |
| Lampe type | UHP |
| Lampeeffekt | 245 W |
| Pære-strøm (økonomisk funktion) | 170 W |
| Linsesystem | |
| Fokus | Vejledning |
| Throw-forhold | 1.54 - 1.72:1 |
| Forskydning | 112,4% |
| Video | |
| Format til analogt signal | NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Full HD | Ingen |
| 3D | Ja |
| Understøttede grafikopløsninger | 800 x 600 (SVGA), 854 x 480 (WVGA), 1024 x 600, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Understøttede videotilstande | 480i, 480p, 576i, 720p, 1080i, 1080p |
| Justerbar farvetemperatur | Ja |
| Porte & Grænseflader | |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 3 |
| Sammensat videoindgang | 1 |
| Komponentvideo (YPbPr/YCbCr) indgang | 0 |
| DVI-port | Ingen |
| Lyd (L, R) indgang | 1 |
| Seriel grænsefladetype | RS-232 |
| HDMI- stiktype | Fuld størrelse |
| HDMI-version | 1.4a |
| Antal af S-video-indgange | 0 |
| HDBaseT-port | Ingen |
| Antal USB 2.0-porte | 1 |
| Lyd (L, R) udgang | 1 |
| Mikrofonindgang | Ingen |
| Pc lydindgang | Ja |
| PC-lydudgang | Ja |
| AUX-indgang | Ingen |
| Indgang til pc'en (D-Sub) | Ja |
| S/PDIF-udgang | Ingen |
| Fjernbetjening (IR) udgang | 1 |
| Mobile High-Definition Link (MHL) | Ingen |
| Fælles grænseflade (CI +) | Ingen |
| AC (strøm) indgang | Ja |
| DC-in-stik | Ingen |
| Understøtter forbrugerelektronik (CEC) | Ingen |
| Audio Return Channel (ARC) | Ingen |
| Netværk | |
| Smart TV | Ingen |
| Ethernet LAN | Ingen |
| Wi-Fi | Ingen |
| Ethernet LAN-porte (RJ-45) | 0 |
| Miracast | Ingen |
| Webbrowser | Ingen |
| Bluetooth | Ingen |
| Bluetooth Low Energy (BLE) | Ingen |
| Funktioner | |
| Støjniveau | 21 dB |
| Projiceringstilstande | Loft, Front, Bagside |
| Skærmvisning (OSD) | Ja |
| OSD-sprog | Arabisk, Forenklet kinesisk, Traditionelt kinesisk, Tjekkisk, Tysk, Hollandsk, Engelsk, Spansk, Fransk, Hindi, Ungarsk, Indonesisk, Italiensk, Japansk, Koreansk, Norsk, Polsk, Portugisisk, Rumænsk, Russisk, Svensk, Thai, Tyrkisk, Vietnamesisk |
| Antal OSD sprog | 27 |
| Trumotion-teknologi | Ingen |
| Skærm spejling | Ingen |
| Slumretimer | Ja |
| Luftfilter | Ingen |
| Elektronisk programguide (EPG) | Ingen |
| Separat H/V-synkronisering | Ja |
| Sammensat synkronisering | Ingen |
| Sync-on-green (SOG) | Ingen |
| HID support | Ingen |
| 4K Ultra HD-opskalering | Ingen |
| High Dynamic Range (HDR) understøttet | Ingen |
| Hoteltilstand | Ingen |
| Hybrid broadband TV udsendelse (HbbTV) | Ingen |
| Tekst-tv-funktioner | Ingen |
| Beskyttelse af adgangskode | Ja |
| Øjenbeskyttelse | Ingen |
| Støjreduktion | Ingen |
| Certificering | UL, c-UL, FCC, CE, CCC+CECP, KCC, NOM, PCT/CU/EAC, PSB, SABS, CB, Nemco/GS, KC |
| Multimedie | |
| Indbyggede højttaler(e) | Ja |
| Udgangseffekt (RMS) | 10 W |
| Antal indbyggede højttalere | 1 |
| Indbygget mikrofon | Ingen |
| TV-tuner, integreret | Ingen |
| Equalizer | Ingen |
| Logisk kanalnummer (LCN) | Ingen |
| Understøttede videoformater | 3GP, AVI, MOV, MP4, MPEG, MPG, RM, RMVB |
| Understøttede billedformater | BMP, JPEG XR, JPG, PNG |
| Understøttede lydformater | AAC, MP3, WAV, WMA |
| Design | |
| Produkttype | Standard-kast projektor |
| Markedspositionering | Hjemmebiograf |
| Produktfarve | Sort |
| Husmateriale | Plast |
| Placering | Desktop, Loft, Tripod |
| LED-indikatorer | Ja |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington |
| Display | |
| Indbygget skærm | Ingen |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforbrug (typisk) | 300 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (maks.) | 330 W |
| Strømforbrug (netværk standby) | 0,5 W |
| Strømforbrug (økonomi tilstand) | 220 W |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Automatisk slukning | Ja |
| Processor | |
| Indbygget processer | Ingen |
| Leverandørfunktioner | |
| Anbefalet køn | Ethvert køn |
| Montering påkrævet | Ingen |
| Batterier påkrævet | Ja |
| Batteritype | AA |
| Fakturaenhed | Ja |
| Bestilbar enhed | Ja |
| Vejledningssprog (ISO 639-format) | Flere |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 40 °C |
| Opbevaringstemperatur (T-T) | -10 - 60 °C |
| Driftshøjde | 0 - 3048 m |
| Vægt & størrelser | |
| Vægt | 3,2 kg |
| Bredde | 312,4 mm |
| Dybde | 236,2 mm |
| Højde | 124,5 mm |
| Pakkebredde | 398,8 mm |
| Pakkedybde | 337,8 mm |
| Pakkehøjde | 195,6 mm |
| Pakkevægt | 4,5 kg |
| Emballage indhold | |
| Fjernbetjening inkluderet | Ja |
| Fjernbetjeningstype | IR |
| Batterier inkluderet | Ingen |
| 3D-briller inkluderet | Ingen |
| Kabler inkluderet | Vekselstrøm, HDMI, IR |
| Bæretaske | Ingen |
| Brugervejledning | Ja |
| Monteringsbeslag inkluderet | Ingen |
| AC-adapter inkluderet | Ingen |
| Tripod inkluderet | Ingen |
| Andre funktioner | |
| RS-232-porte | 1 |
| Tekniske detaljer | |
| Overholdelse af bæredygtighed | Ja |
