POWERFUL. PRODUCTIVE. PORTABLE.

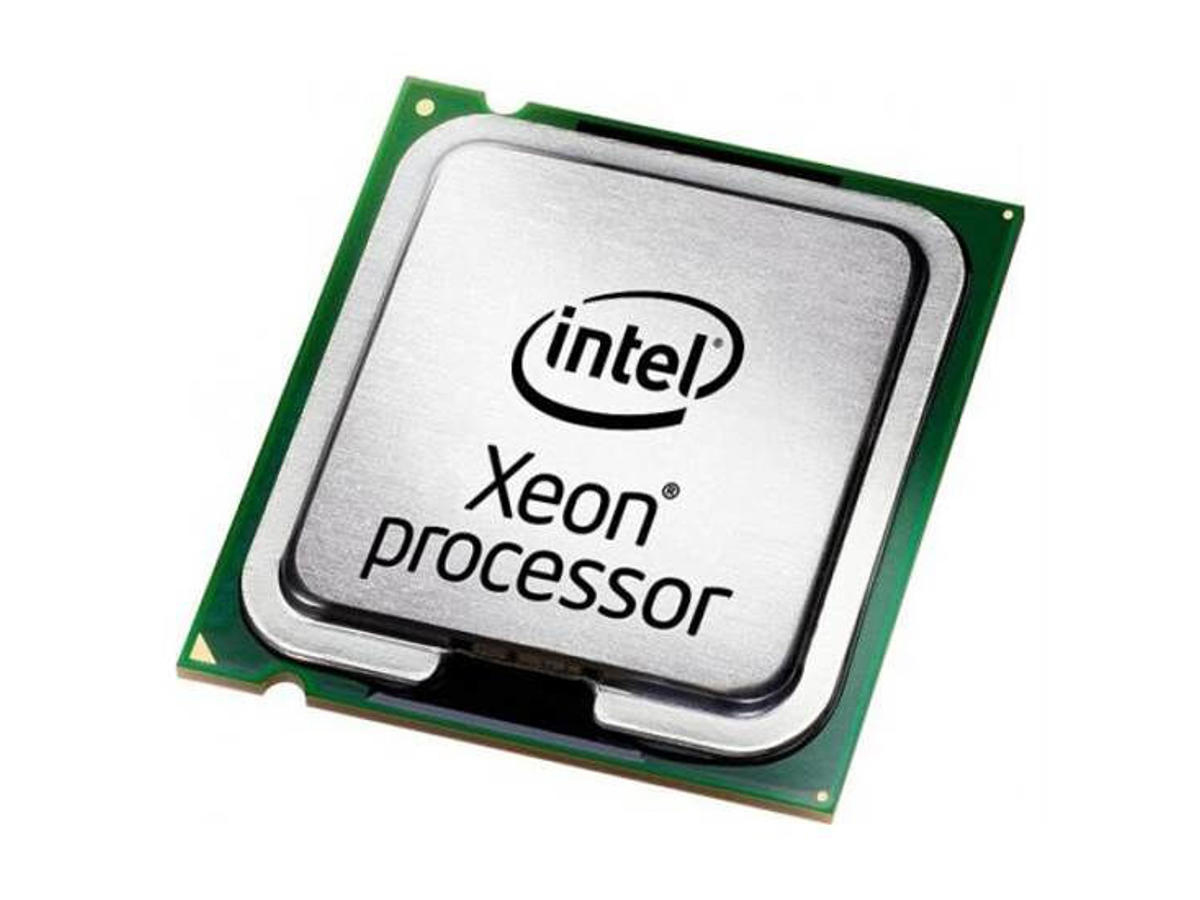

The Intel® Xeon® processor E3-1500M v6 product family, based on Intel’s newest wave of
14nm processors, delivers the responsive performance, high-speed I/O and enterprise-
grade features that professional power-users demand. With support for Error-Correcting
Code (ECC) memory, workstation application certifications, and Intel® vPro™ technology
security and manageability, Intel Xeon processor-based mobile workstations enable the
level of portable business computing that engineers, graphics professionals, and media
creators need and IT requires.
Responsive Performance and High-Speed I/O
The Intel Xeon processor E3-1500M v6 product family leverages the power efficiency of a new microarchitecture for faster performance than previous-generation processors.
Intelligent power management with Intel® Turbo Boost Technology 2.0 dynamically controls performance and power-for cores and graphics-boosting performance when it is needed, and saving energy when it counts. The Intel Xeon processor E3-1500M v6 product family supports four cores and eight threads with Intel® Hyper-Threading Technology
(Intel® HT Technology), enabling powerful, yet sleek, mobile workstations. Thunderbolt™ 3 Technology (with 40 Gbps bandwidth) is available on a number of mobile workstation designs alongside ample high-speed I/O, including up to 16 PCIe Gen3 lanes.
Manageability and Stability
Intel® Active Management Technology simplifies PC management and maximizes uptime for increased productivity and lower IT costs. Additionally, Intel® Stable Image Platform Program (SIPP) guarantees no image-breaking hardware/firmware changes and the extended availability of the platform.
Certified Applications
Optimized for a range of independent software vendor (ISV) applications, the Intel Xeon processor E3-1500M v6 product family delivers previously out-of-reach, entry-level workstation performance and visuals to designers, engineers, and media creators.
Workstation-Class Graphics Optimized for Professional Software
Built-in Intel® HD Graphics P630 delivers the hardware-accelerated imagery and media performance that professionals need for vector and bit map visualizations, video transcoding, and ultra-high definition (UHD) display. New enhancements in the processor silicon enable professional software to leverage the added graphics performance for superior portable workstation experiences. The Intel Xeon processor E3-1500M v6 product family enables an entirely new class of powerful, portable, and graphics-accelerated workstations.
Security and Reliability
The Intel Xeon processor E3-1500M v6 product family has been designed to enable hardware-enhanced security, including Intel® Software Guard Extensions (Intel® SGX) that can provide an additional level of hardware-based protection by putting data into a secure container on the platform, and Intel® Memory Protection Extensions (Intel®
MPX) that can help prevent buffer flow attacks. ECC memory support guards your system from potential crashes and changes in data with built-in protection that automatically detects and repairs errors that cause data corruption.
Experience the Best of Windows 10 in a Powerful Mobile Workstation
The premium performance of Intel Xeon processor-powered mobile workstations unleashes massive potential in Windows 10. With accelerated CPU and graphics performance, and enhanced security, manageability, and reliability features, your Windows 10 experience just
gets better. Blazing-fast startup and app switching gets you to work faster, boosting roductivity. And increased efficiency of both the Intel Xeon processor E3-1500M v6 product family and Windows 10 lets you enjoy the freedom to work longer wherever you want. -
Processor Processorserie Intel® Xeon® E3 v6, Intel Xeon E3-1500M v6 Processorkerner 4 Processor sokkel BGA 1440 Processor litografi 14 nm Pakketype Bakke Køler inkluderet Ingen Processorproducent Intel Processormodel E3-1505MV6 Processorens basisfrekvens 3 GHz Processor driftstilstande 64-bit Komponent til Server/arbejdsplads Processortråde 8 Systembus-hastighed 8 GT/s Processor boost frekvens 4 GHz Processor-cache 8 MB Processor cache type Smart cache Thermal Design Power (TDP) 45 W Konfigurerbar TDP-down 35 W Stepping B0 Bus type DMI3 Hukommelsesbåndbredde understøttet af processor (maks.) 37,5 GB/sek. Processor kodenavn Kaby Lake Processor kode SR32K Processor ARK ID 97463 Hukommelse Hukommelseskanaler To-kanals Maksimal intern hukommelse understøttet af processor 64 GB Hukommelsestyper understøttet af processor DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM Hukommelsesurhastigheder understøttet af processor 1600,2133,2400 MHz Fejlkorrigerende kode Ja Grafik On-board grafikkort Ja On-board grafikkort, model Intel® HD Graphics P630 Maksimalt indbygget grafikadapterhukommelse 1,7 GB Understøttelse af indbyggede grafikadapterudgange Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI Indbygget grafikadapter basefrekvens 350 MHz Indbygget grafikadapter dynamisk frekvens (maks.) 1100 MHz Antal understøttede skærme (indbygget grafik) 3 Understøttelse af indbygget 4K grafikadapter Ja Indbygget grafikadapter DirectX-version 12.0 Indbygget grafikadapter OpenGL-version 4.4 Indbygget grafikadapter maksimal opløsning (DisplayPort) 4096 x 2304 pixel Indbygget grafikadapter maksimal opløsning (eDP- integreret fladskærm) 4096 x 2304 pixel Indbygget grafikadapter maksimal opløsning (HDMI) 4096 x 2304 pixel Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (DisplayPort) 60 Hz Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (eDP-integreret fladskærm) 60 Hz Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (HDMI) 30 Hz Indbygget grafikadapter-ID 0x591D Funktioner Udfør deaktivering af bit Ja Idle status Ja Termiske overvågningsteknologier Ja Markedssegment Mobil Maksimalt antal PCI Express-kanaler 16 PCI Express slots version 3.0 PCI Express-konfigurationer 1x16, 2x8, 1x8+2x4 Understøttede instruktionssæt SSE4.1, SSE4.2, AVX 2.0 CPU-konfiguration (maks.) 1 Indlejret tilgængelige muligheder Ja PCI Express CEM-revision 3.0 Eksportkontrolklassisfikationsnummer (ECCN) 5A992C Automatiseret sporingssystem til vareklassificering (CCATS) G077159 Processor særlige funktioner Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Identity Protection Teknologi (Intel® IPT) Ja Intel® My WiFi Teknologi (Intel® MWT) Ja Intel® Smart Response Teknologi Ja Intel® Turbo Boost Teknologi 2.0 Intel® Quick Sync Video Teknologi Ja Intel® InTru™ 3D Teknologi Ja Intel® Clear Video HD Teknologi (Intel® CVT HD) Ja Intel® Flex Memory Access Ja Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Enhanced Intel SpeedStep Teknologi Ja Intel® Trusted Execution Teknologi Ja Intel® hukommelse beskyttelsesudvidelser (Intel® MPX) Ja Intel® Speed Shift Technology Ja Intel® Turbo Boost Technology 2.0-frekvens 4 GHz Intel®-udvidelser til transaktionssynkronisering Ja Intel® Enhanced Halt State Ja Intel® Clear Video Teknologi til MID (Intel® CVT for MID) Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® Sikker Nøgle Ja Intel® TSX-NI Ja Intel® Stabil Billede Platformsprogram (SIPP) Ja Intel® OS Guard Ja Intel® klar video teknologi Ja Intel® Software Guard Extensions (Intel® SGX) Ja Intel® HD Graphics Ja Intel® 64 Ja Intel® Identity Protection Technology version 1,00 Intel® Secure Key Technology version 1,00 Intel® Smart Response Technology version 1,00 Intel® Stable Billede Platform Program (SIPP) version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® TSX-NI-version 1,00 Konfliktfri processor Ja Berettigelse til Intel® vPro™ platform Ja Driftsbetingelser Tjunction 100 °C Tekniske detaljer Processor cache 8192 KB Produkttype System on Chip Understøttede hukommelsestyper DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM Maksimal grafikadapterhukommelse 1,7 GB Bus båndbredde 8 Bustype enheder GT/s Lanceringsdato Q1'17 Maksimal opløsning og opdateringshastighed (DisplayPort) 4096x2304@60Hz Maksimal opløsning og opdateringshastighed (HDMI) 4096x2304@30Hz Maksimal opløsning og opdateringshastighed (VGA) 4096x2304@60Hz Maksimal opløsning og opdateringsfrekvens (VGA) N/A Status Launched Maksimal hukommelse 64 GB Processor brand navn Intel Xeon Sidste ændring 63903513 Produktfamilie Intel Xeon Processor E3 v6 Family Intel® Speed Shift Technology version 1,00 Bushastighed 8 GT/s Processor ID 0x591D Status for servicering Baseline Servicing Logistik data Harmoniseret systemkode (HS) 85423119 Vægt & størrelser Processor-pakke størrelse 42mm x 28mm Andre funktioner Maksimal intern hukommelse 64 GB, 65536 MB Videoafkodning Ja Grafikudgang eDP/DP/HDMI/DVI
