The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection. -

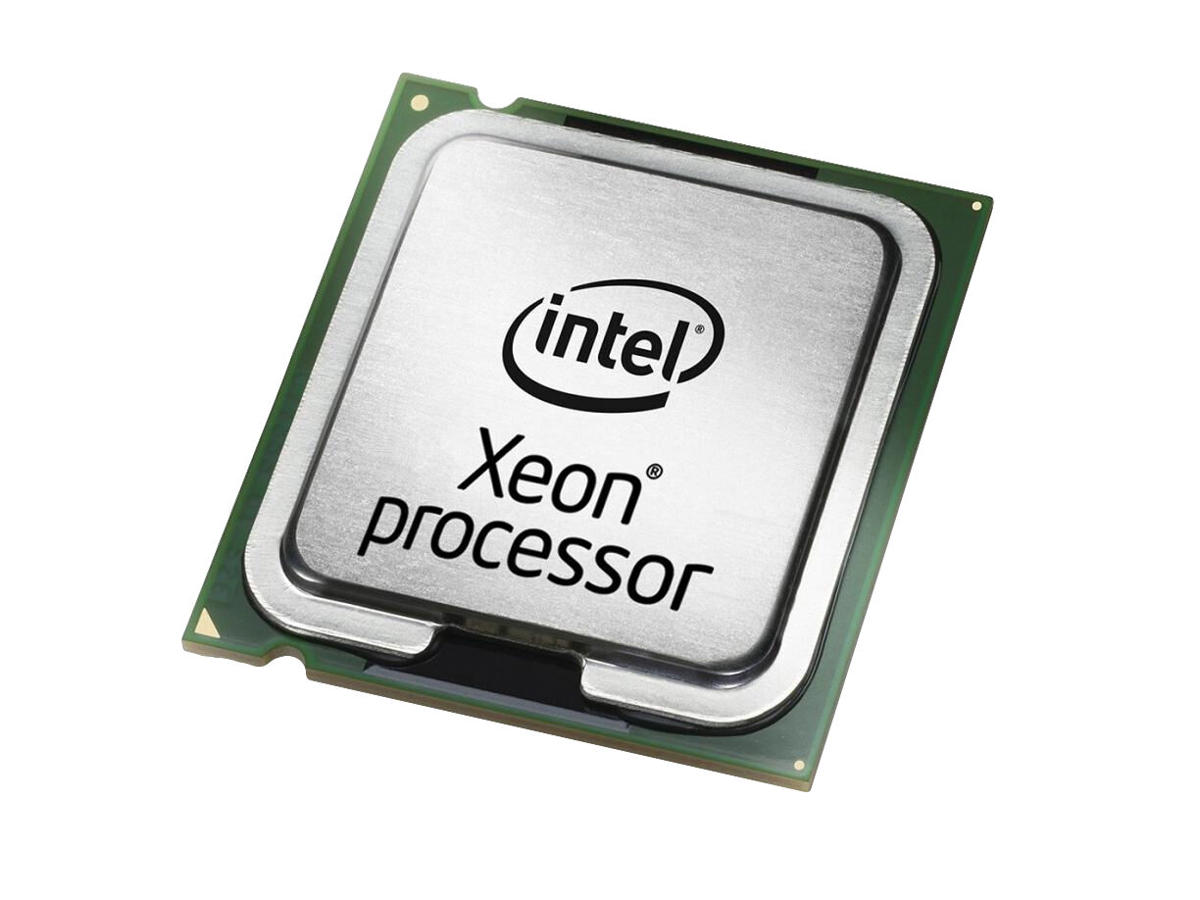

Processor Processorserie Intel® Xeon® E5 v4, Intel Xeon E5-2600 v4 Processorkerner 20 Processor sokkel LGA 2011-v3 Processor litografi 14 nm Pakketype Bakke Køler inkluderet Ingen Processorproducent Intel Processormodel E5-2698V4 Processorens basisfrekvens 2,2 GHz Processor driftstilstande 64-bit Komponent til Server/arbejdsplads Processortråde 40 Systembus-hastighed 9,6 GT/s Processor boost frekvens 3,6 GHz Processor-cache 50 MB Processor cache type Smart cache Thermal Design Power (TDP) 135 W VID spændingsområde 0 - 0 V Stepping B0 Bus type QPI Antal QPI-lins 2 Hukommelsesbåndbredde understøttet af processor (maks.) 76,8 GB/sek. Processor kodenavn Broadwell Processor kode SR2JW Processor ARK ID 91753 Hukommelse Hukommelseskanaler Fire-kanals Maksimal intern hukommelse understøttet af processor 1,53 TB Hukommelsestyper understøttet af processor DDR4-SDRAM Hukommelsesurhastigheder understøttet af processor 1600,1866,2133,2400 MHz Fejlkorrigerende kode Ja Grafik On-board grafikkort Ingen Funktioner Udfør deaktivering af bit Ja Idle status Ja Termiske overvågningsteknologier Ja Markedssegment Server Maksimalt antal PCI Express-kanaler 40 PCI Express slots version 3.0 Understøttede instruktionssæt AVX 2.0 Skalerbarhed 2S Fysisk adresseudvidelse (PAE) Ja CPU-konfiguration (maks.) 2 Indlejret tilgængelige muligheder Ingen Fysisk adresse udvidelse (PAE) 46 Bit PCI Express CEM-revision 3.0 Eksportkontrolklassisfikationsnummer (ECCN) 5A992C Automatiseret sporingssystem til vareklassificering (CCATS) G077159 Processor særlige funktioner Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Identity Protection Teknologi (Intel® IPT) Ingen Intel® Turbo Boost Teknologi 2.0 Intel® Flex Memory Access Ingen Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Enhanced Intel SpeedStep Teknologi Ja Intel® Trusted Execution Teknologi Ja Intel® Turbo Boost Technology 2.0-frekvens 3,6 GHz Intel®-udvidelser til transaktionssynkronisering Ja Intel® Enhanced Halt State Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® Demand Based Switching Ja Intel® Sikker Nøgle Ja Intel® TSX-NI Ja Intel® OS Guard Ja Intel® 64 Ja Intel® Identity Protection Technology version 0,00 Intel® Secure Key Technology version 1,00 Intel® Virtualization Technology (VT-x) Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® TSX-NI-version 1,00 Konfliktfri processor Ja Berettigelse til Intel® vPro™ platform Ja Driftsbetingelser Tcase 90 °C Tekniske detaljer Processor cache 51200 KB Produkttype Processor Understøttede hukommelsestyper DDR4-SDRAM Bus båndbredde 9,6 Bustype enheder GT/s Lanceringsdato Q1'16 Status Launched Processor brand navn Intel Xeon Sidste ændring 63903513 Produktfamilie Intel Xeon Processor E5 v4 Family Bushastighed 9.6 GT/s Status for servicering End of Servicing Updates Dato for afslutning af serviceopdateringer Thursday, June 30, 2022 Logistik data Harmoniseret systemkode (HS) 85423119 Vægt & størrelser Processor-pakke størrelse 45mm x 52.5mm Andre funktioner Kapabilitet Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR Maksimal intern hukommelse 1,5 TB, 1572864 MB
