Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel® Deep Learning Boost (Intel® DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Intel® Volume Management Device (VMD)
Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives. -

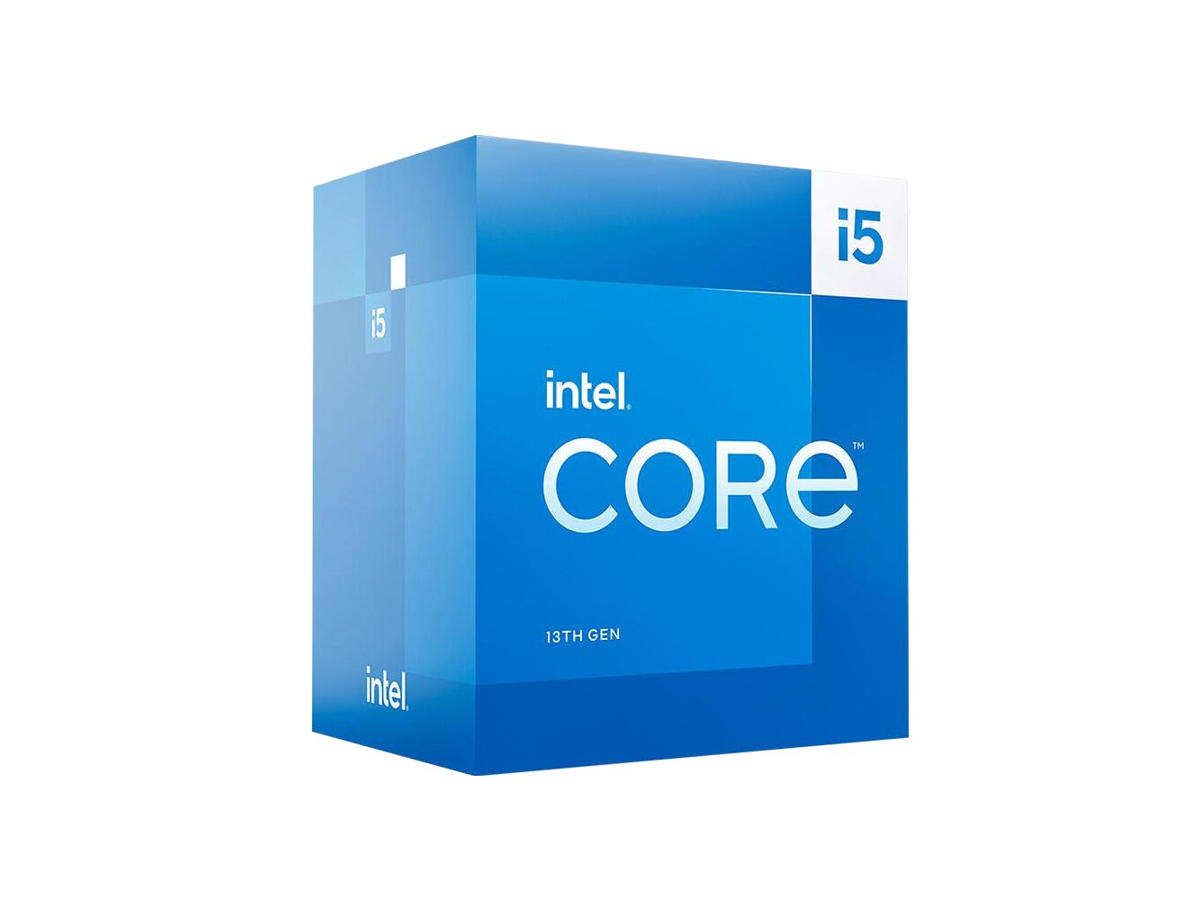

Processor Processorserie Intel® Core™ i5 Processorkerner 10 Processor sokkel LGA 1700 Pakketype Kasse Processorproducent Intel Processormodel i5-13400F Processor driftstilstande 64-bit Processorgeneration 13th gen Intel® Core™ i5 Processortråde 16 Performance-kerner 6 Effektive kerner 4 Processor boost frekvens 4,6 GHz Boostfrekvens af performancekerne 4,6 GHz Basisfrekvens af performancekerne 2,5 GHz Boostfrekvens af effektiv kerne 3,3 GHz Basisfrekvens af effektiv kerne 1,8 GHz Processor-cache 20 MB Processor cache type Smart cache Processor base power 65 W Maksimal turbokraft 148 W Maksimalt antal DMI-baner 8 Processor kodenavn Raptor Lake Processor ARK ID 230501 Hukommelse Hukommelseskanaler To-kanals Maksimal intern hukommelse understøttet af processor 192 GB Hukommelsestyper understøttet af processor DDR4-SDRAM, DDR5-SDRAM Hukommelsesbåndbredde (maks.) 76,8 GB/sek. Grafik On-board grafikkort Ingen Diskret grafikadapter Ingen On-board grafikkort, model Ikke tilgængelig Diskret grafikadaptermodel Ikke tilgængelig Funktioner Udfør deaktivering af bit Ja Idle status Ja Termiske overvågningsteknologier Ja Markedssegment Desktop Brugsbetingelser PC/Client/Tablet Maksimalt antal PCI Express-kanaler 20 PCI Express slots version 4.0, 5.0 PCI Express-konfigurationer 1x16+1x4, 2x8+1x4 Understøttede instruktionssæt AVX 2.0, SSE4.1, SSE4.2 Skalerbarhed 1S CPU-konfiguration (maks.) 1 Indlejret tilgængelige muligheder Ingen Direct Media Interface (DMI) revision 4.0 Eksportkontrolklassisfikationsnummer (ECCN) 5A992C Automatiseret sporingssystem til vareklassificering (CCATS) 740.17B1 Processor særlige funktioner Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja Intel® Turbo Boost Teknologi 2.0 Intel® AES Nye Instruktioner (Intel® AES-NI) Ja Enhanced Intel SpeedStep Teknologi Ja Intel® Speed Shift Technology Ja Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Ja Intel® CET (Control-flow Enforcement Technology) Ja Intel® Thread Director Ja Intel® VT-x with Extended Page Tables (EPT) Ja Intel® Sikker Nøgle Ja Intel® OS Guard Ja Intel® 64 Ja Intel® Virtualization Technology (VT-x) Ja Intel® Virtualization Technology for Directed I/O (VT-d) Ja Intel® Turbo Boost Max Teknologi 3.0 Ingen Intel® Boot Guard Ja Intel® Deep Learning Boost (Intel® DL Boost) on CPU Ja Intel® Volume Management Device (VMD) Ja Mønsterbaseret eksekveringskontrol (MBE) Ja Intel® Standard Manageability (ISM) Ja Driftsbetingelser Tjunction 100 °C Logistik data Harmoniseret systemkode (HS) 8542310001 Vægt & størrelser Processor-pakke størrelse 45 x 37.5 mm Andre funktioner Maksimal intern hukommelse 192 GB
