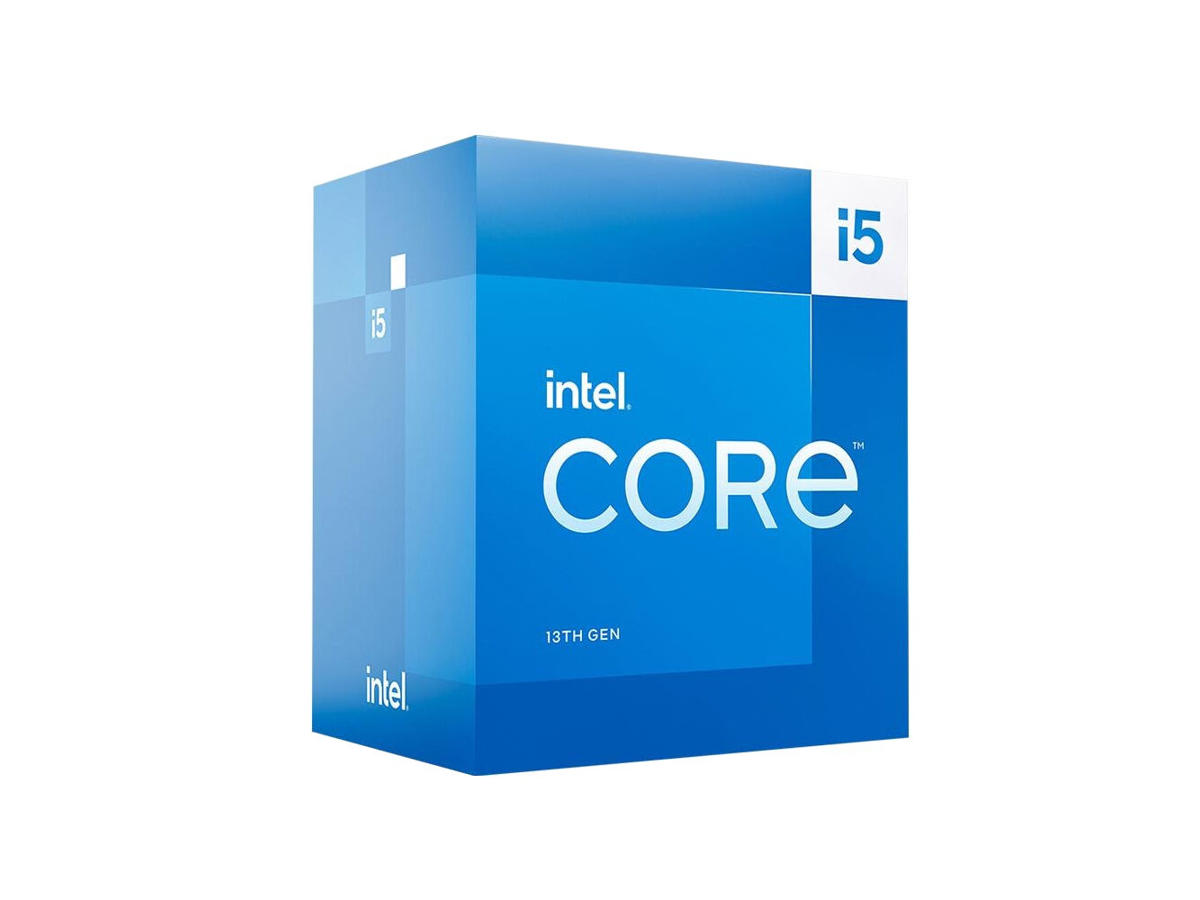

Intel Core i5-13400 processor 20 MB Smart cache Kasse
Varenummer: BX8071513400SRMBP
.
DKK 2.737,50 / Stk
DKK 2.190,00 ekskl. moms
  •
Intel Core i5-13400. Processorserie: Intel® Core™ i5, Processor sokkel: LGA 1700, Pakketype: Kasse. Hukommelseskanaler: To-kanals, Maksimal intern hukommelse understøttet af processor: 192 GB, Hukommelsestyper understøttet af processor: DDR4-SDRAM, DDR5-SDRAM. On-board grafikkort, model: Intel UHD Graphics 730, Understøttelse af indbyggede grafikadapterudgange: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, Indbygget grafikadapter basefrekvens: 300 MHz. Markedssegment: Desktop, Brugsbetingelser: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Processor-pakke størrelse: 45 x 37.5 mm


Mere information

  • Intel® Gaussian & Neural Accelerator
    Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

    Intel® Deep Learning Boost (Intel® DL Boost)
    A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

    Intel® Speed Shift Technology
    Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

    Intel® Turbo Boost Technology
    Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

    Intel® 64
    Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

    Idle States
    Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

    Thermal Monitoring Technologies
    Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

    Intel® Volume Management Device (VMD)
    Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

  • Processor
    Processorserie Intel® Core™ i5
    Processorkerner 10
    Processor sokkel LGA 1700
    Pakketype Kasse
    Processorproducent Intel
    Processormodel i5-13400
    Processor driftstilstande 64-bit
    Processorgeneration 13th gen Intel® Core™ i5
    Processortråde 16
    Performance-kerner 6
    Effektive kerner 4
    Processor boost frekvens 4,6 GHz
    Boostfrekvens af performancekerne 4,6 GHz
    Basisfrekvens af performancekerne 2,5 GHz
    Boostfrekvens af effektiv kerne 3,3 GHz
    Basisfrekvens af effektiv kerne 1,8 GHz
    Processor-cache 20 MB
    Processor cache type Smart cache
    Processor base power 65 W
    Maksimal turbokraft 154 W
    Maksimalt antal DMI-baner 8
    Processor kodenavn Raptor Lake
    Processor ARK ID 230495
    Hukommelse
    Hukommelseskanaler To-kanals
    Maksimal intern hukommelse understøttet af processor 192 GB
    Hukommelsestyper understøttet af processor DDR4-SDRAM, DDR5-SDRAM
    Hukommelsesbåndbredde (maks.) 76,8 GB/sek.
    Grafik
    On-board grafikkort Ja
    Diskret grafikadapter Ingen
    On-board grafikkort, model Intel UHD Graphics 730
    Diskret grafikadaptermodel Ikke tilgængelig
    Understøttelse af indbyggede grafikadapterudgange Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
    Indbygget grafikadapter basefrekvens 300 MHz
    Indbygget grafikadapter dynamisk frekvens (maks.) 1550 MHz
    Antal understøttede skærme (indbygget grafik) 4
    Indbygget grafikadapter DirectX-version 12.0
    Indbygget grafikadapter OpenGL-version 4.5
    Indbygget grafikadapter maksimal opløsning (DisplayPort) 7680 x 4320 pixel
    Indbygget grafikadapter maksimal opløsning (eDP- integreret fladskærm) 5120 x 3200 pixel
    Indbygget grafikadapter maksimal opløsning (HDMI) 4096 x 2160 pixel
    Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (DisplayPort) 60 Hz
    Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (eDP-integreret fladskærm) 120 Hz
    Opdateringshastighed for indbygget grafikadapter ved maksimal opløsning (HDMI) 60 Hz
    Indbygget grafikadapter-ID 0x4682/0xA782
    Antal udførelsesenheder 24
    Multi-format codec-motorer 1
    Funktioner
    Udfør deaktivering af bit Ja
    Idle status Ja
    Termiske overvågningsteknologier Ja
    Markedssegment Desktop
    Brugsbetingelser PC/Client/Tablet
    Maksimalt antal PCI Express-kanaler 20
    PCI Express slots version 4.0, 5.0
    PCI Express-konfigurationer 1x16+1x4, 2x8+1x4
    Understøttede instruktionssæt AVX 2.0, SSE4.1, SSE4.2
    Skalerbarhed 1S
    CPU-konfiguration (maks.) 1
    Indlejret tilgængelige muligheder Ja
    Direct Media Interface (DMI) revision 4.0
    Eksportkontrolklassisfikationsnummer (ECCN) 5A992C
    Automatiseret sporingssystem til vareklassificering (CCATS) 740.17B1
    Processor særlige funktioner
    Intel® Hyper Threading Teknologi (Intel® HT Technology) Ja
    Intel® Turbo Boost Teknologi 2.0
    Intel® Quick Sync Video Teknologi Ja
    Intel® Clear Video HD Teknologi (Intel® CVT HD) Ja
    Intel® AES Nye Instruktioner (Intel® AES-NI) Ja
    Enhanced Intel SpeedStep Teknologi Ja
    Intel® Speed ​​Shift Technology Ja
    Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 Ja
    Intel® CET (Control-flow Enforcement Technology) Ja
    Intel® Thread Director Ja
    Intel® VT-x with Extended Page Tables (EPT) Ja
    Intel® Sikker Nøgle Ja
    Intel® OS Guard Ja
    Intel® 64 Ja
    Intel® Virtualization Technology (VT-x) Ja
    Intel® Virtualization Technology for Directed I/O (VT-d) Ja
    Intel® Turbo Boost Max Teknologi 3.0 Ingen
    Intel® Boot Guard Ja
    Intel® Deep Learning Boost (Intel® DL Boost) on CPU Ja
    Intel® Volume Management Device (VMD) Ja
    Mønsterbaseret eksekveringskontrol (MBE) Ja
    Intel® Standard Manageability (ISM) Ja
    Driftsbetingelser
    Tjunction 100 °C
    Logistik data
    Harmoniseret systemkode (HS) 8542310001
    Vægt & størrelser
    Processor-pakke størrelse 45 x 37.5 mm
    Andre funktioner
    Maksimal intern hukommelse 192 GB
