Extend Wired and Wireless Network Using Electrical System

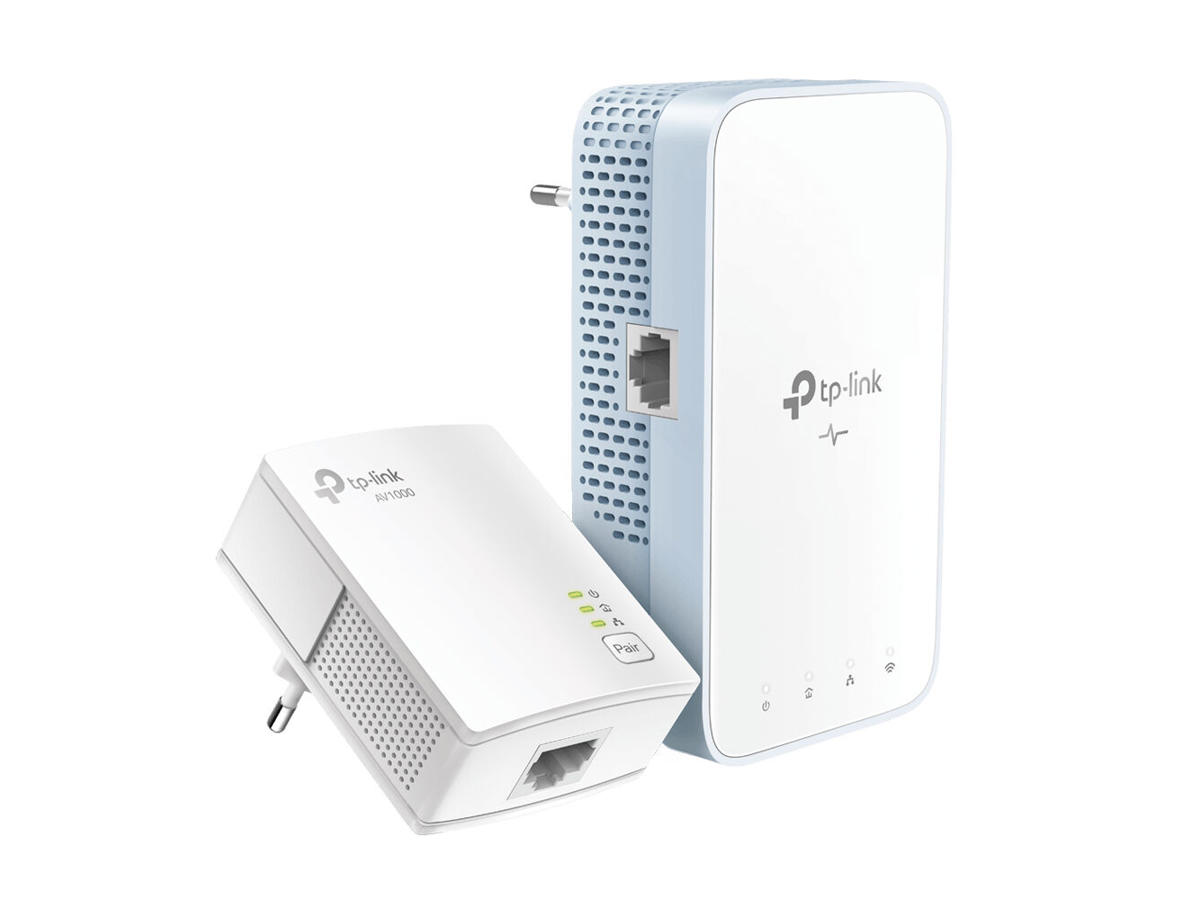

TL-WPA1000 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders
> Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA1000 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
AC1200 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
Plug and Play, No Configuration Required
Connect the TL-PA7017
to your router.
Plug the TL-WPA7517 into a wall socket
in the room you need network.
Let’s enjoy the wired or wireless
internet service.
Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.
Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
View real-time powerline speed
LED control (also controlled by LED On/Off button)
Guest network
| Præstation | |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Netværksstandarder | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Strømstik | Type C |
| Indbygget stikkontakt | Ja |
| Ethernet LAN-grænsefladetype | Gigabit Ethernet |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Ethernet LAN-porte (RJ-45) | 1 |
| Bedste Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standarder | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Sikkerhedsalgoritmer | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maksimal driftstilstand | 300 m |
| Plug and play | Ja |
| Design | |
| Produktfarve | Hvid |
| Antenne type | Intern |
| LED-indikatorer | Ja |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Understøttede Linux-operativsystemer | Ja |
| Mac kompabilitet | Ja |
| Understøttede Mac-operativsystemer | MacOS |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Godkendelser | |
| Compliance-certifikater | CE, RoHS |
| Emballeringsdata | |
| Pakkebredde | 230 mm |
| Pakkedybde | 190 mm |
| Pakkehøjde | 100 mm |
| Pakkevægt | 580 g |
| Emballage indhold | |
| Antal pr. pakke | 2 stk |
| Kabler inkluderet | LAN (RJ-45) |
