Extend AX1500 Wi-Fi and Gigabit Networking to Every Room

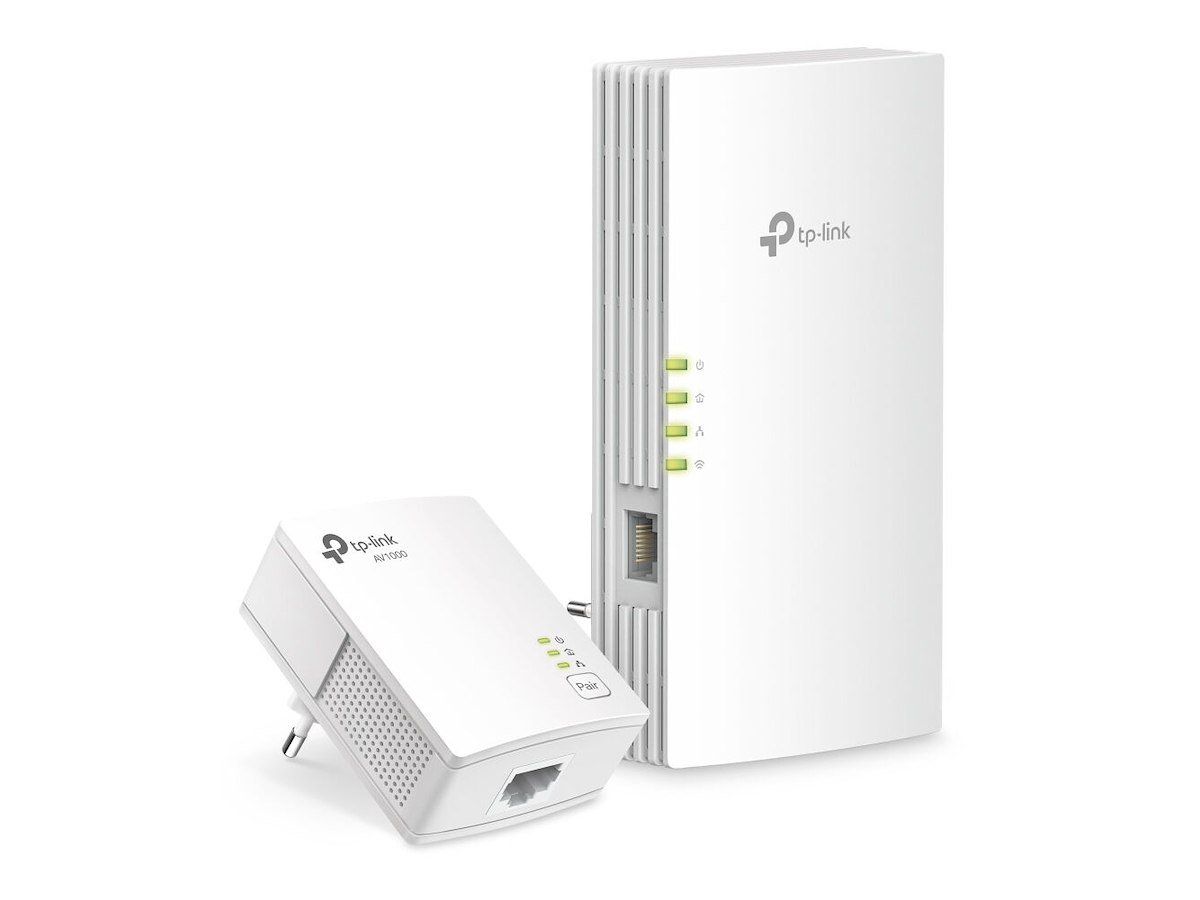

AV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit
Extend Wired and Wireless Network Using Electrical System
TL-WPA7817 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup. Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters†. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
| Præstation | |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Netværksstandarder | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Strømstik | Type E |
| Indbygget stikkontakt | Ja |
| Ethernet LAN-grænsefladetype | Gigabit Ethernet |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Ethernet LAN-porte (RJ-45) | 1 |
| Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi-bånd | Dual-band (2,4 GHz / 5 GHz) |
| WLAN dataoverførselshastighed (første bånd) | 300 Mbit/s |
| WLAN dataoverførselshastighed (anden bånd) | 1201 Mbit/s |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Sikkerhedsalgoritmer | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maksimal driftstilstand | 300 m |
| Plug and play | Ja |
| Design | |
| Produktfarve | Hvid |
| Antenne type | Intern |
| LED-indikatorer | Ja |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Understøttede Linux-operativsystemer | Ja |
| Mac kompabilitet | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Vægt & størrelser | |
| Bredde | 78 mm |
| Dybde | 33,9 mm |
| Højde | 149 mm |
| Godkendelser | |
| Compliance-certifikater | CE, RoHS |
| Emballeringsdata | |
| Pakketype | Kasse |
| Emballage indhold | |
| Antal pr. pakke | 2 stk |
| Hurtig installationsvejledning | Ja |
| Kabler inkluderet | LAN (RJ-45) |
