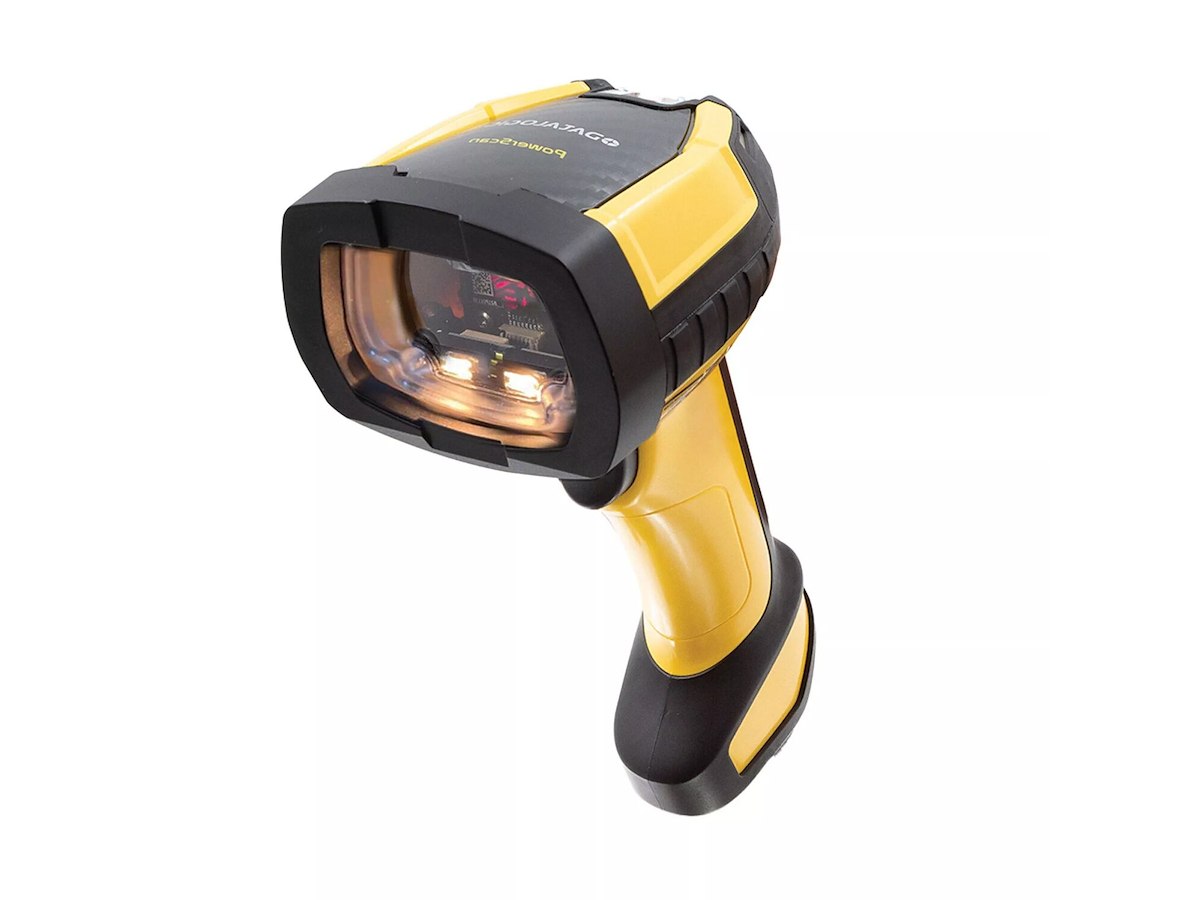

Datalogic PM9600-HP433RBK10 stregkodelæser Håndholdt stregkodelæser 1D/2D Laser Sort, Gul
Varenummer: PM9600-HP433RBK10
.
DKK 12.199,00 / Stk
DKK 9.759,20 ekskl. moms
  •
Datalogic PM9600-HP433RBK10. Type: Håndholdt stregkodelæser, Scanner type: 1D/2D, Sensortype: Laser. Forbindelsesteknologi: Kabel & trådløs, Standard grænseflader: USB, Driftsfrekvens: 433 MHz. Produktfarve: Sort, Gul, Kode for international beskyttelse (IP): IP65, IP67, Beskyttelsesfunktioner: Smudsafvisende, Stødsikker, Støvresistent, Beskyttelse mod elektrostatisk udladning (ESD), Vandtæt. Strømkilde type: Batteri, Strømforbrug (typisk): 15 W, Batterispænding: 3,7 V. Vægt: 425 g, Bredde: 79 mm, Dybde: 140 mm


Mere information

Ofte købt sammen med
  • PowerScan PM9600-HP, High Performance, 433MHz, USB Kit (Kit includes Scanner PM9600-HP, cradle BC9630-433, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0940)

    Bullet Proof Your Traceability Targets
    The 9600 is the range-topping handheld industrial scanner in the best-selling PowerScan series from Datalogic, helping you smash your traceability targets. Achieving full traceability in manufacturing, intralogistics and retail environments is the number one priority faced by businesses today when faced with fulfilling consumer delivery demands. You need a tough device for handling the toughest jobs. This IP65 and IP67 rated scanner will withstand 2.5 m drops onto hard concrete, and the trigger is tested to resist up to 10 million hits. Even though it is impervious to dirt and water, it is wirelessly charged in its cradle. No more device failure due to grimy or corroded charging contacts. Maximum performance whilst protecting your bottom line at a great price!

    Future Proof Your Connectivity
    The PowerScan 9600 series of 2D barcode scanner features all the standard benefits associated with Datalogic industrial handheld scanners, but now with embedded industrial connectivity, allowing simple interfacing with a PC, Industrial PC, Tablet, or PLCs. There is no need for third part devices as the communication modules are exchangeable in the cradle, and inline for the wired version. The plug and play architecture helps to maintain network integrity, and is easily configurable between RS-232, USB, USB-C, Ethernet, Ethernet I/P or Profinet. Any future standards or changes to your networking setup are easy to switch to within a matter of minutes.

    Putting Power into Your Hands
    The 9600 rugged barcode scanner range offers three different performance levels, depending on your application, with read rates 20% faster than competitive products. The Standard Range model is equipped with a single camera for capturing low density 1D and 2D codes within normal reading ranges. For longer distance reading, choose the High Performance reader with a dual camera. Finally, and unique to Datalogic, is the Document Capture model which will take color images for quality control or signatory confirmation. As with all Datalogic scanners, the PowerScan 9600 series provides gentle white light illumination and outputs a successful ‘Green Spot’ for a successful read, even on damaged or dirty barcodes, all at a great price for handheld scanners!

    Taking Wireless to The Next Level
    Industrial and warehouse environments are typically harsh and the use of large numbers of Wi-Fi and Bluetooth® equipped devices in an area can affect performance and result in downtime. Datalogic recommends the use of their proprietary narrow-band radio system – STAR. With no possibility of interference with other networks and an extended communication range that is completely bi-directional, you are guaranteed error free operations. Unlike Bluetooth, where there is a maximum of 7 devices linked to a single cradle, STAR more than doubles this to 16 devices. Operators can freely walk around large working areas with an industrial wireless barcode scanner, scanning items, inputting data from the built-in keypad, and gaining immediate feedback from the host on the large, bright OLED display.

    Ensuring Even Better Cost of Ownership
    With growing emphasis on long term device performance, Datalogic has equipped several cost-saving features in the PowerScan 9600 series. Smart battery technology maximizes and optimizes charging efficiency, providing an indication of battery health. The cradle also includes wireless charging capability, eliminating the possibility of poor or no charging due to damaged or dirty contacts, which is the number one failure in traditional cradle setups. These new cradles even provide information on device health, enabling you to schedule predictive maintenance, thus avoiding any unplanned downtime because of unexpected failure. Your total cost of ownership is reduced significantly thanks to these simple but powerful additions, with wireless charging providing a 15% increase. The PowerScan 9600 series is the easy choice when it comes to top flexibility, extreme reliability, and pricing regarding handheld scanners.

  • Scanning
    Type Håndholdt stregkodelæser
    Scanner type 1D/2D
    Sensortype Laser
    Understøtter lineær (1D) stregkoder China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, GS1 DataBar, PDF417, UPC-A, UPC-E
    Understøtter matrix (2D) stregkoder Aztec Code, Data matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
    Optisk sensoropløsning (B x H) 1280 x 800 pixel
    Lysniveauer (direkte sollys) 0 - 100000 Lux
    Bølgelængde 630 nm
    Tilt læsningsvinkel 0 - 360°
    Pitch læsningsvinkel -52 - 52°
    Yaw læsningsvinkel -52 - 52°
    Porte & Grænseflader
    Forbindelsesteknologi Kabel & trådløs
    Standard grænseflader USB
    Driftsfrekvens 433 MHz
    Præstation
    Produktfarve Sort, Gul
    Kode for international beskyttelse (IP) IP65, IP67
    Beskyttelsesfunktioner Smudsafvisende, Stødsikker, Støvresistent, Beskyttelse mod elektrostatisk udladning (ESD), Vandtæt
    LED-indikatorer Ja
    Lydalarm Ja
    Printkontrast 15%
    Vibrationsfunktion Ja
    Strømstyring
    Strømkilde type Batteri
    Strømforbrug (typisk) 15 W
    Antal understøttede batterier 1
    Batterispænding 3,7 V
    Læsninger pr. opladning, antal 80000
    Opladningstid 3,2 t
    Indgangsspænding 5 V
    Udgangsspænding for vekselstrømsadapter 5 V
    Strømforbrug 480 mA
    Vægt & størrelser
    Vægt 425 g
    Bredde 79 mm
    Dybde 140 mm
    Højde 198 mm
    Emballeringsdata
    Ekstern strømadapter Ja
    Kabler inkluderet Vekselstrøm, USB
    Opladeenhed Ja
    Driftsbetingelser
    Driftstemperatur (T-T) -20 - 50 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 0 - 95%
    Batteri
    Batteriteknologi Lithium-Ion (Li-Ion)
    Batterikapacitet 3350 mAh
    Tekniske detaljer
    Compliance-certifikater REACH, RoHS
    Logistik data
    Harmoniseret systemkode (HS) 84716070
