MC-POEADAPTER22W-USB-C is a network power adapter designed based on the IEEE802 .3at standard. The output is a standard Type-C interface, which can provide 5V/2.6A 9V/1.75A 12V/1.45A 15V/1.37A 20V/1.15A power supply and 100Mbps Internet data transmission.

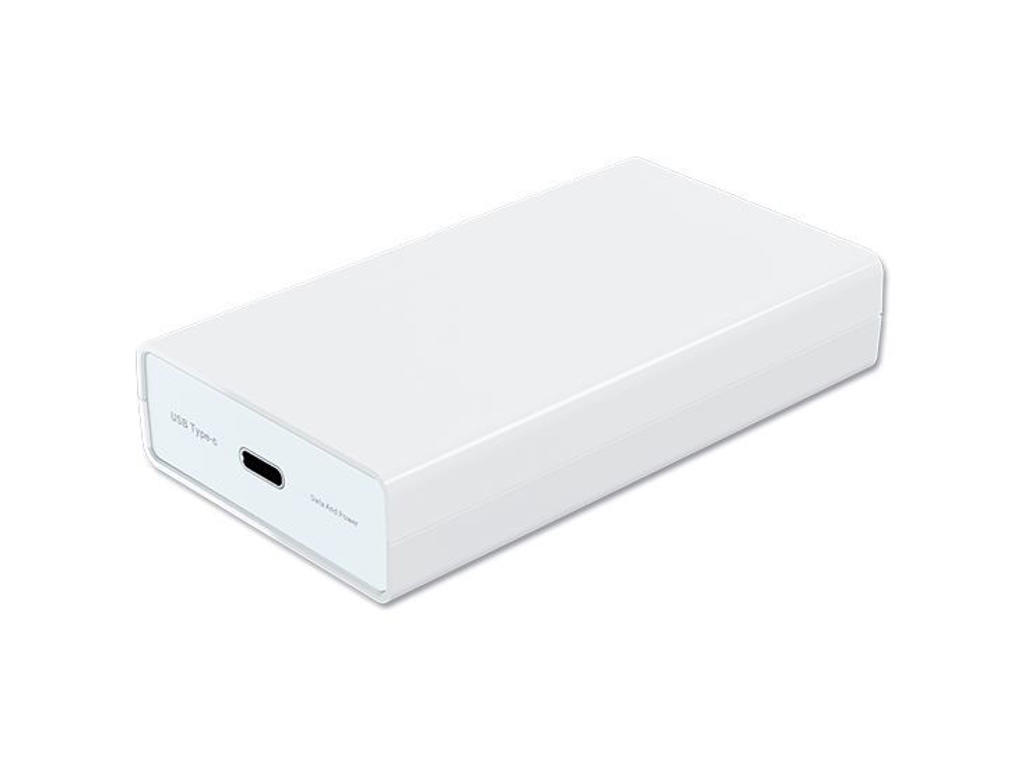

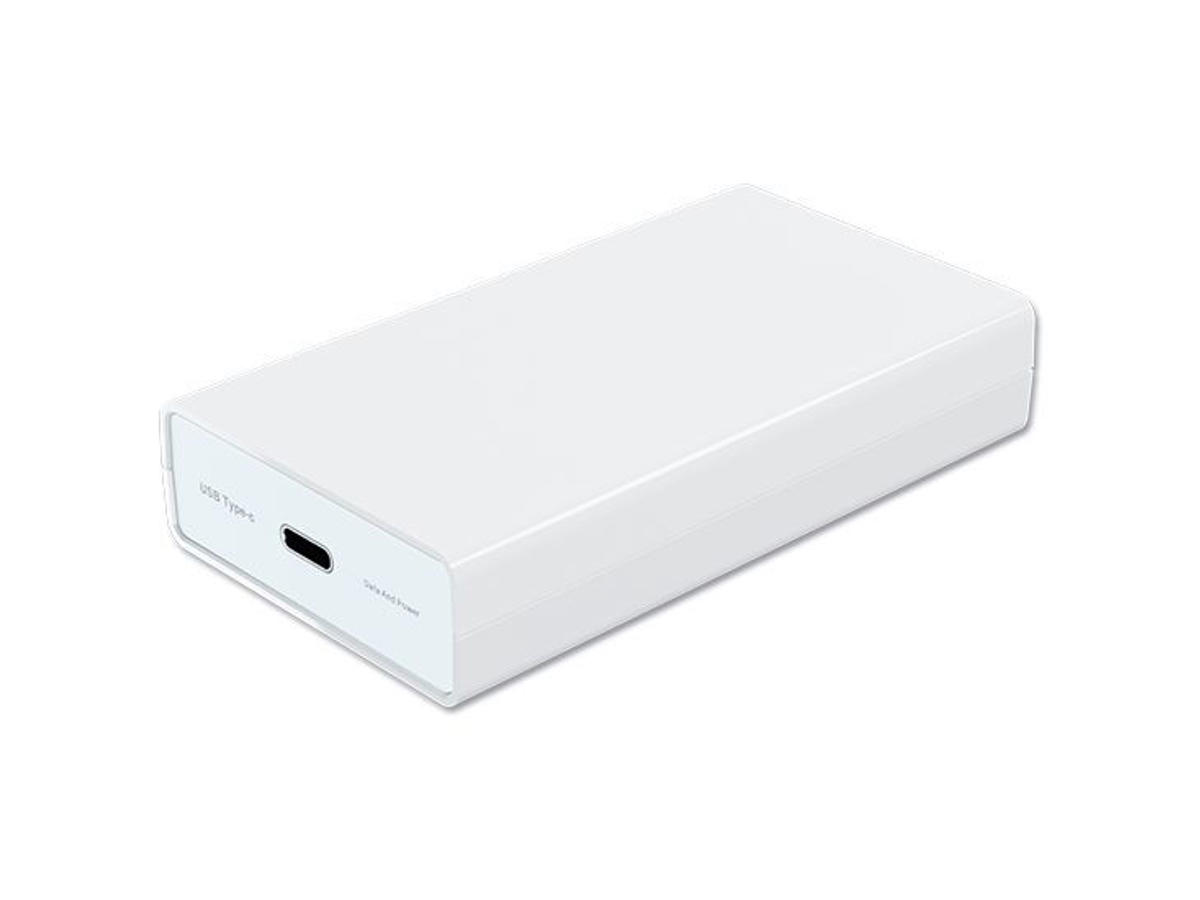

MC-POEADAPTER22W-USB-C is designed with a small volume white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened for use.
The input and output of the device do not exceed the safe voltage of 57V, and there is no need for electric shock protection. The product has passed the EU CE certification.
The device needs to be used in a wired network environment that supports IEEE802.3at, plug and play without configuration, and the output supports PD3.0 fast charging protocol, which can provide continuous power supply and stable network connection to low-power mobile devices such as mobile phones, game consoles, and tablet computers.
| Netværk | |
| Ethernet-grænsefladetype | Hurtigt ethernet |
| Ethernet LAN-datahastigheder | 100 Mbit/s |
| Kabelteknologi | 10/100 |
| Strøm over Ethernet (PoE) | Ja |
| Netværksstandarder | IEEE 802.3at |
| Understøttede kabeltyper | Cat5 |
| Funktioner | |
| Produktfarve | Hvid |
| Husmateriale | Plast |
| Nem at installere | Ja |
| USB strømforsyning | Ja |
| USB strømforsyning revision | 3.0 |
| Hurtig opladning | Ja |
| Maksimal driftstilstand | 100 m |
| LED-indikatorer | Ja |
| Kode for international beskyttelse (IP) | IP40 |
| Porte & Grænseflader | |
| RJ-45 indgangs-porte | 1 |
| Antal USB type-C-porte | 1 |
| Strømstyring | |
| Power over Ethernet (PoE) spænding | 20 V |
| Udgangseffekt | 60 W |
| Indgangsspænding | 44-57 V |
| Udgangsstrøm | 3 A |
| Godkendelser | |
| Compliance-certifikater | CE |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -20 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 - 80% |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
| Driftshøjde | 0 - 2000 m |
| Vægt & størrelser | |
| Bredde | 51 mm |
| Dybde | 18,5 mm |
| Højde | 91 mm |
| Vægt | 63 g |
| Emballeringsdata | |
| Pakkevægt | 70 g |
| Logistik data | |
| Oprindelsesland | Kina |
| Bæredygtighed | |
| Overholdelse af bæredygtighed | Ja |
