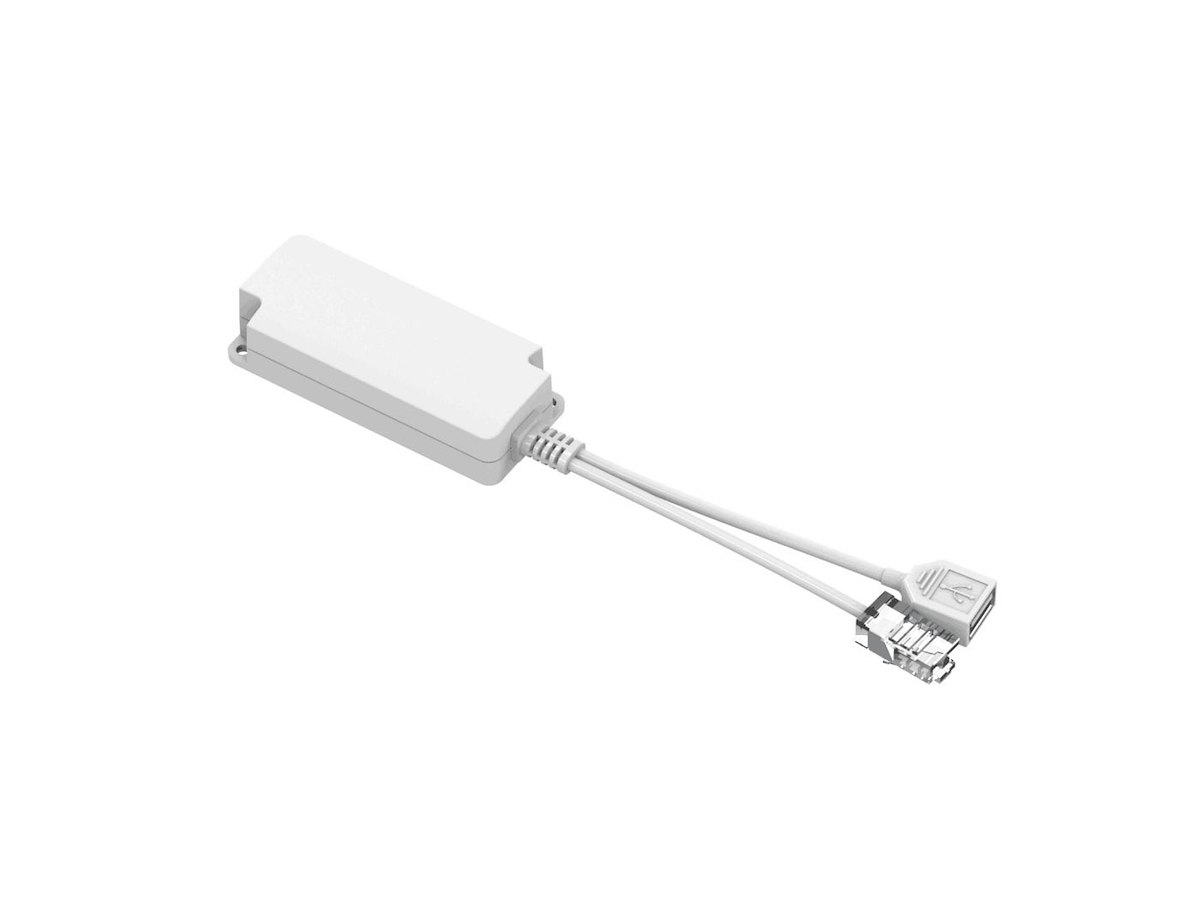

MC-POESPLITTER-CW is an indoor rated PoE USB-A splitter specially
designed for complex backhaul and networking
application. Enclosed in an IP40 fire retardant plastic
case with compact design.
It works as a converter to get power and data from PoE
injector or PoE Switch of 802.3af/at over RJ45 connector
then separate power and data to PDs.
The output power is 5Vdc, 2.5A(max) via USB-A female
connector to PDs. Such as computers, iPad, Macbook,
Google Wifi, Tablet PC, and other USB-C devices.
PoE signal into a separate data signal at 10/100Mbps.
For planning purposes, the effective distance is 100 meters
via Cat5e/Cat6 cables from Ethernet data source to PD
