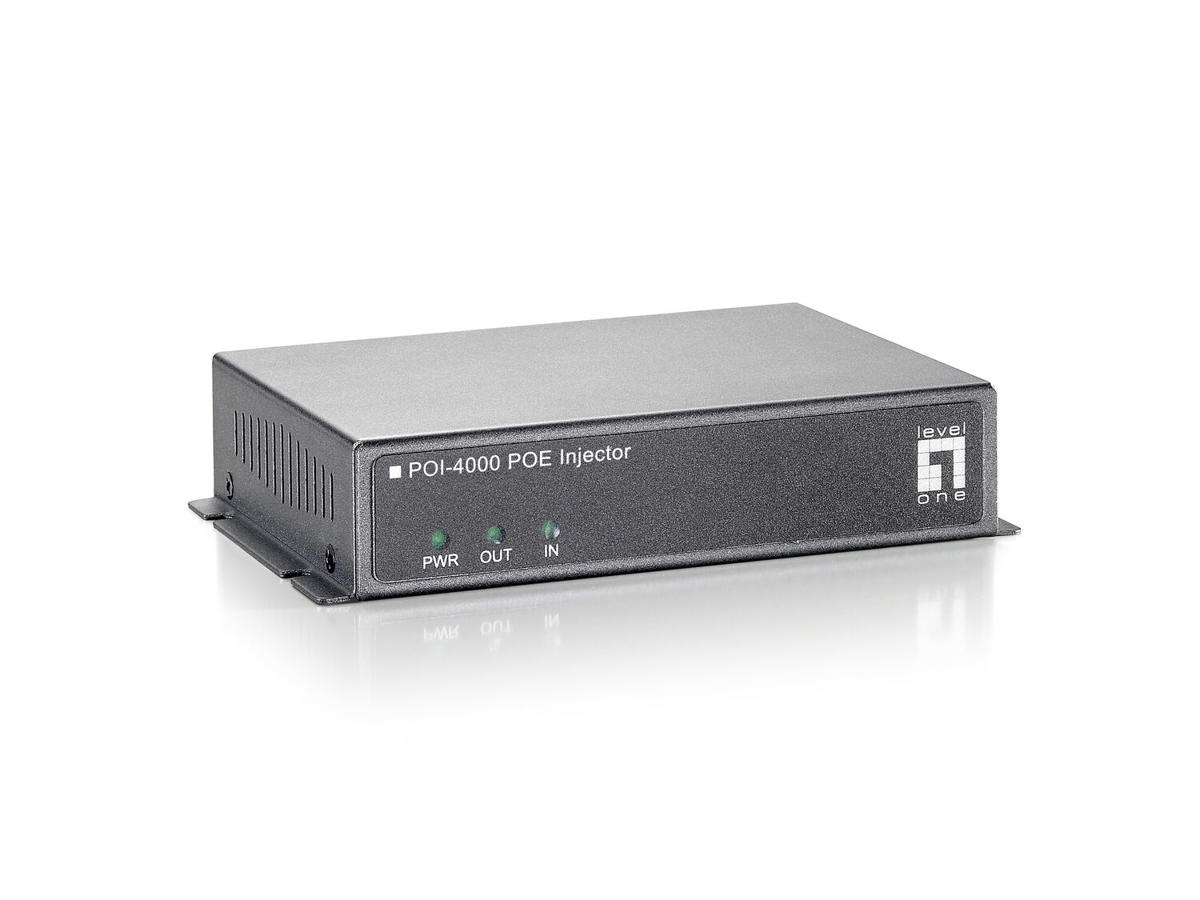

LevelOne POI-4000 PoE adapter Hurtigt ethernet 56 V
Varenummer: POI-4000
.
DKK 1.336,25 / Stk
DKK 1.069,00 ekskl. moms
  •
LevelOne POI-4000. Ethernet-grænsefladetype: Hurtigt ethernet, Ethernet LAN-datahastigheder: 10,100 Mbit/s, Kabelteknologi: 10/100BaseT(X). Produktfarve: Sort, LED-indikatorer: LAN, Strøm, Benkonfiguration & polaritet: 4/5 (+), 7/8 (-). Power over Ethernet (PoE) spænding: 56 V, Indgangsspænding: 24 V, Indgangsstrøm: 2.7 A. Bredde: 90 mm, Dybde: 120 mm, Højde: 28 mm. Pakkebredde: 148 mm, Pakkedybde: 235 mm, Pakkehøjde: 80 mm


Mere information

  • Background
    The IEEE 802.3af standard limits the maximum current on an Ethernet cable to 350Ma. This provides for a maximum end-point power consumption of 12.95 Watts, which is fine for some devices. But many professional networking devices require more power.

    Introducting the ultimate solution for high-power PoE
    LevelOne POI-4000(-Z) is a high power, PSE Power Injector for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data power) port, POI-4000(-Z) delivers up to 60 Watts over Cat.5/6/7. This provides excellent support for PD devices such as PoE IP surveillance, outdoor access points or PoE VoIP telephones.

    Maximize your PoE network
    POI-4000(-Z) can work with PoE Repeaters to extend the PoE network several hundred meters. This unbeatable solution is available only from LevelOne! It brings long distances with no latency or loss of network speed.

    - 56 Watt High-Power PSE Power Injector
    - Sends Power over Ethernet to remote devices
    - Ethernet 100Mbps Wire Speed
    - Simple to install-plug & play
    - Power Protection: OCP, OVP

  • Netværk
    Ethernet-grænsefladetype Hurtigt ethernet
    Ethernet LAN-datahastigheder 10,100 Mbit/s
    Kabelteknologi 10/100BaseT(X)
    Netværksstandarder IEEE 802.3x
    Funktioner
    Produktfarve Sort
    LED-indikatorer LAN, Strøm
    Benkonfiguration & polaritet 4/5 (+), 7/8 (-)
    Certificering FCC Rules Part 15 Class A CE
    Oprindelsesland Taiwan
    Porte & Grænseflader
    Ethernet LAN-porte (RJ-45) 2
    DC-in-stik Ja
    Strømstyring
    Power over Ethernet (PoE) spænding 56 V
    Indgangsspænding 24 V
    Indgangsstrøm 2.7 A
    Udgangsstrøm 1 A
    Total Power over Ethernet (PoE) 56 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 50 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 90 mm
    Dybde 120 mm
    Højde 28 mm
    Vægt 400 g
    Emballeringsdata
    Pakkebredde 148 mm
    Pakkedybde 235 mm
    Pakkehøjde 80 mm
    Pakkevægt 830 g
    Emballage indhold
    Antal produkter inkluderet 1 stk
    Logistik data
    Harmoniseret systemkode (HS) 85044090
