Plug-and-Play, Flexible Wall-Mount Installation

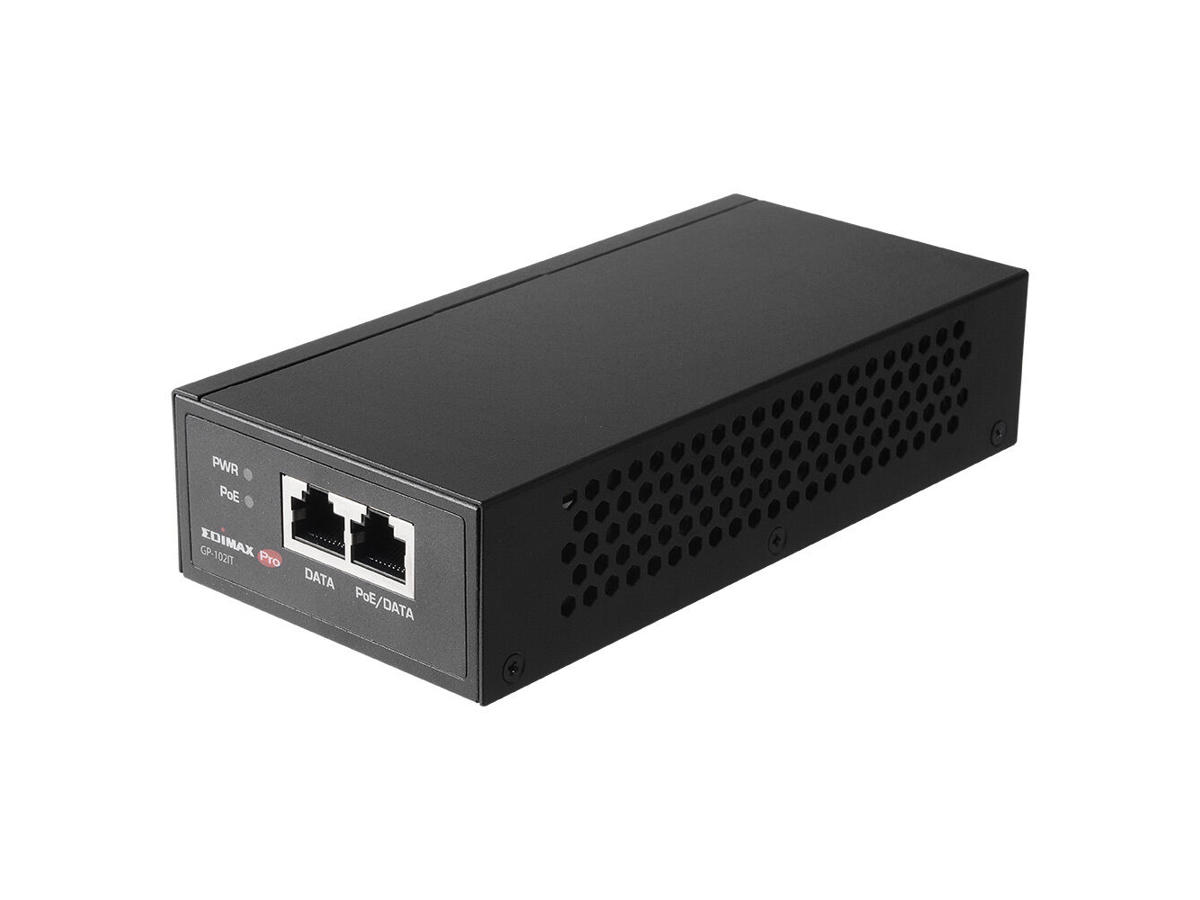

IEEE 802.3bt Gigabit 60W PoE++ Injector GP-102IT
Cost Efficiency with PoE++ Supported up to 60W
Adding the capability of IEEE 802.3af/at/bt Power over Ethernet to a non-PoE Ethernet switch or router to supply the transmission both power up to 60W and data at the same time to the PoE-enabled devices where power outlet is unavailable.
Easy Plug & Play, Flexible Wall-Mount
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration required.
Reliable Power Supply
Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage.
PoE Application Scenario
With the PoE++ Injector, the data and power are transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling.
| Netværk | |
| Ethernet-grænsefladetype | 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Strøm over Ethernet (PoE) | Ja |
| Netværksstandarder | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Funktioner | |
| Produktfarve | Sort |
| Kan monteres på væggen | Ja |
| Nem at installere | Ja |
| Plug and play | Ja |
| Beskyttelse ved overspænding | Ja |
| LED-indikatorer | Ja |
| Antal blæsere | 0 blæser(e) |
| Porte & Grænseflader | |
| Ethernet LAN-porte (RJ-45) | 2 |
| RJ-45 indgangs-porte | 1 |
| RJ-45 udgangs-porte | 1 |
| Strømstyring | |
| Udgangseffekt | 60 W |
| Indgangsspænding | 100 - 240 V |
| Indgangsfrekvens | 50/60 Hz |
| Indgangsstrøm | 1.5 A |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 73 mm |
| Dybde | 154 mm |
| Højde | 36 mm |
| Vægt | 568 g |
| Emballage indhold | |
| Antal produkter inkluderet | 5 stk |
| Monteringssæt til væggen | Ja |
| Strømledning inkluderet | Ja |
| Hurtig installationsvejledning | Ja |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85044090 |
