1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

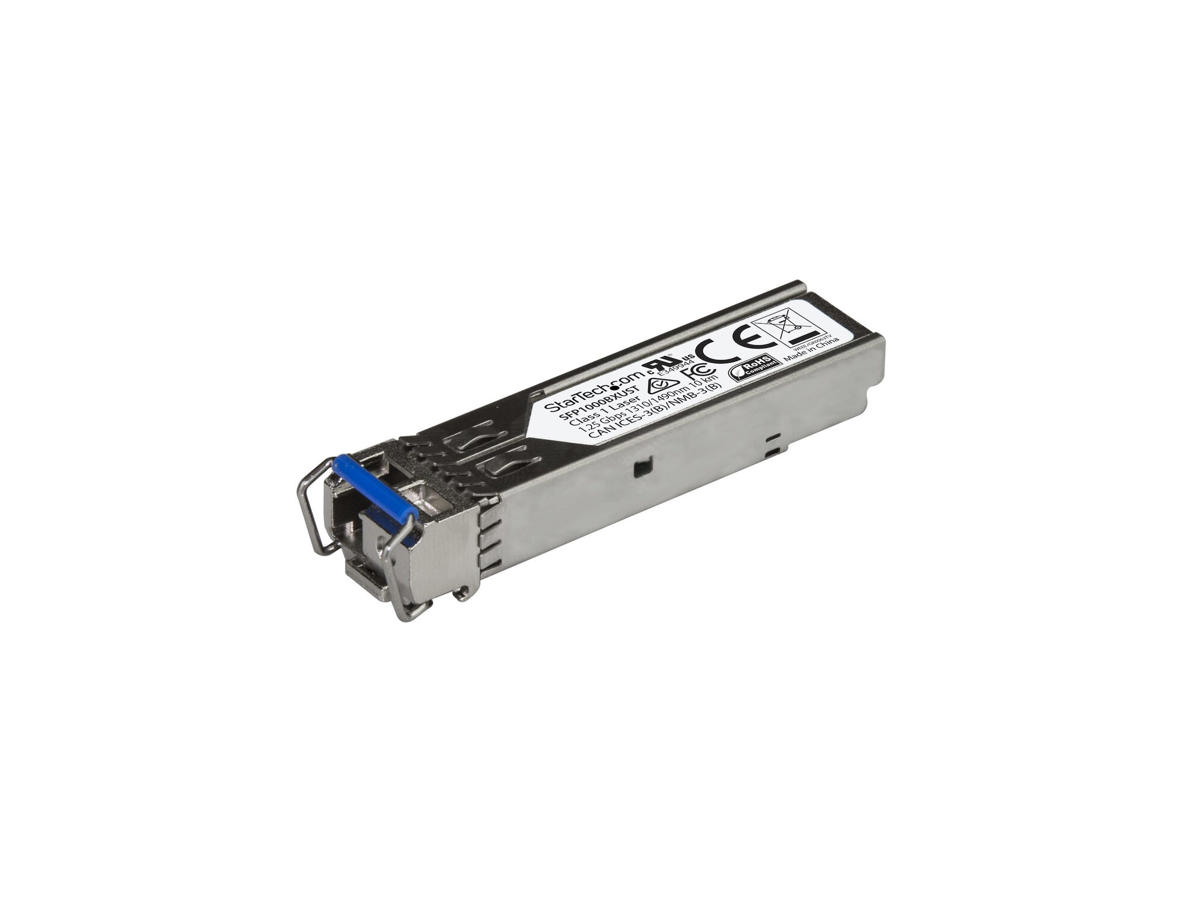

The SFP1000BXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXDST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nmTx/1490nmRx
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Præstation | |
| SFP modtagertype | Fiberoptisk |
| Maksimal dataoverførselshastighed | 1250 Mbit/s |
| Grænsefladetype | SFP |
| Enkelttilstand fiber (SMF) understøttet | Ja |
| Fiber optisk strømstik | LC |
| SFP transceiver standard | BX |
| Maksimal overførselsafstand | 10000 m |
| Tx effekt (min.) | 1310 dBmW |
| Rx effekt (min.) | 1490 dBmW |
| Netværksstandarder | IEEE 802.3z |
| Duplex system | Fuld |
| Digital diagnose overvågning (DDM) | Ja |
| Bølgelængde-division multipleksing (WDM) | Ingen |
| Funktioner | |
| Produktfarve | Sølv |
| Husmateriale | Aluminium |
| Understøtter hot-plug | Ja |
| Strømstyring | |
| Strømforbrug (typisk) | 1 W |
| Godkendelser | |
| Compliance-certifikater | RoHS |
| Certificering | CE, FCC, UR |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 70 °C |
| Opbevaringstemperatur (T-T) | -40 - 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 14 mm |
| Dybde | 57 mm |
| Højde | 13 mm |
| Vægt | 19 g |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Emballeringsdata | |
| Pakkebredde | 92 mm |
| Pakkedybde | 116 mm |
| Pakkehøjde | 34 mm |
| Pakkevægt | 48 g |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 198 mm |
| Hovedkassens længde (udvendigt) | 304 mm |
| Harmoniseret systemkode (HS) | 85369010 |
| Hovedkassen højde (udvendigt) | 164 mm |
| Produkter pr. hovedkasse (udvendigt) | 20 stk |
