Varenummer: QSFP40SR4ST
Mere information
-
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

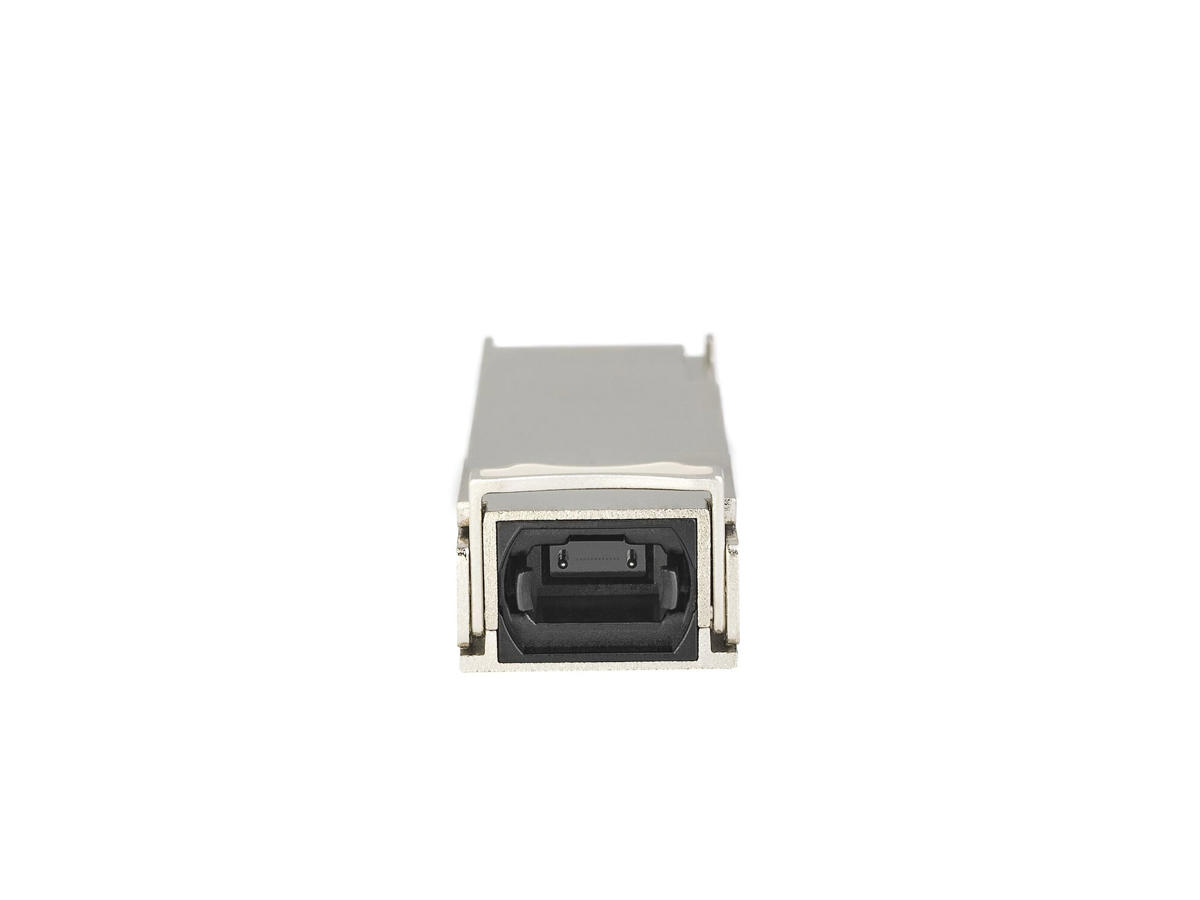

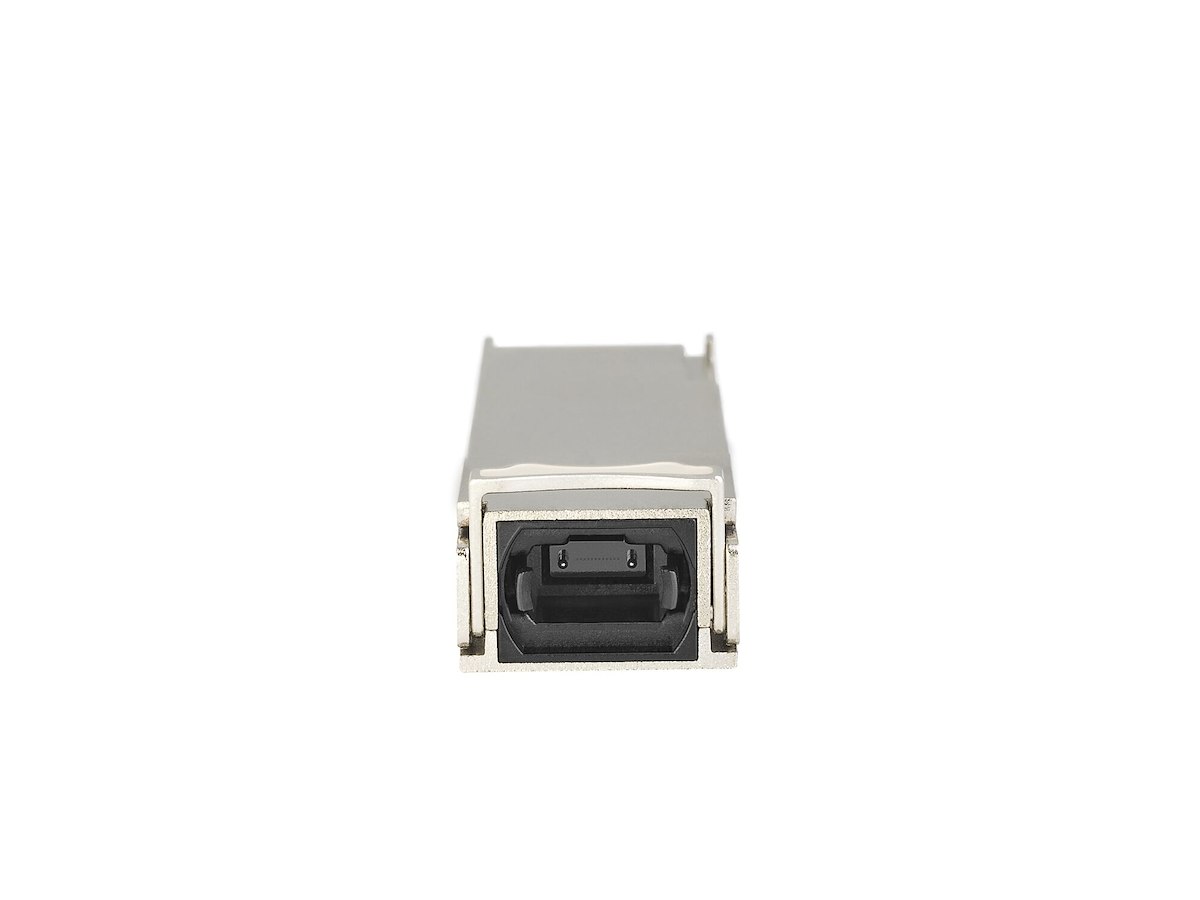

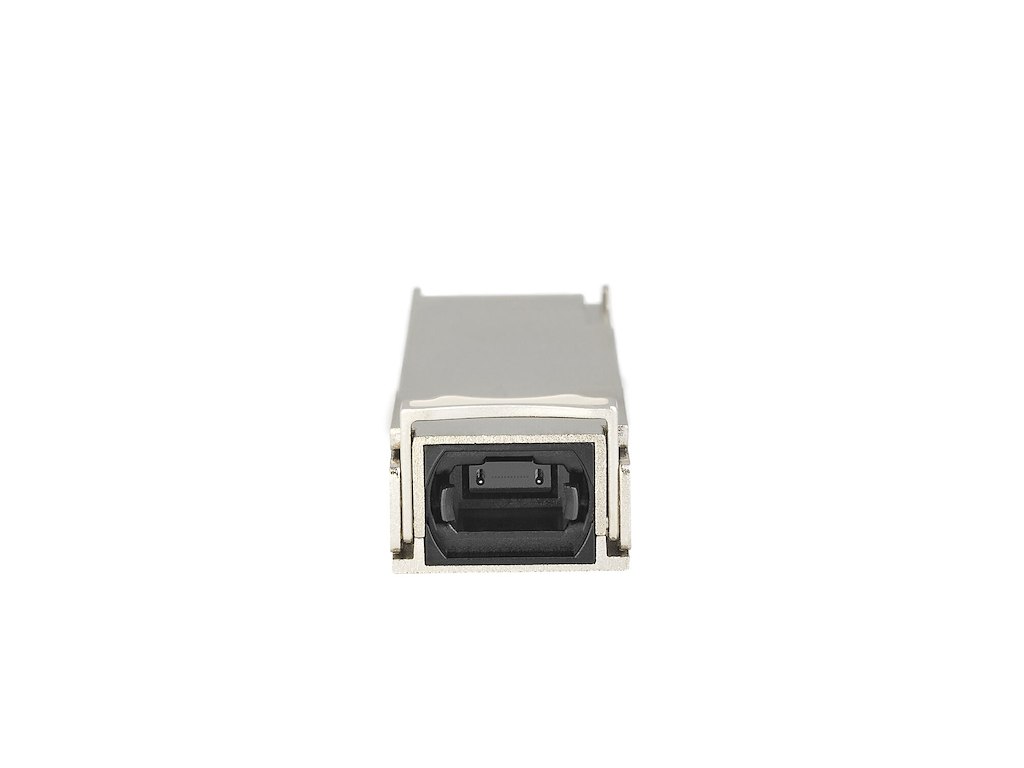

The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 0.7 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 40000 Mbit/s Grænsefladetype QSFP+ Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik MPO SFP transceiver standard SR4 Maksimal overførselsafstand 150 m Bølgelængde 850 nm Netværksstandarder IEEE 802.3ba Duplex system Fuld Digital diagnose overvågning (DDM) Ja Funktioner Produktfarve Sølv Husmateriale Aluminium Understøtter hot-plug Ja Gennemsnitstid mellem fejl (MTBF) 1489426 t Strømstyring Strømforbrug (typisk) 0,7 W Godkendelser Compliance-certifikater RoHS Certificering CE, FCC, UR Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 18,4 mm Dybde 72 mm Højde 13 mm Vægt 34 g Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 90 mm Pakkedybde 120 mm Pakkehøjde 30 mm Pakkevægt 62 g Logistik data Hovedkassens bredde (udvendigt) 270 mm Hovedkassens længde (udvendigt) 340 mm Harmoniseret systemkode (HS) 85369010 Hovedkassen højde (udvendigt) 330 mm Produkter pr. hovedkasse (udvendigt) 60 stk
