Varenummer: QSFP40LR4ST
Mere information
-
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

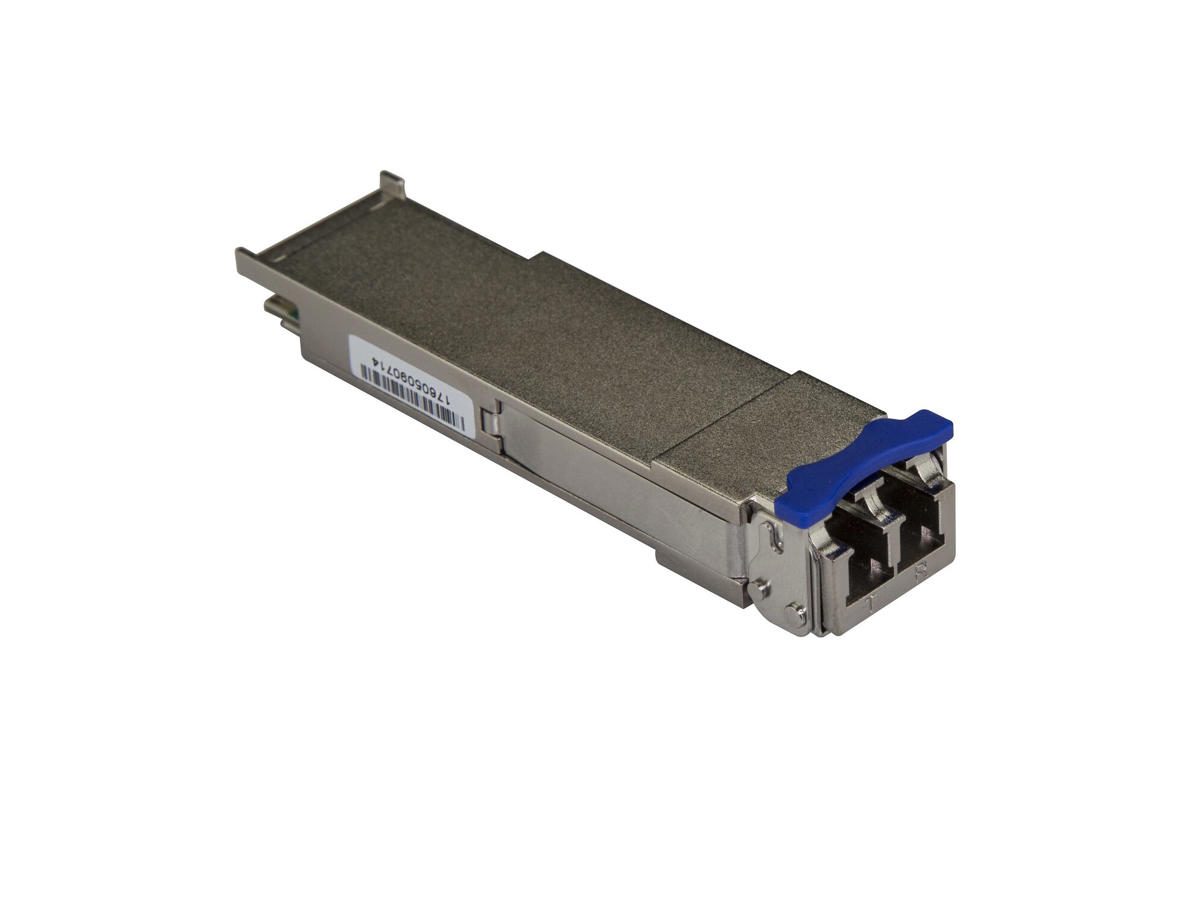

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 40000 Mbit/s Grænsefladetype QSFP+ Enkelttilstand fiber (SMF) understøttet Ja Multitilstand fiber (MMF) understøttet Ingen Fiber optisk strømstik LC SFP transceiver standard LR4 Maksimal overførselsafstand 10000 m Tx bølgelængde (min) 1270 nm Tx bølgelængde (maks) 1330 nm Netværksstandarder IEEE 802.3ba Duplex system Fuld Digital diagnose overvågning (DDM) Ja Funktioner Produktfarve Sølv Husmateriale Aluminium Understøtter hot-plug Ja Gennemsnitstid mellem fejl (MTBF) 1489426 t Strømstyring Strømforbrug (typisk) 2,5 W Godkendelser Compliance-certifikater RoHS Certificering CE, FCC, UR, REACH Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 18,4 mm Dybde 72 mm Højde 13 mm Vægt 40 g Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 92 mm Pakkedybde 117 mm Pakkehøjde 32 mm Pakkevægt 76 g Logistik data Hovedkassens bredde (udvendigt) 250 mm Hovedkassens længde (udvendigt) 300 mm Harmoniseret systemkode (HS) 85369010 Hovedkassen højde (udvendigt) 200 mm Produkter pr. hovedkasse (udvendigt) 36 stk
