40 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty
100% Dell EMC Compatible. Guaranteed.

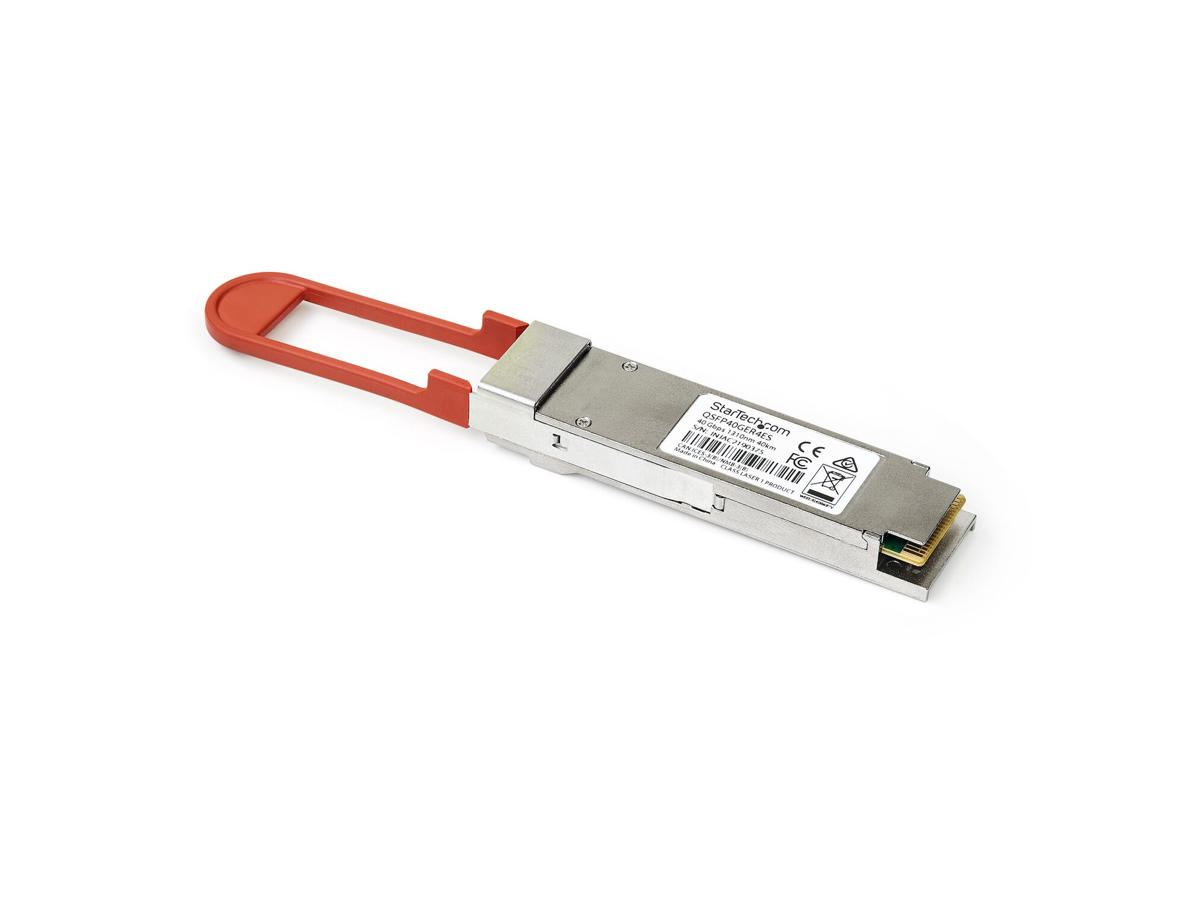

The QSFP40GER4ES is a Dell EMC QSFP-40G-ER4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand compatible switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-ER4Q compliant networks, with a maximum distance of up to 40 km (24.8 mi).
Technical Specifications:
• Wavelength: 1311nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 8,596,956 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a StarTech.com Lifetime Warranty and Free Lifetime Multilinugal Technical Support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the dependability and reliability you need to ensure consistent network performance.
The StarTech.com Advantage
| Præstation | |
| SFP modtagertype | Fiberoptisk |
| Maksimal dataoverførselshastighed | 40000 Mbit/s |
| Grænsefladetype | QSFP+ |
| Multitilstand fiber (MMF) understøttet | Ja |
| Fiber optisk strømstik | MPO |
| Maksimal overførselsafstand | 40000 m |
| Bølgelængde | 1311 nm |
| Digital diagnose overvågning (DDM) | Ja |
| Funktioner | |
| Produktfarve | Sølv |
| Hot-swap | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 8596956 t |
| Mærke kompatibilitet | Dell |
| Kompatible produkter | QSFP-40G-ER4 |
| Strømstyring | |
| Strømforbrug (typisk) | 1,6 W |
| Godkendelser | |
| Compliance-certifikater | RoHS |
| Certificering | CE, FCC, UL, REACH |
| Vægt & størrelser | |
| Bredde | 58,4 mm |
| Dybde | 13,9 mm |
| Højde | 12,6 mm |
| Vægt | 40 g |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Emballeringsdata | |
| Pakkebredde | 120 mm |
| Pakkedybde | 205 mm |
| Pakkehøjde | 350 mm |
| Pakkevægt | 60 g |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 120 mm |
| Hovedkassens længde (udvendigt) | 205 mm |
| Harmoniseret systemkode (HS) | 85369010 |
| Hovedkassen højde (udvendigt) | 350 mm |
| Produkter pr. hovedkasse (udvendigt) | 168 stk |
