40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

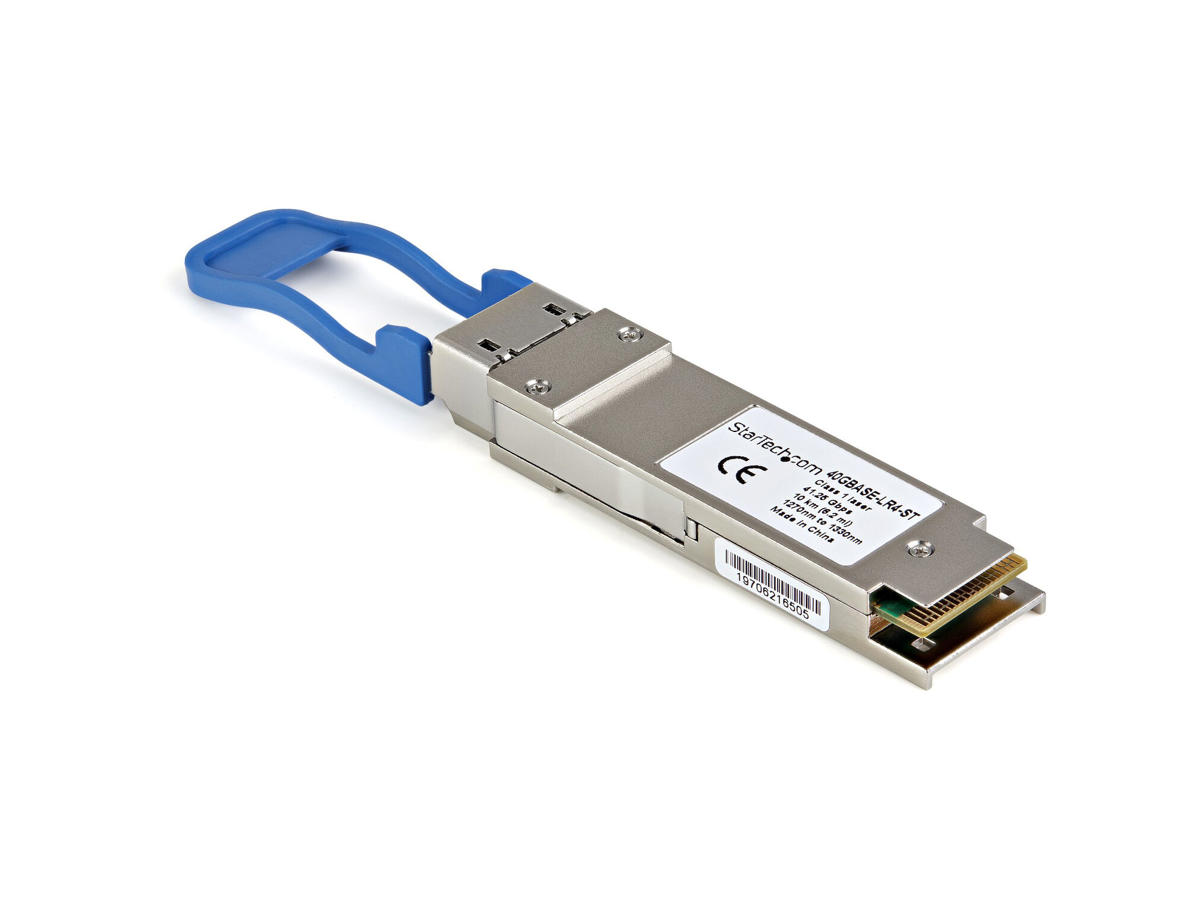

The 40GBASE-LR4-ST is a Palo Alto Networks 40GBASE-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,027 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Præstation | |
| SFP modtagertype | Fiberoptisk |
| Maksimal dataoverførselshastighed | 40000 Mbit/s |
| Grænsefladetype | QSFP+ |
| Enkelttilstand fiber (SMF) understøttet | Ja |
| Multitilstand fiber (MMF) understøttet | Ingen |
| Fiber optisk strømstik | LC |
| SFP transceiver standard | LR4 |
| Maksimal overførselsafstand | 10000 m |
| Bølgelængde | 1330 nm |
| Fiber ethernet kabelteknologi | 40GBASE |
| Digital diagnose overvågning (DDM) | Ja |
| Funktioner | |
| Produktfarve | Sølv |
| Hot-swap | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 95832027 t |
| Mærke kompatibilitet | Palo Alto Networks |
| Kompatible produkter | 40GBASE-LR4 |
| Strømstyring | |
| Strømforbrug (typisk) | 1,3 W |
| Godkendelser | |
| Certificering | CE, FCC, UR |
| Vægt & størrelser | |
| Bredde | 122 mm |
| Dybde | 18,3 mm |
| Højde | 8,5 mm |
| Vægt | 49 g |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Emballeringsdata | |
| Pakkebredde | 90 mm |
| Pakkedybde | 115 mm |
| Pakkehøjde | 31 mm |
| Pakkevægt | 50 g |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 90 mm |
| Hovedkassens længde (udvendigt) | 115 mm |
| Harmoniseret systemkode (HS) | 85369010 |
| Hovedkassen højde (udvendigt) | 31 mm |
| Produkter pr. hovedkasse (udvendigt) | 1 stk |
