The NVIDIA MMS1X00-NS400 is an InfiniBand and Ethernet 400Gb/s, Single-port, QSFP112, DR4 single mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Datacenter Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters and assumes two optical patch panels in the link. It has identical design and internals as the OSFP version, only with different connector shells.

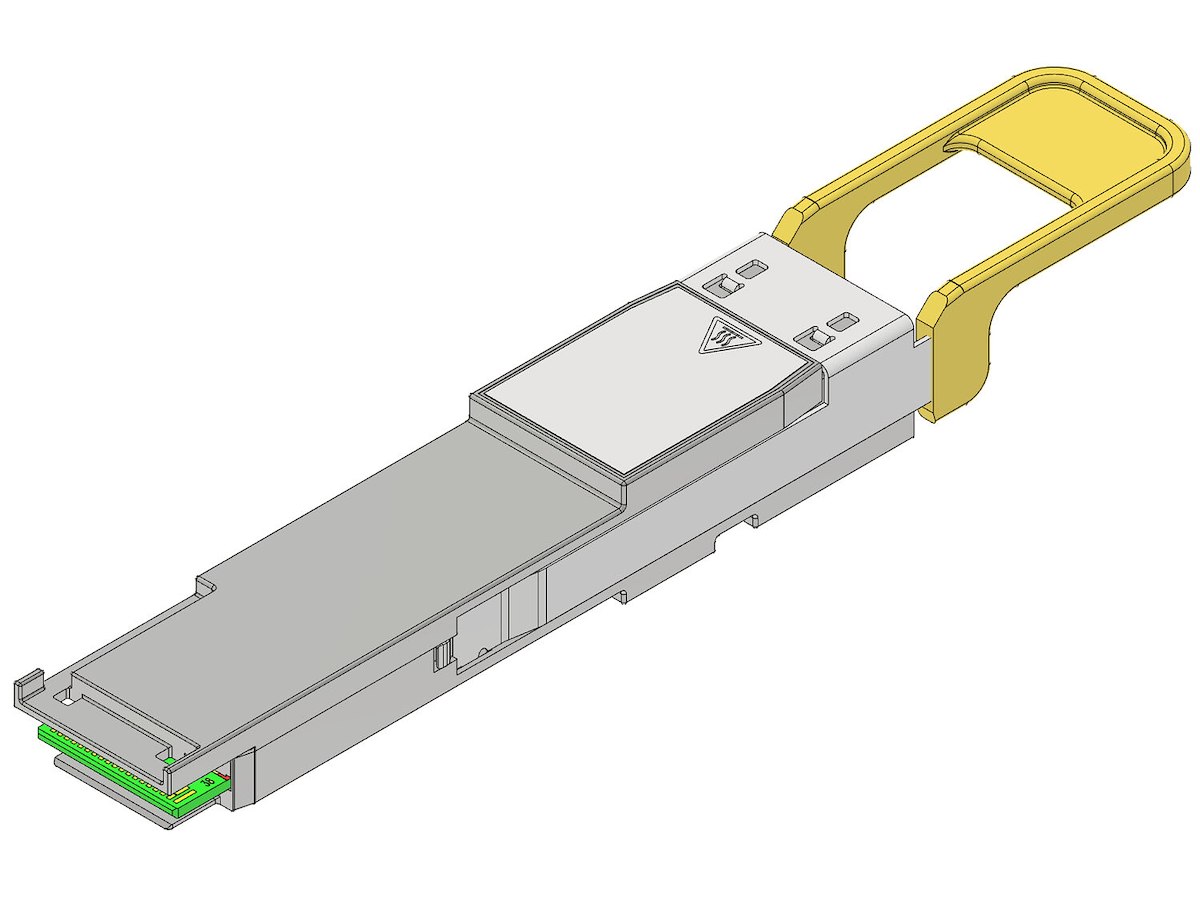

The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to. The QSFP112 shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 or BlueField-3 connector cage. The surface near the pull tab provides additional cooling and remains outside the host connector cage.
Single mode optics is denoted by a yellow-colored pull tab and optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector (APC) and is not compatible with the aqua colored Ultra-flat Polished Connectors (UPC).
NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end InfiniBand systems and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.
