Product Overview

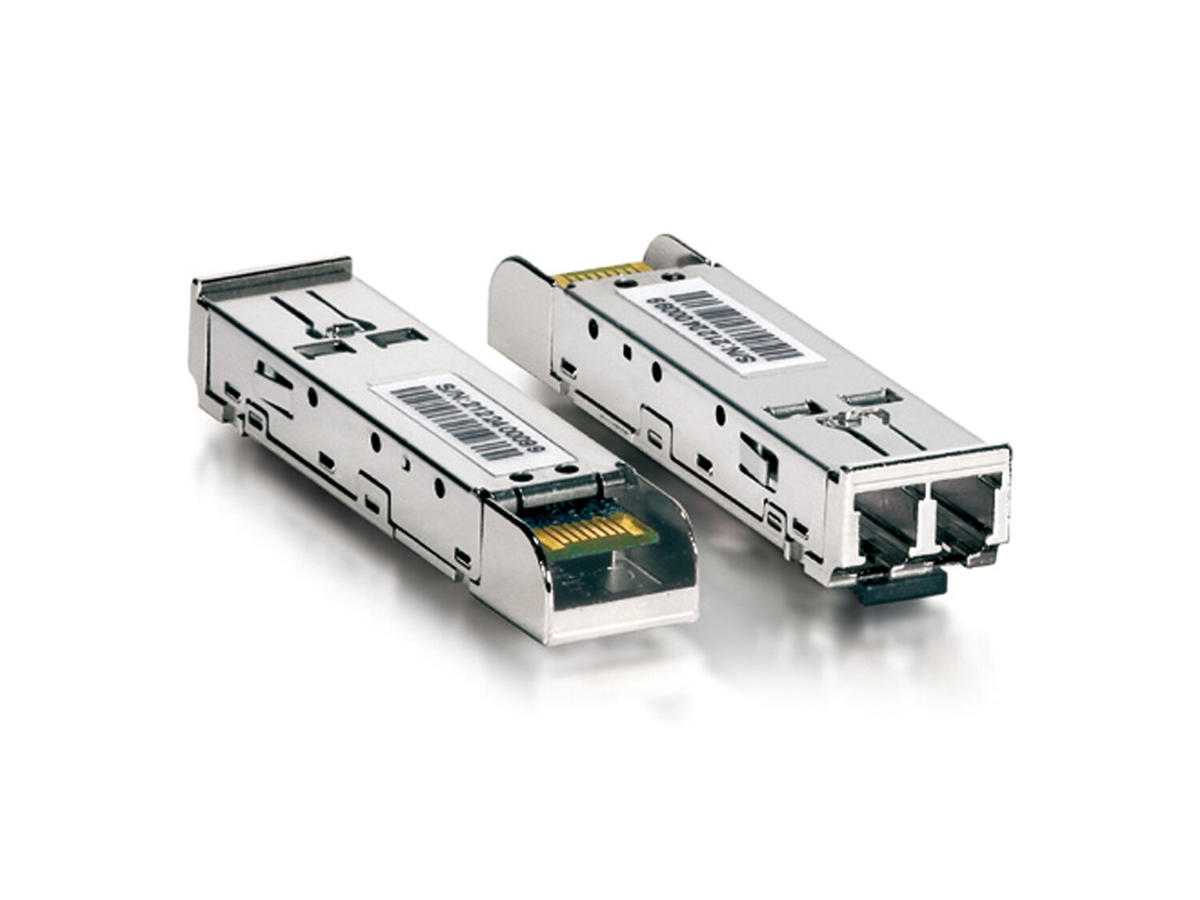

The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch
LC connector for a solid connection into the SFP port.
Multi-Purpose Usage
GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.
LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.
- Small Form Factor Pluggable MSA compliant
- For Multi-mode Applications
- Up to 850nm & 1.25Gbps
- Compliant for IEEE802.3z Gigabit Ethernet
- Easy to install and Hot-pluggable
- Connect switches up to 550m away with each other
- Single 3.3V power supply
- Duplex LC Connector
- TTL signal detect indicator
- EEPROM with serial ID functionality -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 1250 Mbit/s Grænsefladetype SFP Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 50/125,62.5/125 µm SFP transceiver standard SX Maksimal overførselsafstand 550 m Bølgelængde 850 nm Tx effekt (min.) -9,5 dBmW Tx effekt (maks.) -4 dBmW Link budget 8,5 dB Netværksstandarder IEEE 802.3z Funktioner Understøtter hot-plug Ja Kompatible produkter GSW-2453 GVT-4000 Strømstyring Indgangsspænding 3.5 V Maksimal spænding 6 V Strøm (maks.) 0,3 A Godkendelser Certificering Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11 Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Vægt & størrelser Bredde 13,4 mm Dybde 56,6 mm Højde 8,4 mm Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 155 mm Pakkedybde 50 mm Pakkehøjde 230 mm Logistik data Harmoniseret systemkode (HS) 85369010 Oprindelsesland Taiwan
