Varenummer: GVT-0302
Mere information
-
Product Overview

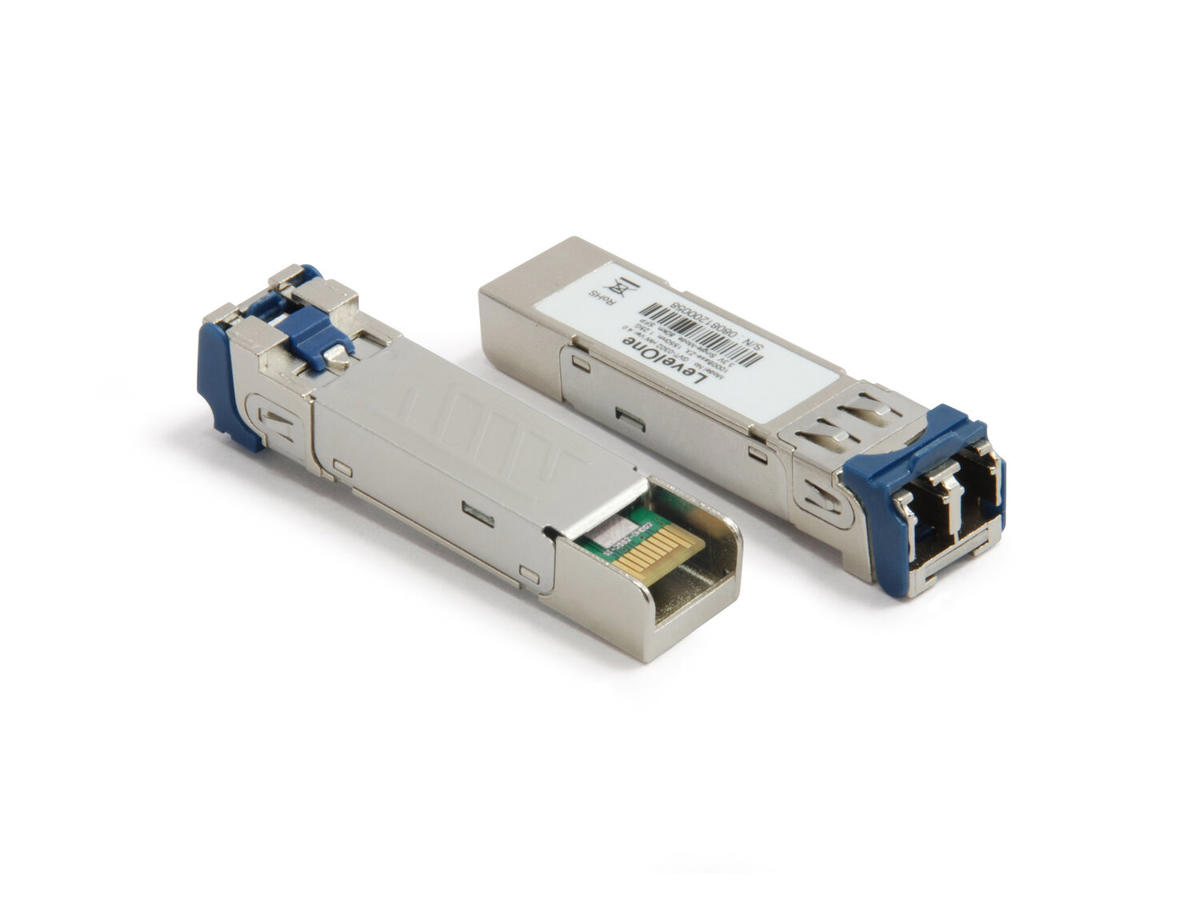

The LevelOne GVT-0302 SFP (Small form-factor pluggable) Transceiver provide flexibility for utilizing fiber Gigabit network connections in both data and telecommunication applications.
Support for Mini GBIC Connectivity
GVT-0302 SFP Transceiver Series transceivers support ZX standard optic with single-mode mini GBIC connectors. They provide signal amplification to transfer and receive data between two ends of mini GBIC ports.
Multi-Purpose Usage
GVT-0302 SFP transceivers can be used for distributed multi-processing, switch-to-switch interfaces, high-speed I/O file transfer, bus extension applications, and for a channel extender or data storage applications. The LevelOne GVT-0302 can be used in any LevelOne switch or modules that support SFP modules.
- Add a 1000Base-ZX connection to LevelOne switchs with mini GBIC/SFP ports
- Connect switches up to 80km away with each other
- TTL signal detect indicator
- Compliant with IEEE802.3z Gigabit Ethernet
- Easy to install and hot-swappable
- Differential LVPECL input and output
- Single 3.3V power supply
- Duplex LC connector -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 1250 Mbit/s Grænsefladetype SFP Enkelttilstand fiber (SMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 9/125 µm SFP transceiver standard ZX Maksimal overførselsafstand 80000 m Bølgelængde 1550 nm Tx effekt (min.) 0 dBmW Tx effekt (maks.) 5 dBmW Link budget 23 dB Netværksstandarder IEEE 802.3z Funktioner Understøtter hot-plug Ja Kompatible produkter GSW-2453 GVT-4000 Strømstyring Indgangsspænding 3.5 V Maksimal spænding 6 V Strøm (maks.) 0,3 A Godkendelser Certificering Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11 Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Vægt & størrelser Bredde 55,5 mm Dybde 13,5 mm Højde 11,7 mm Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 153 mm Pakkedybde 51 mm Pakkehøjde 230 mm Pakkevægt 180 g Logistik data Harmoniseret systemkode (HS) 85369010 Oprindelsesland Taiwan
