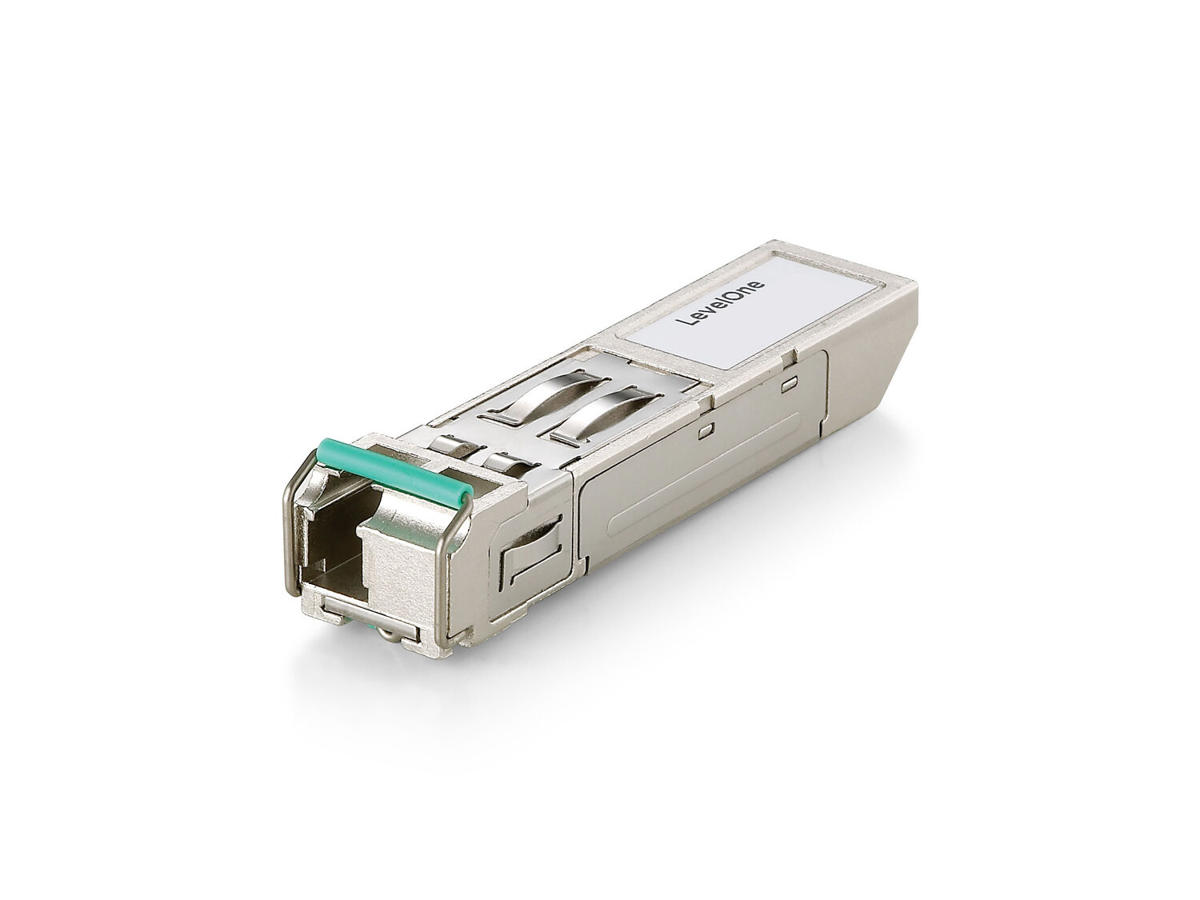

The LevelOne SFP-7331 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.
The SFP-7331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-7321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.
- 1550nm FP LD
- Data Rate: 125~155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface
- Single LC Connector
- Compliance with specifications for IEEE802.3ah 100BASE-BX10-U
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 155 Mbit/s Grænsefladetype SFP Enkelttilstand fiber (SMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 9/125 µm Maksimal overførselsafstand 20 m Tx effekt (min.) -14 dBmW Tx effekt (maks.) -8 dBmW Netværksstandarder IEEE 802.3ah Fiberkanal porte 1 Funktioner Hot-swap Ja Strømstyring Indgangsspænding 3.3 V Maksimal spænding 6 V Strøm (maks.) 0,3 A Godkendelser Compliance-certifikater RoHS Sikkerhed EN 60825-1 Certificering CE, FCC Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 13,7 mm Dybde 56,5 mm Højde 8,95 mm Vægt 20 g Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 75 mm Pakkedybde 51 mm Pakkehøjde 130 mm Pakkevægt 60 g Logistik data Harmoniseret systemkode (HS) 85369010
