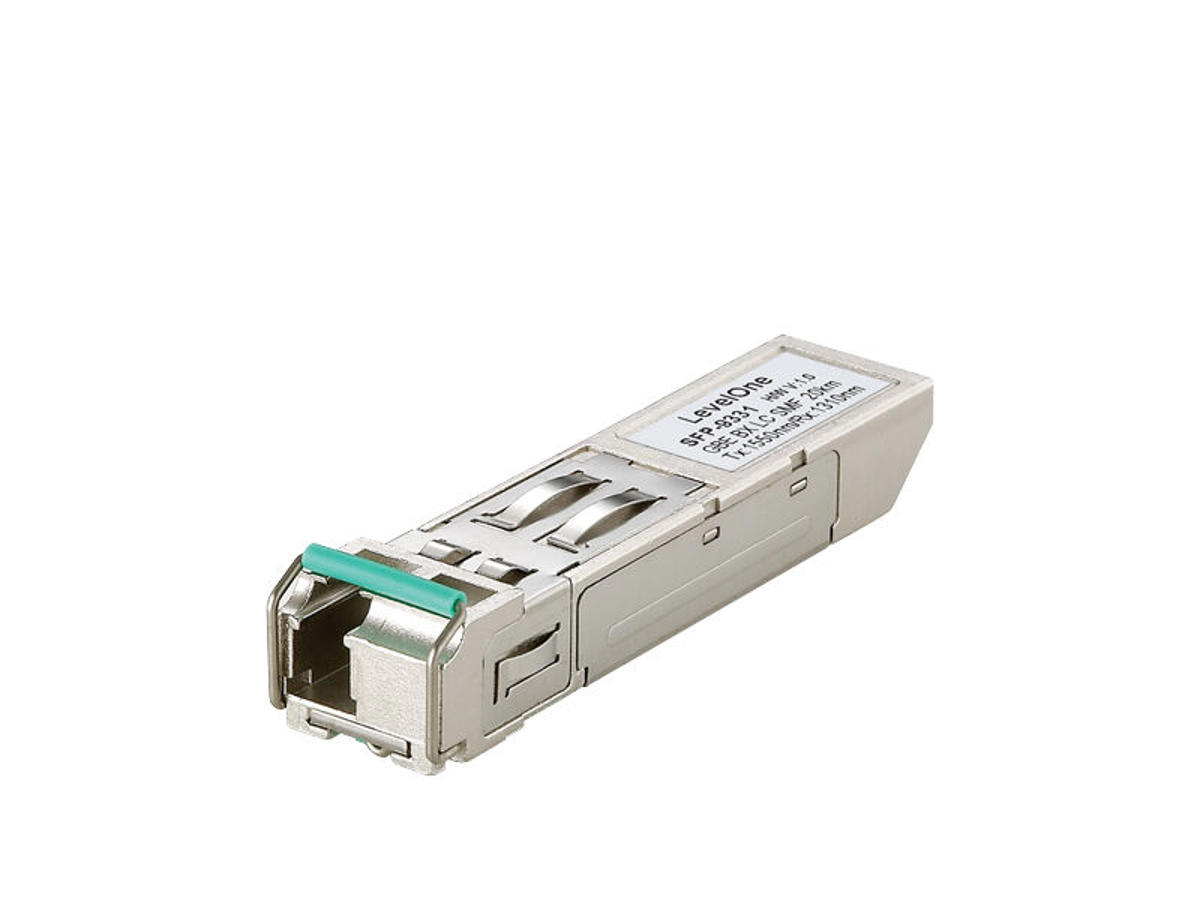

The LevelOne SFP-9331 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.
The SFP-9331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.
- 1550nm DFP LD
- Multi Data Rate: from 125M to 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Simplex LC Connector
- Compliance with specifications for IEEE802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1 -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 1250 Mbit/s Grænsefladetype SFP Enkelttilstand fiber (SMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 9/125 µm Maksimal overførselsafstand 20000 m Tx effekt (min.) -8 dBmW Tx effekt (maks.) -3 dBmW Netværksstandarder IEEE 802.3ah Fiberkanal porte 1 Funktioner Plug and play Ja Hot-swap Ja Strømstyring Indgangsspænding 3.3 V Maksimal spænding 6 V Strøm (maks.) 0,3 A Godkendelser Compliance-certifikater RoHS Sikkerhed EN 60825-1 Certificering CE, FCC Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 57 mm Dybde 12 mm Højde 13,7 mm Vægt 22 g Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 106 mm Pakkedybde 20 mm Pakkehøjde 65 mm Pakkevægt 35 g Logistik data Harmoniseret systemkode (HS) 85369010
