Varenummer: N286-400G-SR8-G
Mere information
-

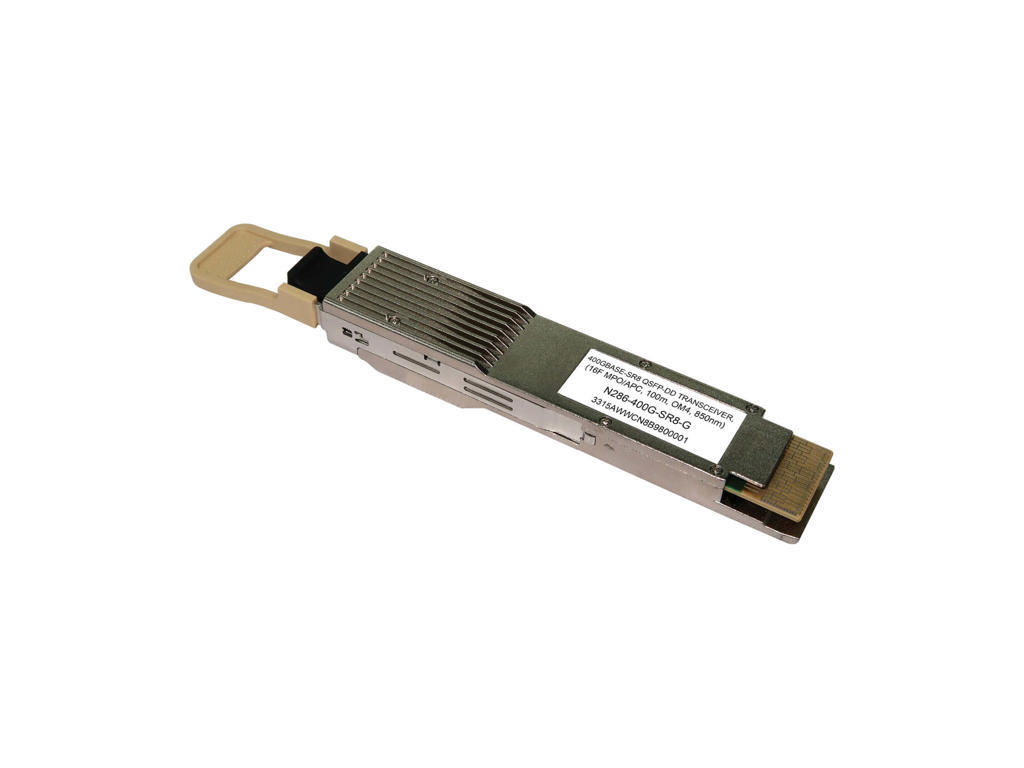

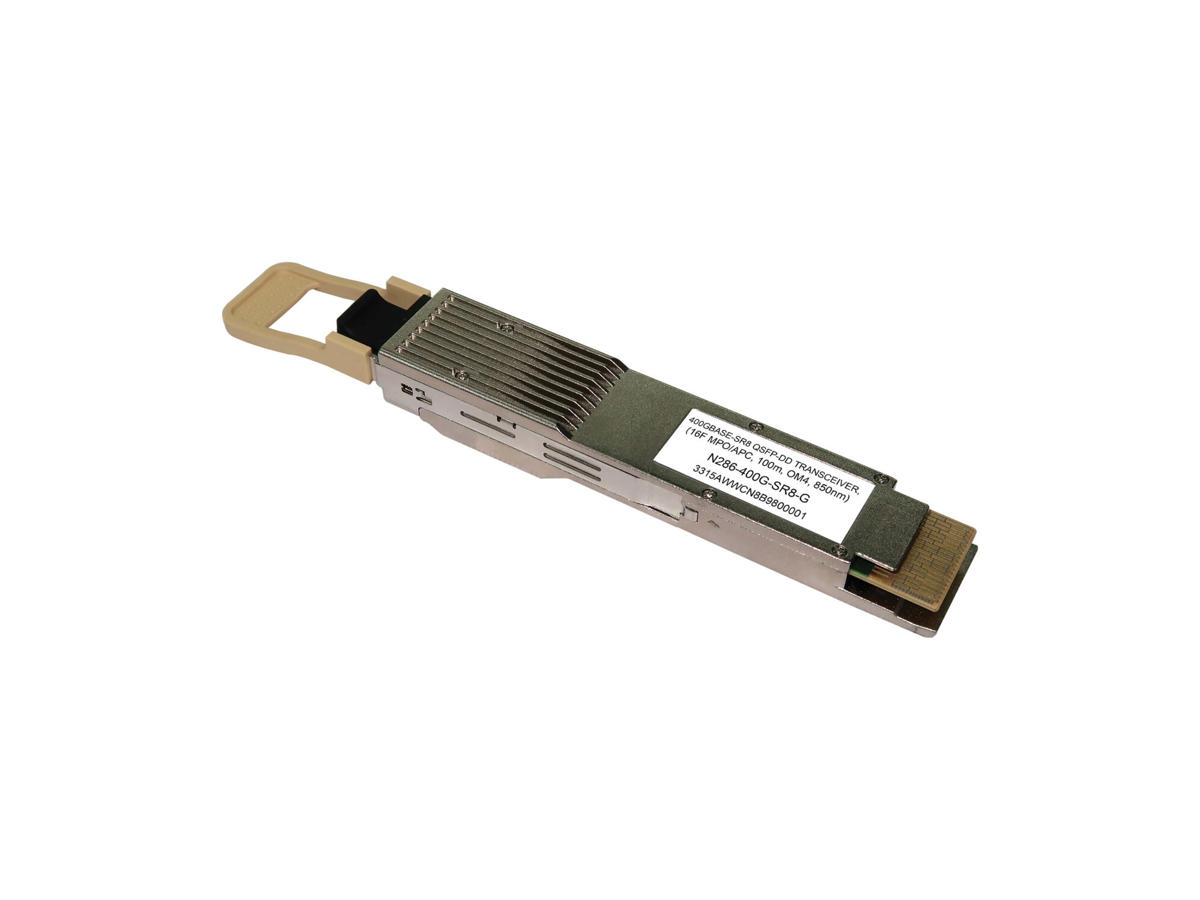

Connects a multimode Gigabit Ethernet fiber optic network cable to a router, switch or server’s QSFP-DD port.
QSFP-DD Transceiver for Connecting to Your Network Switch or Server
This QSFP-DD transceiver allows you to connect a multimode fiber optic cable to a 400 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to a Wide Range of 400GBASE-SR8 Transceiver Modules
The MSA-compliant N286-400G-SR8-G functions just like equivalent 400GBASE-SR8 transceiver modules and is manufactured to meet or exceed those specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the 400GBASE-SR8.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 400 Gbps network shutdown or device reboot. Just plug the QSFP-DD end of the transceiver into your network device. The other end has an MPO/APC connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage. -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 400000 Mbit/s Grænsefladetype QSFP-DD Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik MTP/MPO SFP transceiver standard SR8 Maksimal overførselsafstand 100 m Bølgelængde 850 nm Fiber ethernet kabelteknologi 400GBASE Digital diagnose overvågning (DDM) Ja Funktioner Produktfarve Metallic Husmateriale Zink Formfaktor QSFP-DD Plug and play Ja Hot-swap Ja Nem at installere Ja Mærke kompatibilitet Cisco Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS, UKCA Certificering EN 55032; IEC/EN 63000 Driftsbetingelser Minimal driftstemperatur 0 °C Maksimal driftstemperatur 70 °C Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 85% Vægt & størrelser Vægt 50 g Emballage indhold Antal pr. pakke 1 stk Logistik data Garantiperiode 3 År Bæredygtighed Overholdelse af bæredygtighed Ja
