Varenummer: DEM-311GT/10
Mere information
-
High-Speed Network Transmission for Business Environments

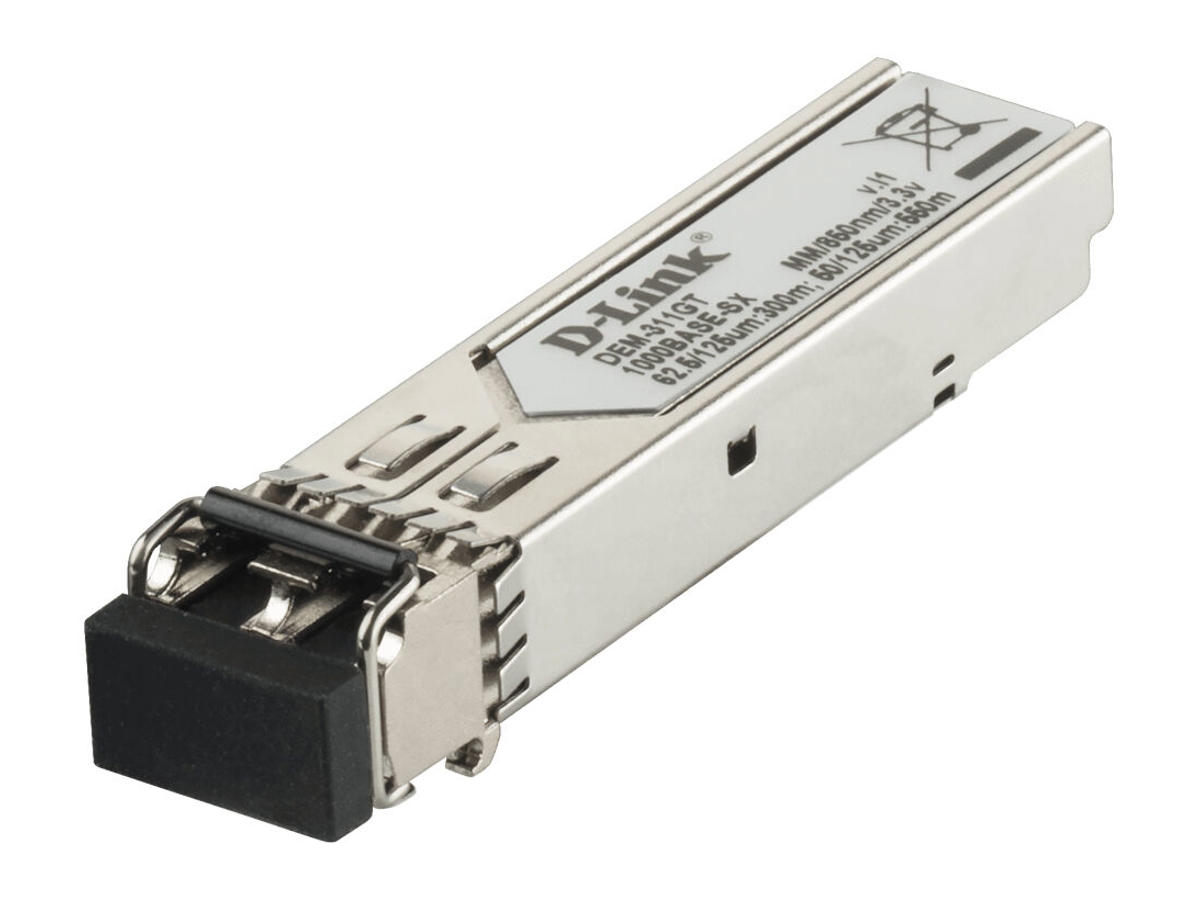

D-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-311GT is a high-performance 850 nm multi-mode SFP transceiver supporting Gigabit speeds on multi-mode fiber for distances of up to 550 m. The unit features a metal housing to reduce EMI and to increase durability.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
Multiple Applications
Applications of the DEM-300 Series fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.
Small Form Pluggable (SFP) Package
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 1000 Mbit/s Grænsefladetype SFP Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 50/125,62.5/125 µm Maksimal overførselsafstand 550 m Bølgelængde 850 nm Tx effekt (min.) -4 dBmW Tx effekt (maks.) -17 dBmW Rx effekt (maks.) -3 dBmW Link budget 13 dB Netværksstandarder IEEE 802.3z Fiber ethernet kabelteknologi 1000BASE Funktioner Produktfarve Sort, Rustfrit stål Understøtter hot-plug Ja Strømstyring Indgangsspænding 3.3 V Strøm (maks.) 0,24 A Godkendelser Compliance-certifikater RoHS Certificering FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL Driftsbetingelser Minimal driftstemperatur 0 °C Maksimal driftstemperatur 70 °C Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 13,4 mm Dybde 56,4 mm Højde 10,3 mm Vægt 15,5 g Emballage indhold Antal pr. pakke 10 stk Andre funktioner RX sensitivitet -17 dB Bæredygtighed Overholdelse af bæredygtighed Ja
