Varenummer: DEM-431XT/10
Mere information
-

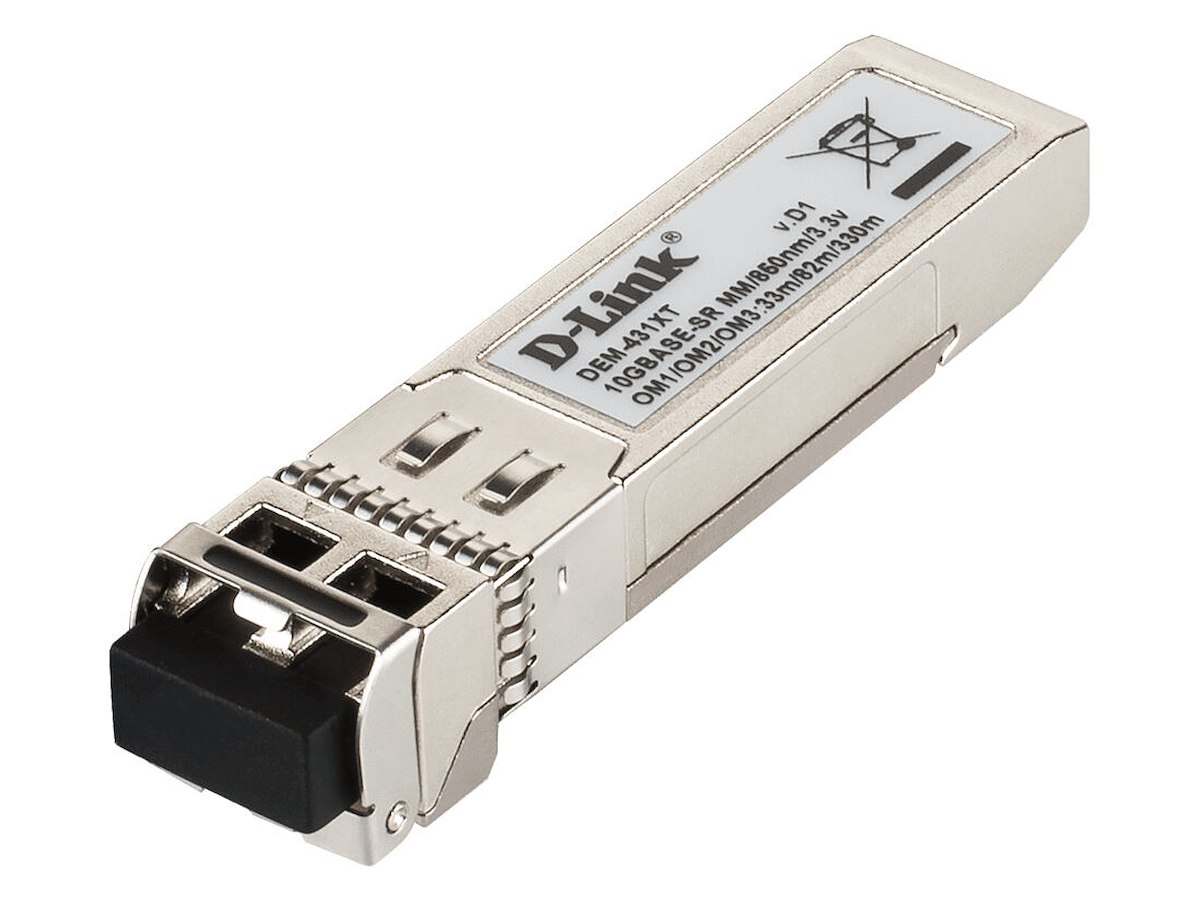

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications. They are hot-pluggable and Enhanced Small Form Factor Pluggable (SFP+) compliant with the Multi-Source Agreement (MSA) specification.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet Speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs. -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 10000 Mbit/s Grænsefladetype SFP+ Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik LC Fiber kabeldiametre understøttes (kerne/beklædning) 50/125,62.5/125 µm Maksimal overførselsafstand 550 m Tx effekt (min.) -6,5 dBmW Tx effekt (maks.) -1 dBmW Rx effekt (min.) -11,1 dBmW Rx effekt (maks.) -1 dBmW Link budget 10,1 dB Netværksstandarder IEEE 802.3ae, IEEE 802.3x Fiber ethernet kabelteknologi 10GBASE Funktioner Produktfarve Sort, Rustfrit stål Understøtter hot-plug Ja Gennemsnitstid mellem fejl (MTBF) 3960000 t Kompatible produkter CE, FCC, VCC, UL, TUV, CDRH Strømstyring Indgangsspænding 3.3 V Strøm (maks.) 0,3 A Godkendelser Compliance-certifikater RoHS Driftsbetingelser Minimal driftstemperatur 0 °C Maksimal driftstemperatur 70 °C Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 85% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 14,8 mm Dybde 56,5 mm Højde 11,8 mm Vægt 18 g Emballage indhold Antal pr. pakke 10 stk Bæredygtighed Overholdelse af bæredygtighed Ja
