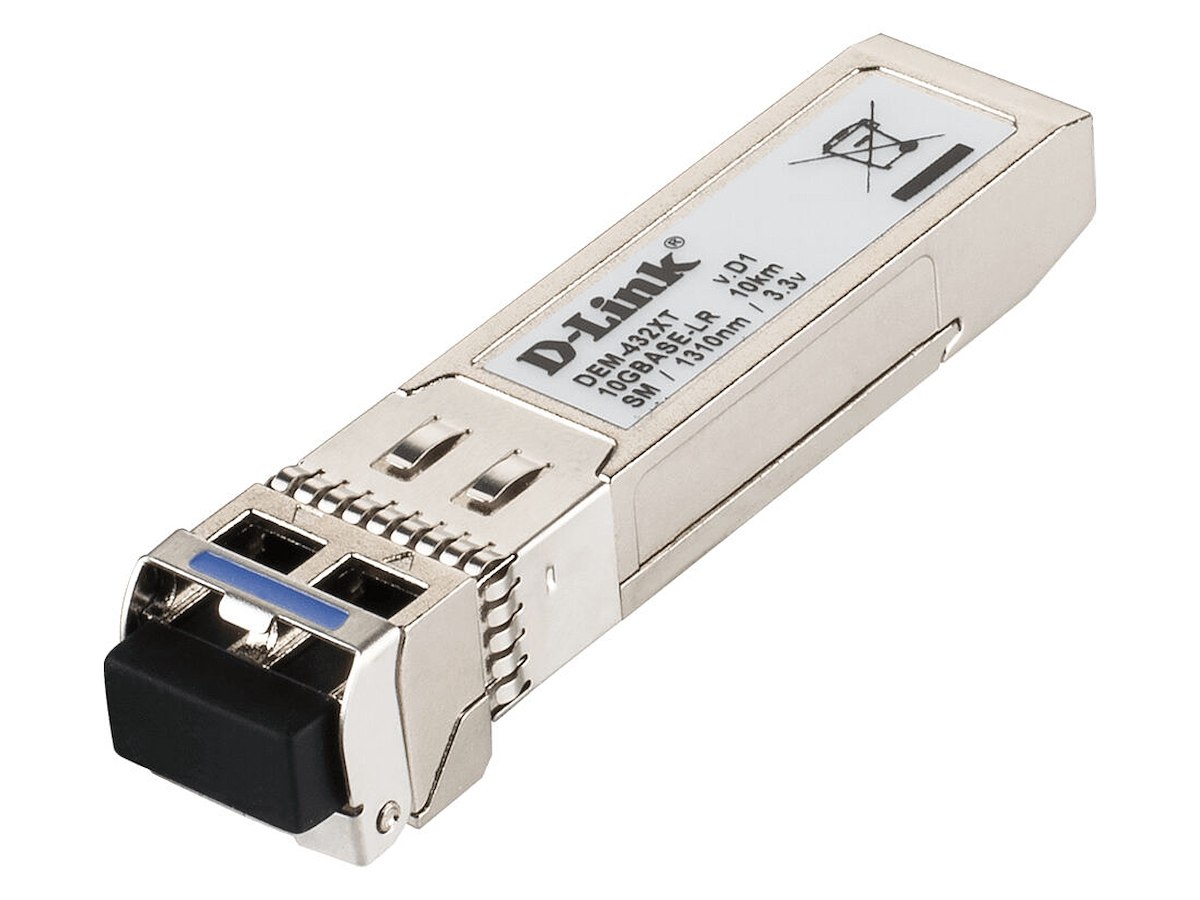

D-Link DEM-432XT modul til netværksmodtager Fiberoptisk 10000 Mbit/s SFP+ 1310 nm
Varenummer: DEM-432XT/10
.
DKK 21.361,25 / Stk
DKK 17.089,00 ekskl. moms
  •
D-Link DEM-432XT. SFP modtagertype: Fiberoptisk, Maksimal dataoverførselshastighed: 10000 Mbit/s, Grænsefladetype: SFP+. Produktfarve: Sort, Rustfrit stål, Gennemsnitstid mellem fejl (MTBF): 4650000 t, Certificering: CE, FCC, VCCI, UL, TUV, CDRH. Indgangsspænding: 3.3 V, Strøm (maks.): 0,3 A. Bredde: 14,8 mm, Dybde: 56,5 mm, Højde: 11,8 mm. Antal produkter inkluderet: 10 stk


Mere information

  • Better 10G Ethernet Connectivity for Enterprise Deployments
    D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

    10G Ethernet speeds
    The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.

    Enhanced Small Form-factor Pluggable Format
    The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

    Hot-Pluggable
    All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.

  • Præstation
    SFP modtagertype Fiberoptisk
    Maksimal dataoverførselshastighed 10000 Mbit/s
    Grænsefladetype SFP+
    Multitilstand fiber (MMF) understøttet Ja
    Fiber optisk strømstik LC
    Fiber kabeldiametre understøttes (kerne/beklædning) 9/125 µm
    Maksimal overførselsafstand 10000 m
    Bølgelængde 1310 nm
    Tx effekt (min.) -8,5 dBmW
    Tx effekt (maks.) 0,5 dBmW
    Rx effekt (min.) -8,5 dBmW
    Rx effekt (maks.) 0,5 dBmW
    Link budget 10,1 dB
    Netværksstandarder IEEE 802.3ae
    Fiber ethernet kabelteknologi 10GBASE-LR
    Funktioner
    Produktfarve Sort, Rustfrit stål
    Understøtter hot-plug Ja
    Gennemsnitstid mellem fejl (MTBF) 4650000 t
    Certificering CE, FCC, VCCI, UL, TUV, CDRH
    Strømstyring
    Indgangsspænding 3.3 V
    Strøm (maks.) 0,3 A
    Driftsbetingelser
    Maksimal driftstemperatur 70 °C
    Driftstemperatur (T-T) 0 - 70 °C
    Opbevaringstemperatur (T-T) -40 - 85 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 85%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
    Vægt & størrelser
    Bredde 14,8 mm
    Dybde 56,5 mm
    Højde 11,8 mm
    Vægt 19,5 g
    Emballeringsdata
    Antal produkter inkluderet 10 stk
    Tekniske detaljer
    Overholdelse af bæredygtighed Ja
    Bæredygtighedscertifikater RoHS
