Varenummer: MASFP1GBSXST
Mere information
-
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

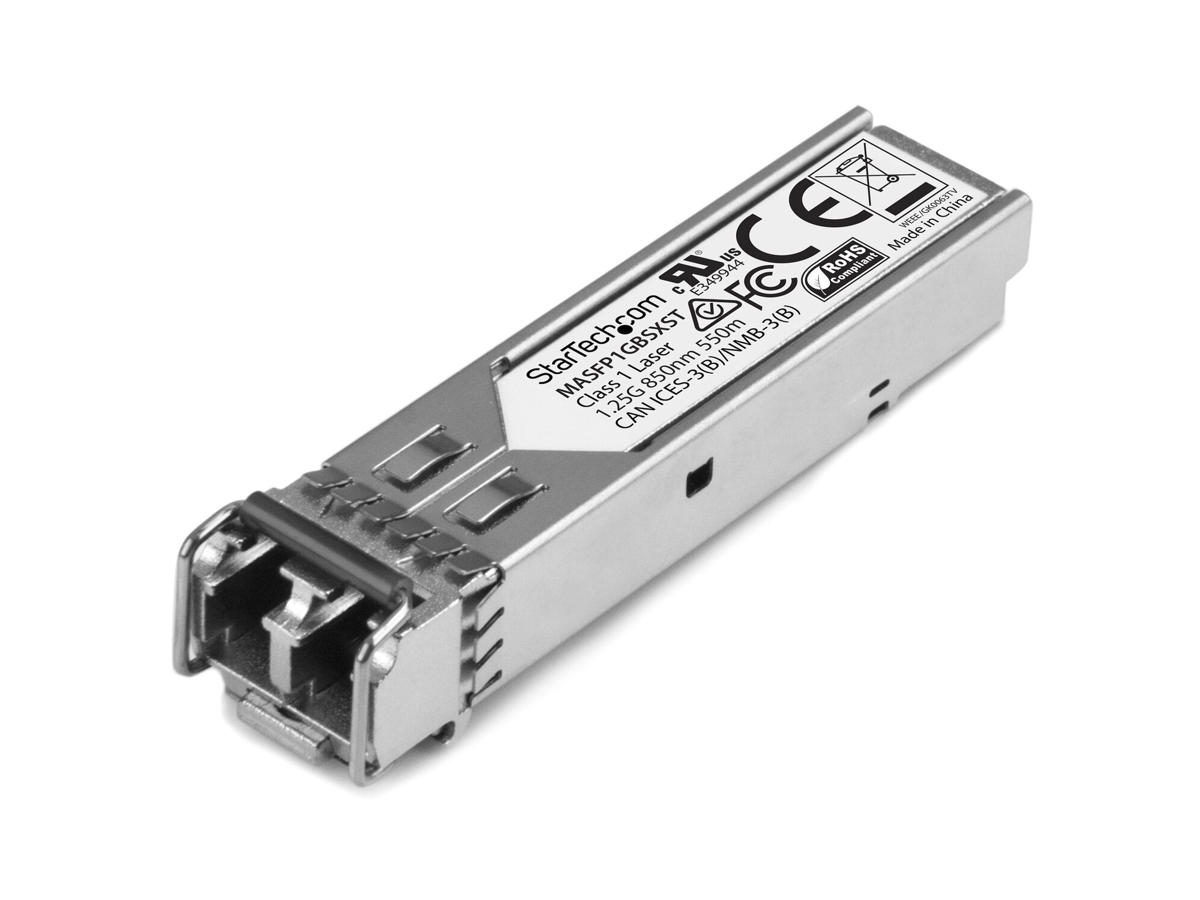

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550m (1804 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage -
Præstation SFP modtagertype Fiberoptisk Maksimal dataoverførselshastighed 1250 Mbit/s Grænsefladetype SFP Multitilstand fiber (MMF) understøttet Ja Fiber optisk strømstik LC SFP transceiver standard SX Maksimal overførselsafstand 550 m Bølgelængde 850 nm Netværksstandarder IEEE 802.3z Duplex system Fuld Digital diagnose overvågning (DDM) Ja Funktioner Produktfarve Sølv Husmateriale Aluminium Hot-swap Ja Gennemsnitstid mellem fejl (MTBF) 3381761 t Strømstyring Strømforbrug (typisk) 1 W Godkendelser Compliance-certifikater RoHS Certificering CE, FCC, UR Driftsbetingelser Driftstemperatur (T-T) 0 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 13,7 mm Dybde 56,6 mm Højde 12,5 mm Vægt 14 g Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 119 mm Pakkedybde 94 mm Pakkehøjde 33 mm Pakkevægt 42 g Logistik data Hovedkassens bredde (udvendigt) 257 mm Hovedkassens længde (udvendigt) 305 mm Harmoniseret systemkode (HS) 85369010 Hovedkassen højde (udvendigt) 200 mm Produkter pr. hovedkasse (udvendigt) 100 stk Oprindelsesland Kina
