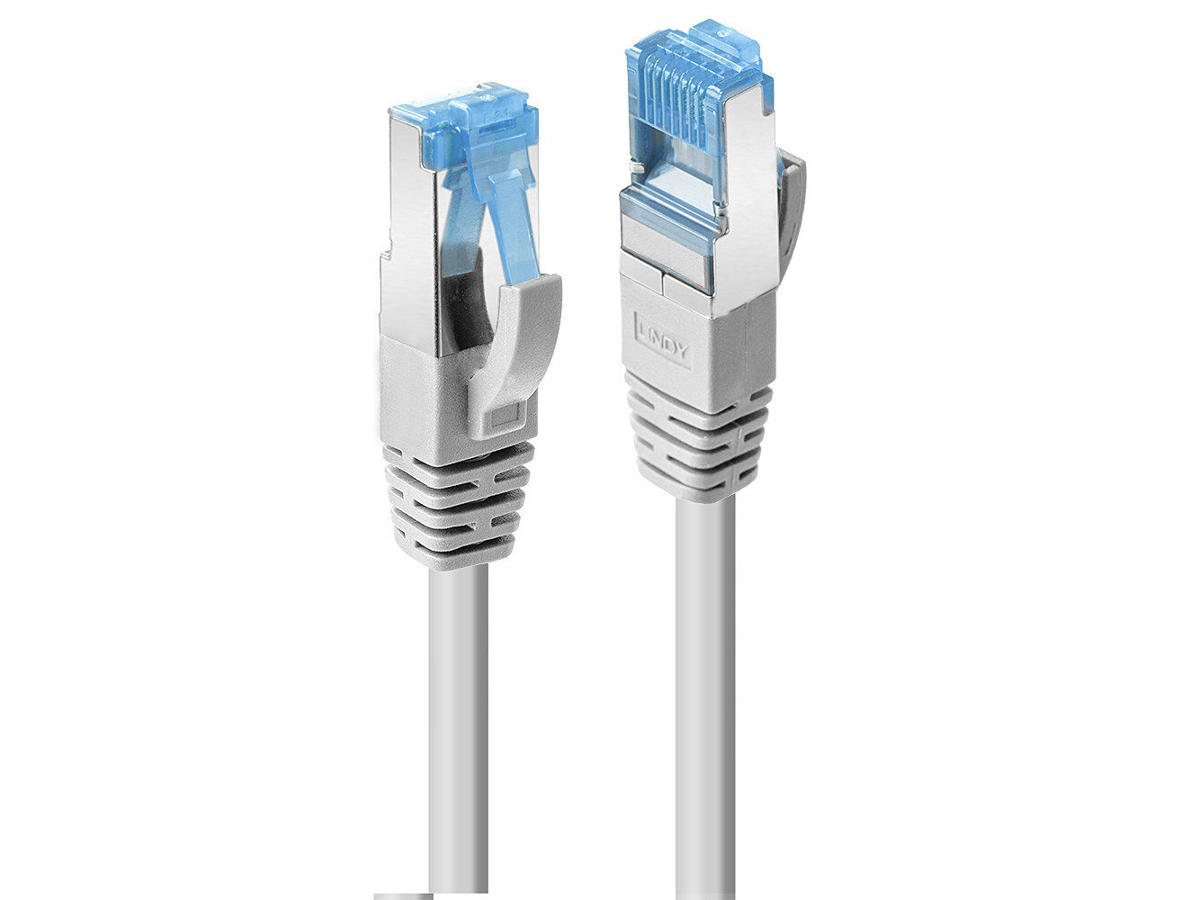

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
| Funktioner | |
| Kabellængde | 5 m |
| Standard for kabler | Cat6a |
| Kabelafskærmning | S/FTP (S-STP) |
| Stik 1 | RJ-45 |
| Stik 2 | RJ-45 |
| Produktfarve | Grå |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Stikforbindelse kontakter plettering | Guld |
| Stik afskærmning | Ja |
| Stik skjold materiale | Aluminium |
| Materiale for kapper | Lav røg ingen halogen (LSZH) |
| Ledningsmateriale | Kobber |
| Kabelklasse | Ea |
| Kabelteknologi | 10/100/1000Base-T(X) |
| AWG-ledningsstørrelse | 27 |
| Dataoverførselshastighed | 1000 Mbit/s |
| Frekvens | 500 MHz |
| Bøjningsradius (min) | 7,2 cm |
| Plug and play | Ja |
| Nominel dæmpning | 49.3dB/100m @ 500MHz |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -10 - 60 °C |
| Opbevaringstemperatur (T-T) | -20 - 75 °C |
| Godkendelser | |
| Certificering | RoHS, REACH, UL, California Proposition 65 |
| Vægt & størrelser | |
| Ydre diameter | 6 mm |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Emballeringsdata | |
| Pakketype | Polybag |
| Logistik data | |
| Harmoniseret systemkode (HS) | 84733080 |
