Mere information
-

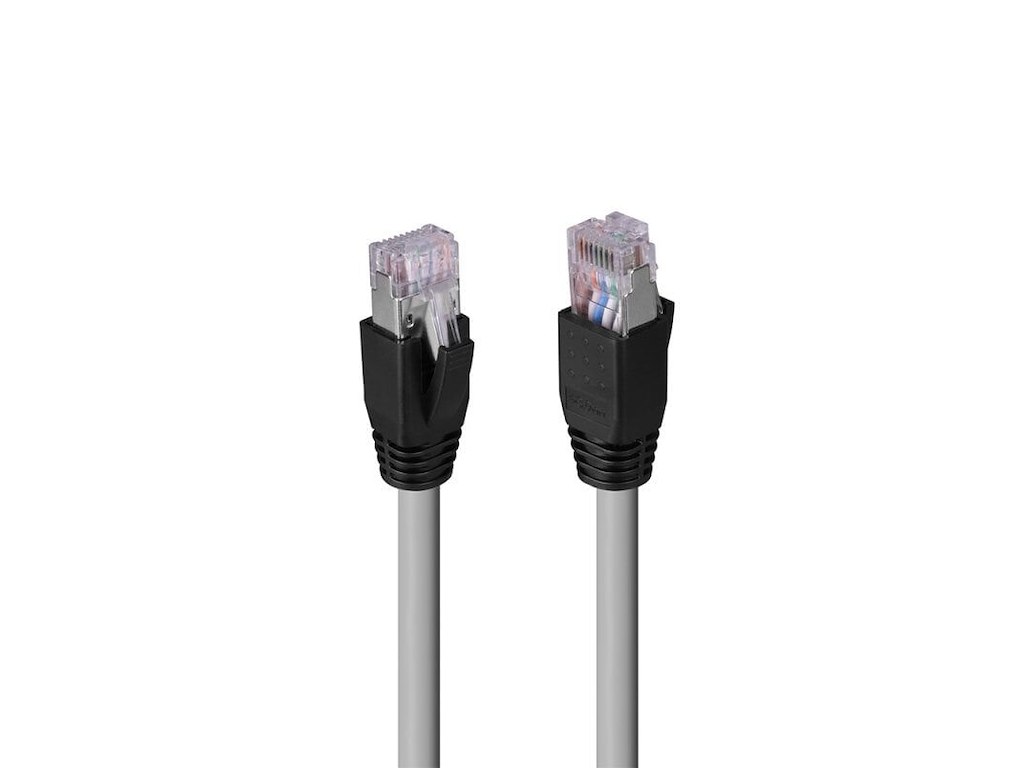

Cat.6A U/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T. Cat 6A cable, shielded with foil shielded with single pair shielding (U/FTP). These cables are manufactured and tested according to the ISO/IEC 11801 specification.
Providing superior performance for HDBaseT devices and improving signal integrity, whilst providing stable electrical performance making this cable an ideal choice for high-speed data networks across a home or building. Ensuring reliable and stable signal transmission over extended distances, making it an excellent choice for professional installations where performance and dependability are paramount.
Ideal for use with HD A/V applications from HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display.
Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These are twisted together to form 4 pairs with varying lay lengths. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. -
Funktioner Kabellængde 80 m Standard for kabler Cat6a Kabelafskærmning U/FTP (STP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Grå Stik 1 køn Hanstik Stik 2 køn Hanstik Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel/guld Stik afskærmning Ja Stik skjold materiale Aluminium Materiale for kapper Lav røg ingen halogen (LSZH) Kabelform Rund Ledningsmateriale Kobber Materiale til stikhus Polykarbonat (PC) Kabelteknologi 10GBase-T AWG-ledningsstørrelse 23 Frekvens 500 MHz Bøjningsradius (min) 6,9 cm Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -20 - 75 °C Bæredygtighed Indeholder ikke Halogen Godkendelser Compliance-certifikater CE, REACH, RoHS, UKCA Certificering CE, UKCA, RoHS, REACH Vægt & størrelser Bredde 11,6 mm Dybde 21,5 mm Højde 8,3 mm Ydre diameter 7,6 mm Emballage indhold Antal pr. pakke 1 stk Brugervejledning Ja Emballeringsdata Pakketype Polybag Logistik data Garantiperiode 10 År Tekniske detaljer Overholdelse af bæredygtighed Ja
