Mere information
-

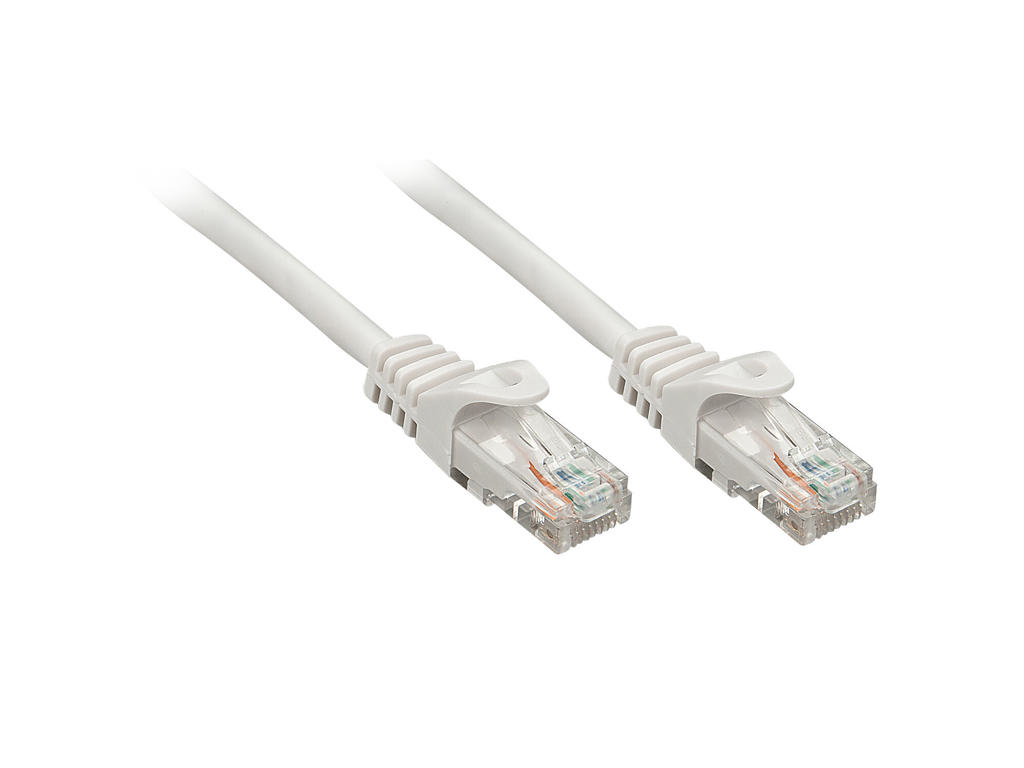

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 1m, 2m, 3m, 5m. -
Funktioner Kabellængde 1 m Standard for kabler Cat5e Kabelafskærmning U/UTP (UTP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Grå Stik 1 køn Hanstik Stik 2 køn Hanstik Stikforbindelse kontakter plettering Guld Materiale for kapper Polyvinylchlorid (PVC) Ledningsmateriale Kobberbeklædt aluminium (CCA) AWG-ledningsstørrelse 26 Frekvens 100 MHz Bøjningsradius (min) 5,7 cm Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -20 - 75 °C Godkendelser Certificering RoHS, REACH, California Proposition 65 Vægt & størrelser Ydre diameter 4,8 mm Stik 1 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Stik 2 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Emballage indhold Antal pr. pakke 50 stk Emballeringsdata Pakketype Kasse Logistik data Harmoniseret systemkode (HS) 84733080
