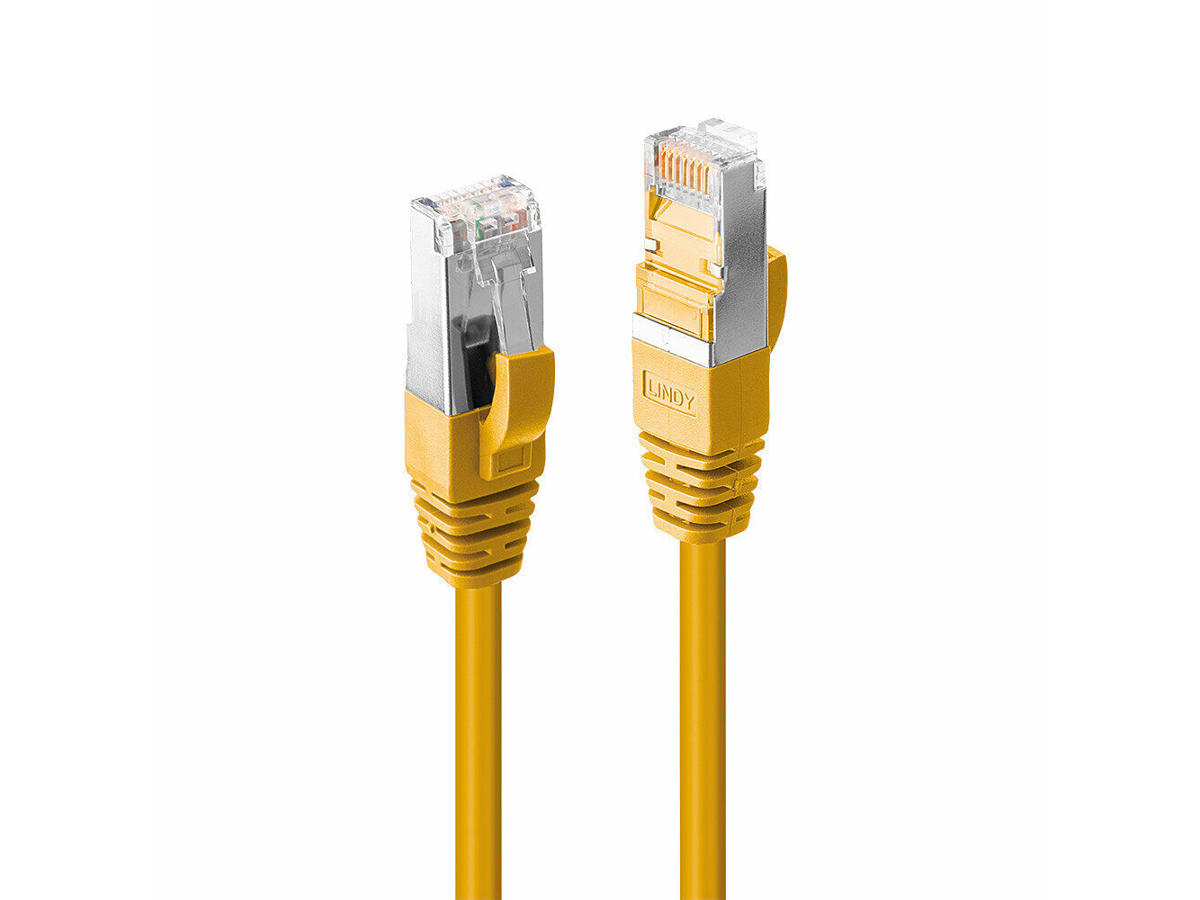

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Funktioner | |
Kabellængde | 10 m |
Standard for kabler | Cat6a |
Kabelafskærmning | S/FTP (S-STP) |
Stik 1 | RJ-45 |
Stik 2 | RJ-45 |
Produktfarve | Gul |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Guld |
Stik afskærmning | Ja |
Stik skjold materiale | Aluminium |
Materiale for kapper | Lav røg ingen halogen (LSZH) |
Kabelform | Rund |
Ledningsmateriale | Kobber |
Materiale til stikhus | Polykarbonat (PC) |
AWG-ledningsstørrelse | 27 |
Frekvens | 500 MHz |
Bøjningsradius (min) | 7,2 cm |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 60 °C |
Opbevaringstemperatur (T-T) | -20 - 75 °C |
Vægt & størrelser | |
Bredde | 11,6 mm |
Dybde | 21,5 mm |
Højde | 8,3 mm |
Ydre diameter | 6 mm |
Emballeringsdata | |
Pakketype | Polybag |
Tekniske detaljer | |
Compliance-certifikater | REACH, RoHS |
Overholdelse af bæredygtighed | Ja |
