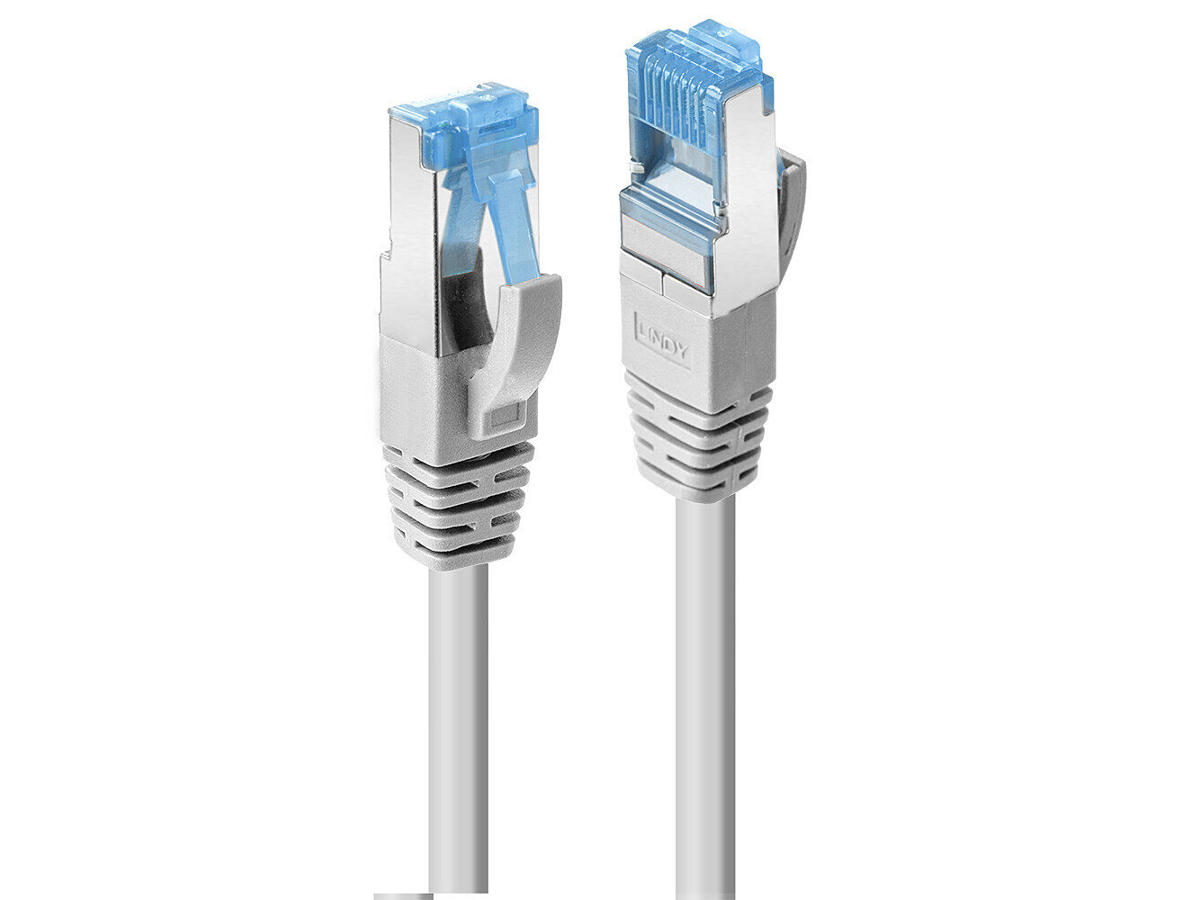

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
| Funktioner | |
| Kabellængde | 20 m |
| Standard for kabler | Cat6a |
| Kabelafskærmning | S/FTP (S-STP) |
| Stik 1 | RJ-45 |
| Stik 2 | RJ-45 |
| Produktfarve | Grå |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Stik 1 formfaktor | Lige |
| Stik 2 formfaktor | Lige |
| Stikforbindelse kontakter plettering | Nikkel/guld |
| Stik afskærmning | Ja |
| Stik skjold materiale | Aluminium |
| Materiale for kapper | Termoplastisk elastomer (TPE) |
| Kabelform | Rund |
| Ledningsmateriale | Kobber |
| Materiale til stikhus | Polykarbonat (PC) |
| AWG-ledningsstørrelse | 28 |
| Frekvens | 500 MHz |
| Bøjningsradius (min) | 7,4 cm |
| Stikhætte kabelstøvle | Ja |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -10 - 60 °C |
| Opbevaringstemperatur (T-T) | -20 - 75 °C |
| Godkendelser | |
| Compliance-certifikater | CE, REACH, RoHS |
| Certificering | UL, California Proposition 65 |
| Vægt & størrelser | |
| Bredde | 11,6 mm |
| Dybde | 22,8 mm |
| Højde | 8,3 mm |
| Ydre diameter | 6,2 mm |
| Emballage indhold | |
| Antal pr. pakke | 1 stk |
| Emballeringsdata | |
| Pakketype | Polybag |
| Logistik data | |
| Garantiperiode | 10 År |
| Tekniske detaljer | |
| Overholdelse af bæredygtighed | Ja |
