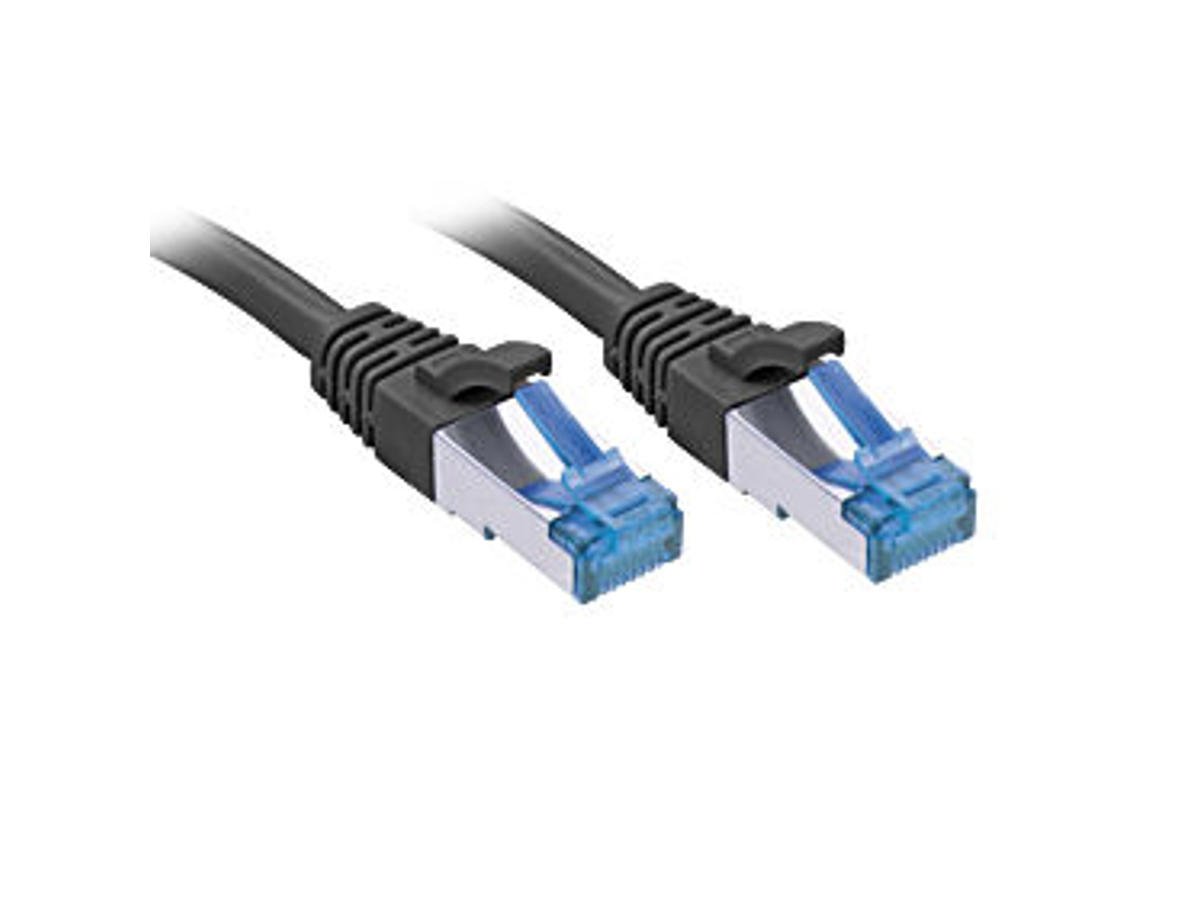

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. -
Funktioner Kabellængde 15 m Standard for kabler Cat6a Kabelafskærmning S/FTP (S-STP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Sort Stik 1 køn Hanstik Stik 2 køn Hanstik Stikforbindelse kontakter plettering Nikkel/guld Stik afskærmning Ja Stik skjold materiale Aluminium Materiale for kapper Termoplastisk elastomer (TPE) Ledningsmateriale Kobber Kabelklasse Ea Kabelteknologi 10/100/1000Base-T(X) Netværksstandarder IEEE 802.3af, IEEE 802.3at AWG-ledningsstørrelse 27 Frekvens 500 MHz Bøjningsradius (min) 7,4 cm Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -20 - 75 °C Godkendelser Certificering RoHS, REACH, UL, California Proposition 65 Vægt & størrelser Ydre diameter 6,2 mm Stik 1 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Stik 2 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Emballeringsdata Pakketype Polybag Andre funktioner Kabeldiameter 6 mm Logistik data Harmoniseret systemkode (HS) 84733080
