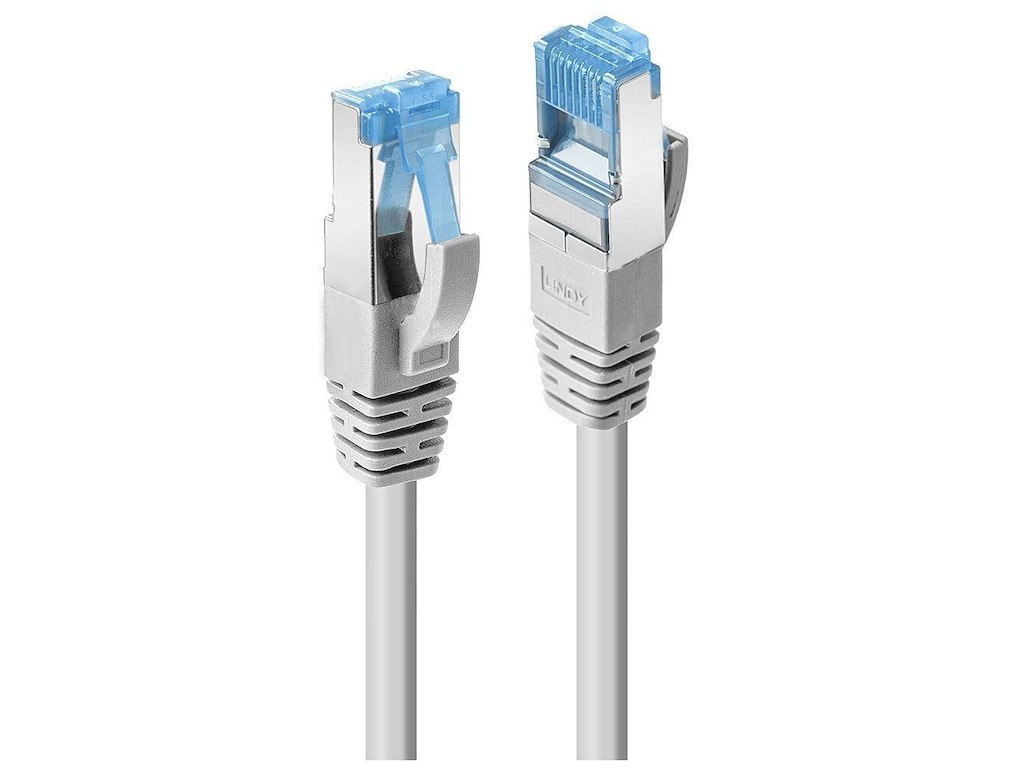

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 50m, 70m, 100m.
Available colours: Black, Blue, Grey, Red, White -
Funktioner Kabellængde 70 m Standard for kabler Cat6a Kabelafskærmning S/FTP (S-STP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Grå Stik 1 køn Hanstik Stik 2 køn Hanstik Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel/guld Stik afskærmning Ja Stik skjold materiale Aluminium Materiale for kapper Lav røg ingen halogen (LSZH) Kabelform Rund Ledningsmateriale Kobber Kabelklasse Ea Kabelteknologi 10GBase-T Ethernet-grænsefladetype 10 Gigabit Ethernet AWG-ledningsstørrelse 27 Dataoverførselshastighed 1000 Mbit/s Frekvens 500 MHz Bøjningsradius (min) 7,2 cm Stikhætte kabelstøvle Ja Plug and play Ja Nominel dæmpning 49.3dB/100m @ 500MHz Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -20 - 75 °C Godkendelser Compliance-certifikater CE, REACH, RoHS Certificering RoHS, REACH, UL Vægt & størrelser Ydre diameter 6 mm Stik 1 dimensioner (BxDxH) 11,6 x 21,5 x 8,3 mm Stik 2 dimensioner (BxDxH) 11,6 x 21,5 x 8,3 mm Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakkebredde 11,6 mm Pakkedybde 21,5 mm Pakkehøjde 8,3 mm Pakketype Polybag Logistik data Harmoniseret systemkode (HS) 84733080 Tekniske detaljer Overholdelse af bæredygtighed Ja
