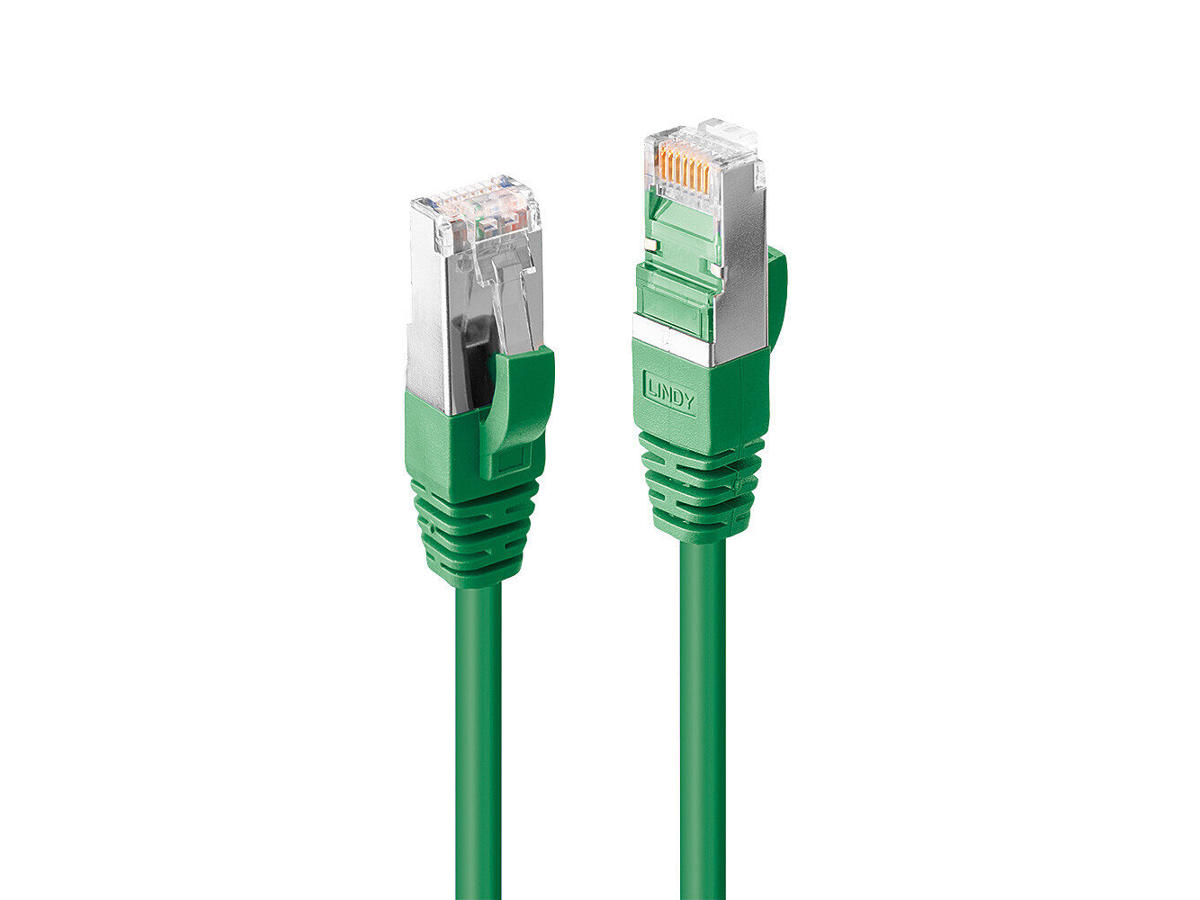

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications.
These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Gray, Red. Verde -
Funktioner Kabellængde 10 m Standard for kabler Cat6 Kabelafskærmning S/FTP (S-STP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Grøn Stik 1 køn Hanstik Stik 2 køn Hanstik Stik 1 formfaktor Lige Stik 2 formfaktor Lige Stikforbindelse kontakter plettering Nikkel/guld Stik afskærmning Ja Stik skjold materiale Aluminium/Polyester Materiale for kapper Lav røg ingen halogen (LSZH) Ledningsmateriale Kobber AWG-ledningsstørrelse 26 Dataoverførselshastighed 1000 Mbit/s Frekvens 250 MHz Bøjningsradius (min) 1,86 cm Driftsbetingelser Driftstemperatur (T-T) -25 - 60 °C Opbevaringstemperatur (T-T) -25 - 60 °C Godkendelser Certificering RoHS, REACH, UL Vægt & størrelser Ydre diameter 6,2 mm Stik 1 dimensioner (BxDxH) 11,6 x 21,5 x 8,3 mm Stik 2 dimensioner (BxDxH) 11,6 x 21,5 x 8,3 mm Emballage indhold Antal pr. pakke 1 stk Emballeringsdata Pakketype Polybag
