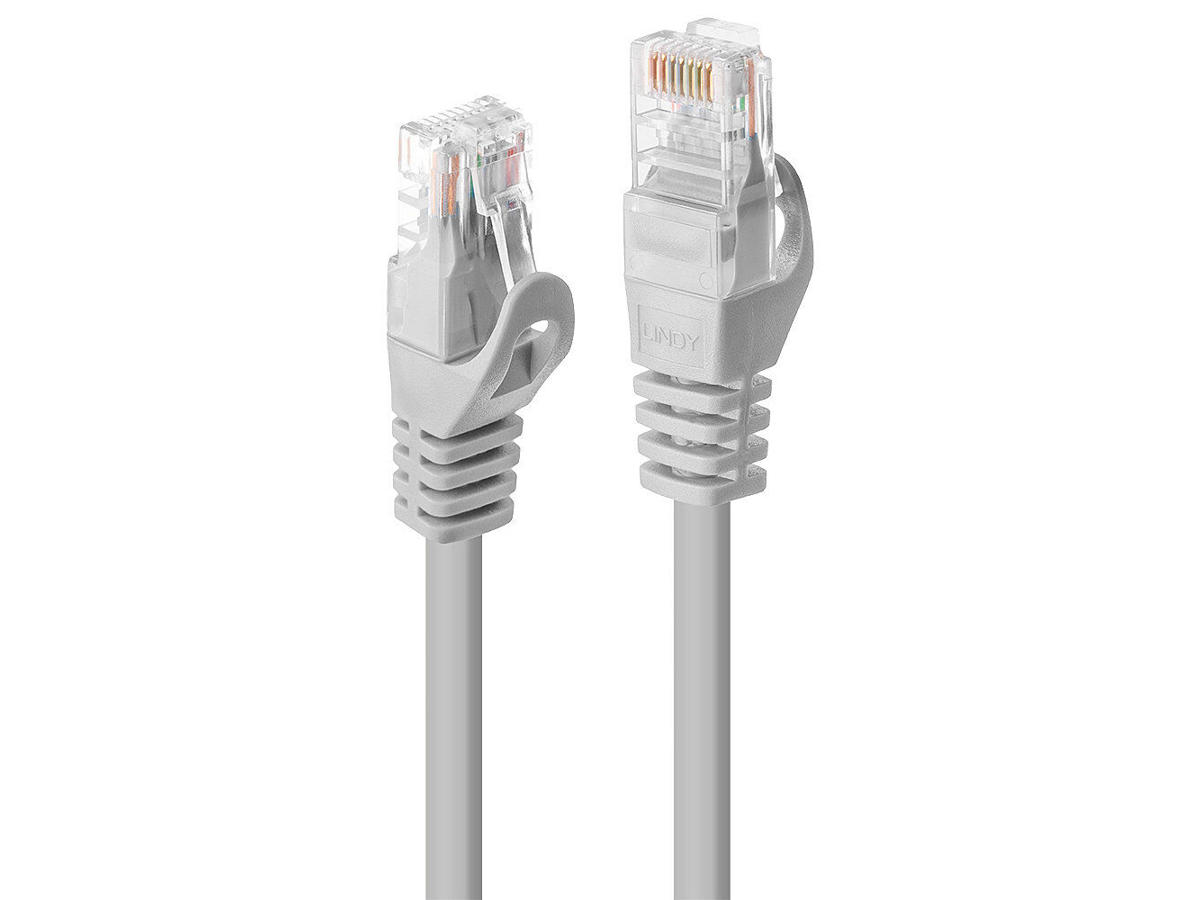

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m. -
Funktioner Kabellængde 3 m Standard for kabler Cat5e Kabelafskærmning U/UTP (UTP) Stik 1 RJ-45 Stik 2 RJ-45 Produktfarve Grå Stik 1 køn Hanstik Stik 2 køn Hanstik Stikforbindelse kontakter plettering Guld Materiale for kapper Polyvinylchlorid (PVC) Ledningsmateriale Kobber Kabeltype Direkte kabel Kabelteknologi 10/100/1000Base-T(X) AWG-ledningsstørrelse 26 Dataoverførselshastighed 1000 Mbit/s Frekvens 100 MHz Bøjningsradius (min) 5,7 cm Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -20 - 75 °C Bæredygtighed Indeholder ikke Halogen Godkendelser Certificering RoHS, REACH, UL, California Proposition 65 Vægt & størrelser Ydre diameter 4,8 mm Stik 1 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Stik 2 dimensioner (BxDxH) 11,6 x 22,8 x 8,3 mm Emballeringsdata Pakketype Polybag Logistik data Harmoniseret systemkode (HS) 84733080
