Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.
Use of Wi-Fi 6 (802.11 ax), and features including OFDMA, MU-MIMO, and 1024-QAM require APs to also support the corresponding features.
Functionality of the adapter may be restricted on some operating systems and platforms. Please try to update the device's driver for feature compatibility.
Use of WPA3 requires APs to also support the corresponding feature.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Lightning-Fast WiFi 6
Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
Flexible Dual Band
Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands

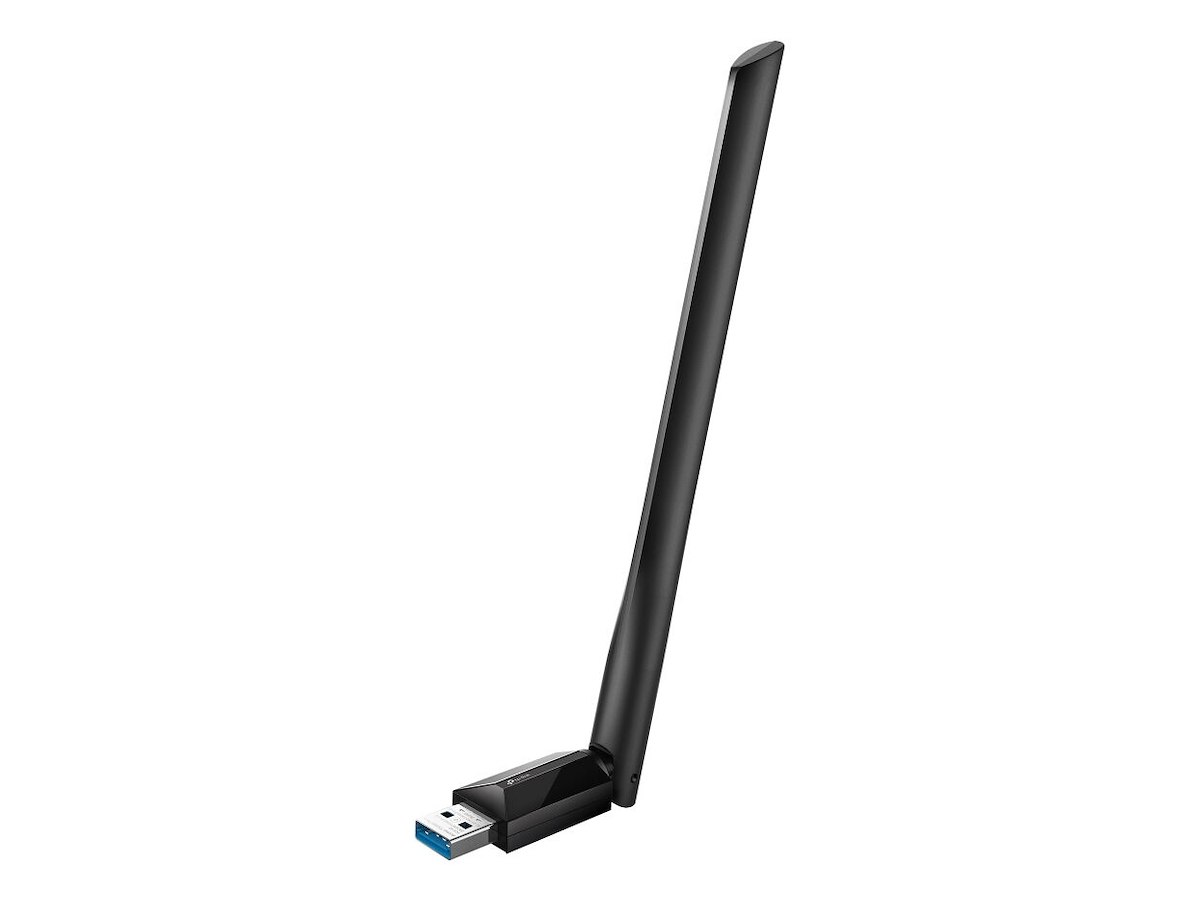

Dual High-Gain Antennas
Connect from farther away with high gain antennas and Beamforming technology
Ultra-Low Latency
The combo of OFDMA and MU-MIMO ensures the most efficient Wi-Fi connection for your PC, reducing latency for faster speeds
SuperSpeed USB 3.0
Up to 10× faster transfer speeds than USB 2.0
Refined Security
Protect your personal data with the latest WPA3 encryption -
Porte & Grænseflader Forbindelsesteknologi Trådløs Værtsgrænseflade USB Grænseflade WLAN USB-stik formfaktor Vinklet USB version 3.2 Gen 1 (3.1 Gen 1) Netværk Maksimal dataoverførselshastighed 1201 Mbit/s Netværksstandarder IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wi-Fi Ja Wi-Fi-bånd Dual-band (2,4 GHz / 5 GHz) Frekvensområde 2,4 - 5 GHz Bedste Wi-Fi standard Wi-Fi 6 (802.11ax) Understøttede WLAN-dataoverførselshastigheder 11,54,300,574,867,1200 Mbit/s Modulation 1024-QAM, OFDMA Sikkerhedsalgoritmer WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 Bluetooth Ingen MU-MIMO Ja Design Intern Ingen Komponent til PC/Laptop Produktfarve Sort Antenne Ja Antennedesign Ekstern Sendeeffekt (CE) 17 dBm Sendeeffekt (FCC) 19 dBm LED-indikatorer Status Strømstyring USB-drevet Ja Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 11 Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 57,8 mm Dybde 173,4 mm Højde 18 mm Emballeringsdata Pakketype Kasse Emballage indhold Hurtig installationsvejledning Ja Emballageindhold AX1800 High Gain Wireless USB Adapter Tekniske detaljer Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS
