Varenummer: ST1000SPEXI
Mere information
-

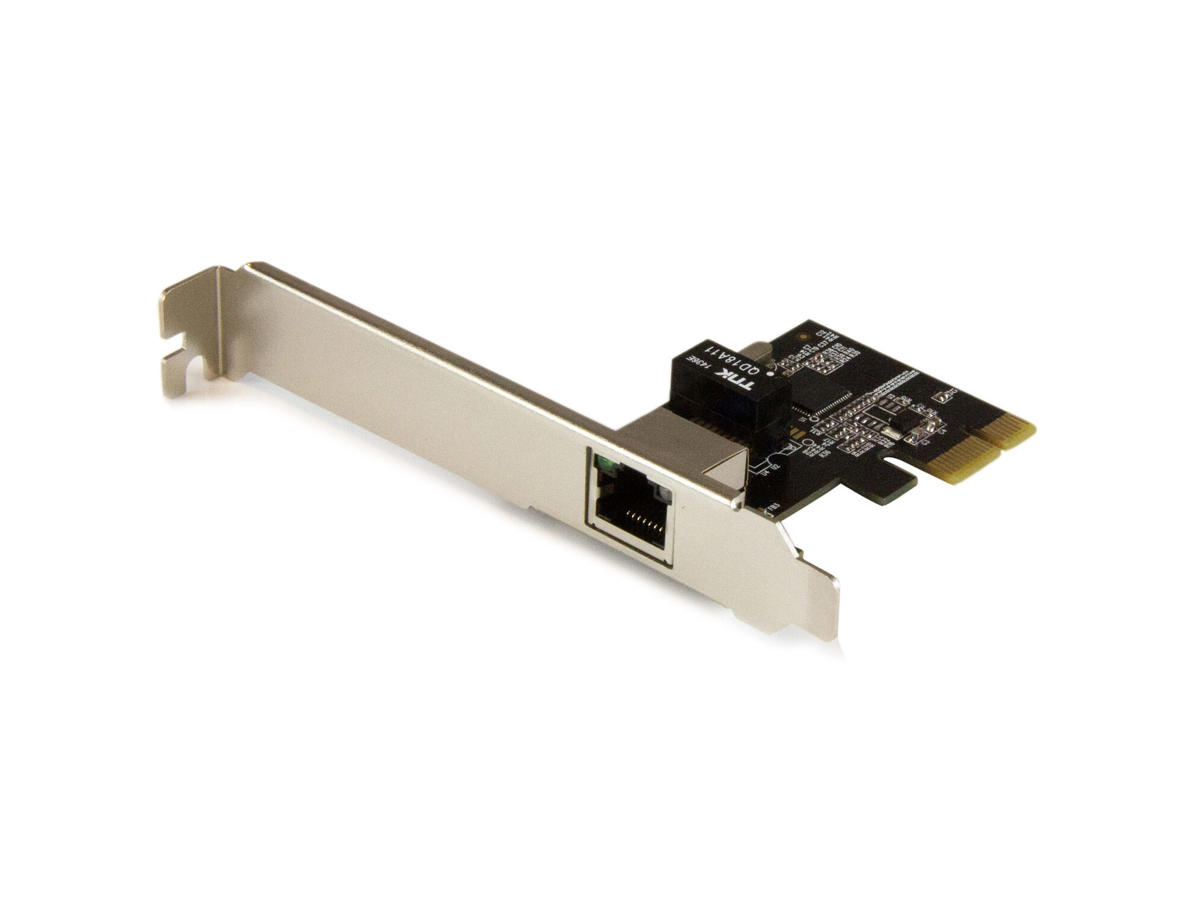

Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a high-performance, cost-effective networking solution.
The performance and reliability you demand in network connectivity
This PCI Express Gigabit Ethernet card utilizes the Intel® I210-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the GbE network card provides an effective upgrade or replacement network port, with a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring servers or workstation upgrades. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On-LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Mac Address Pass-Through Utility : To improve network security.
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 1 Netværk Maksimal dataoverførselshastighed 2000 Mbit/s Netværksstandarder IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Ethernet LAN Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Kabelteknologi 10/100/1000BaseT(X) Wake-on-LAN klar Ja Auto MDIX IEEE Ja Fuld duplex Ja Jumbo Frames support Ja Auto-forhandling Ja VLAN mærkning Ja Design Intern Ja Komponent til PC/server Produktfarve Sort, Metallic Chipsæt Intel® I210-AT LED-indikatorer Aktivitet Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Understøttede Linux-operativsystemer Ja Understøttede operativsystemer til servere Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Driftsbetingelser Driftstemperatur (T-T) 5 - 50 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 20 - 80% Vægt & størrelser Bredde 66 mm Dybde 120 mm Højde 18 mm Vægt 38 g Emballeringsdata Pakkebredde 142 mm Pakkedybde 170 mm Pakkehøjde 28 mm Pakkevægt 100 g Emballage indhold Monteringsbeslag inkluderet Ja Brugervejledning Ja Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990 Hovedkassens bredde (udvendigt) 304 mm Hovedkassens længde (udvendigt) 592 mm Hovedkassen højde (udvendigt) 357 mm Produkter pr. hovedkasse (udvendigt) 80 stk Bæredygtighed Overholdelse af bæredygtighed Ja
