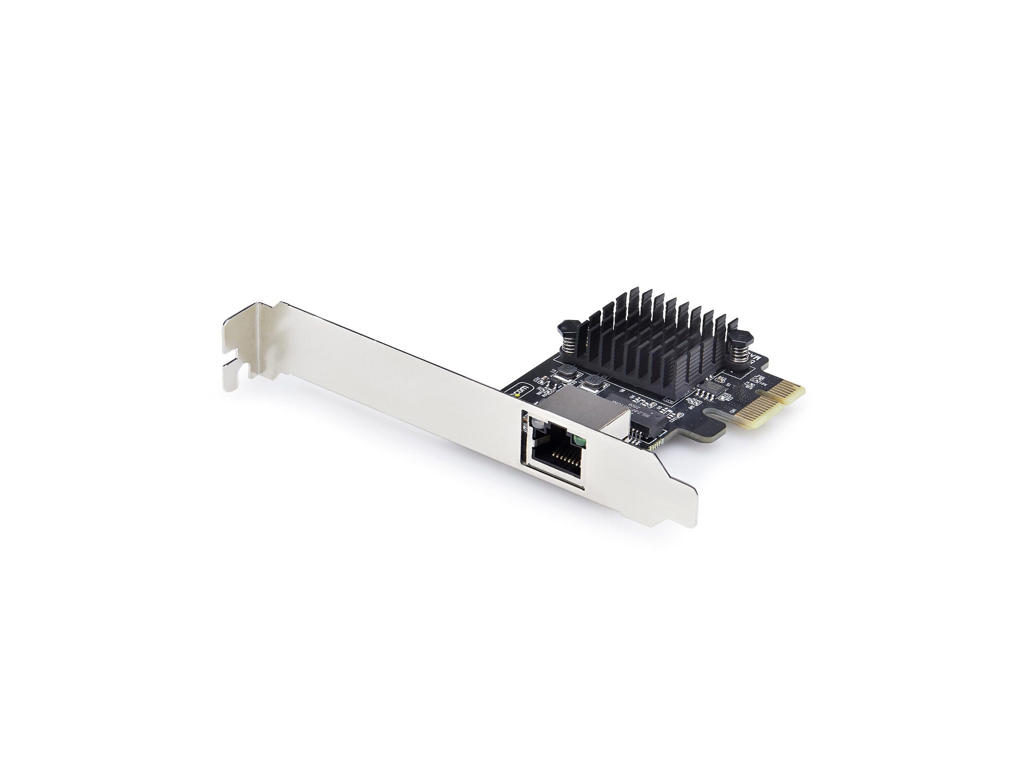

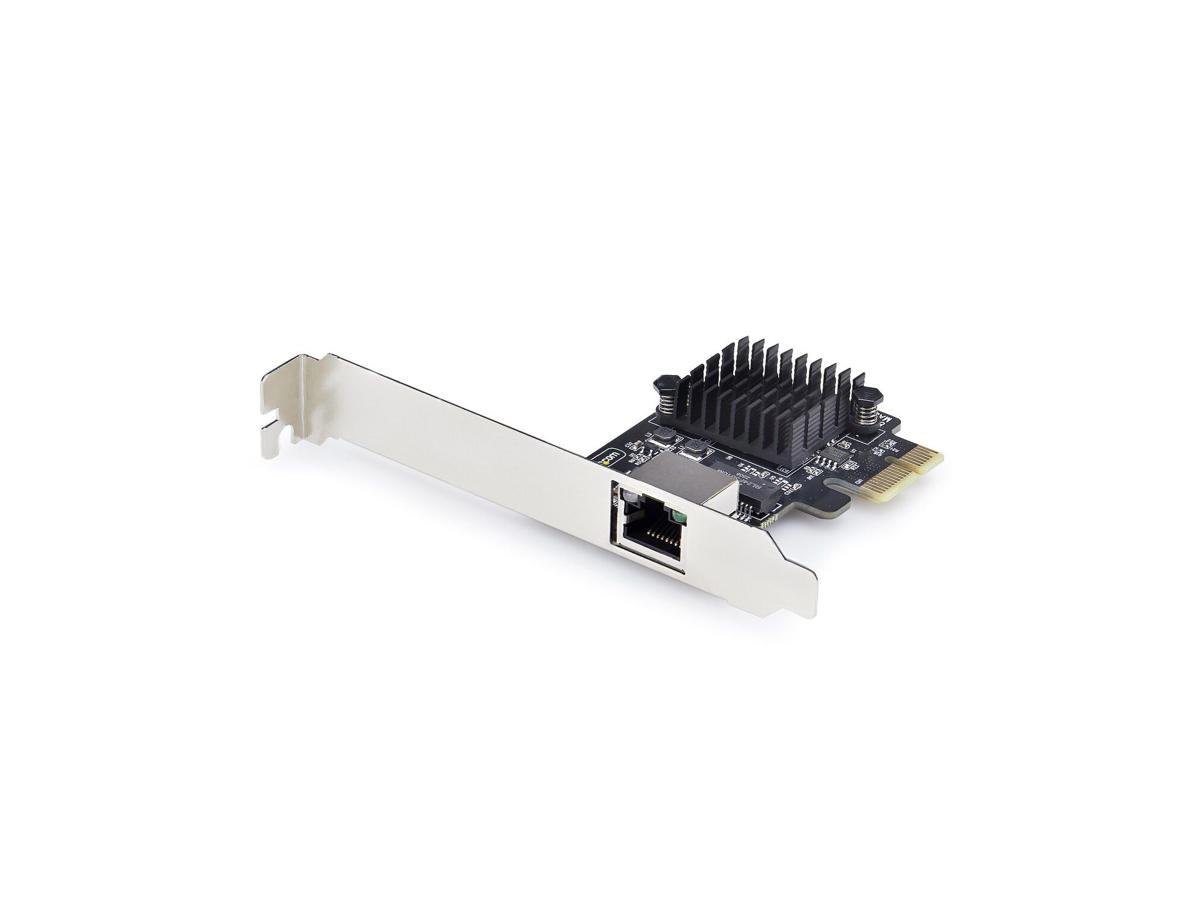

Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer
This TAA-compliant 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.
Universal Fit
The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.
The StarTech.com Advantage
| Porte & Grænseflader | |
| Forbindelsesteknologi | Ledningsført |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 1 |
| Netværk | |
| Maksimal dataoverførselshastighed | 5000 Mbit/s |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet |
| Ethernet LAN-datahastigheder | 10,100,1000,2500,5000 Mbit/s |
| Wake-on-LAN klar | Ja |
| Auto MDIX IEEE | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Design | |
| Intern | Ja |
| Komponent til | PC/server |
| Produktfarve | Sort, Sølv |
| Chipsæt | Realtek RTL8126 |
| LED-indikatorer | Hastighed, Status |
| Systemkrav | |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede operativsystemer til servere | Windows Server 2019, Windows Server 2022 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 5 - 65 °C |
| Opbevaringstemperatur (T-T) | -30 - 90 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
| Vægt & størrelser | |
| Bredde | 120 mm |
| Dybde | 72 mm |
| Højde | 18 mm |
| Vægt | 40,5 g |
| Emballeringsdata | |
| Pakkebredde | 142 mm |
| Pakkedybde | 170 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 103,9 g |
| Emballage indhold | |
| Monteringsbeslag inkluderet | Ja |
| Hurtig installationsvejledning | Ja |
| Tekniske detaljer | |
| Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
| Logistik data | |
| Hovedkassens bredde (udvendigt) | 685 mm |
| Hovedkassens længde (udvendigt) | 345 mm |
| Hovedkassen højde (udvendigt) | 306 mm |
| Produkter pr. hovedkasse (udvendigt) | 75 stk |
