Varenummer: ST1000PEXPSE
Mere information
-
IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-T

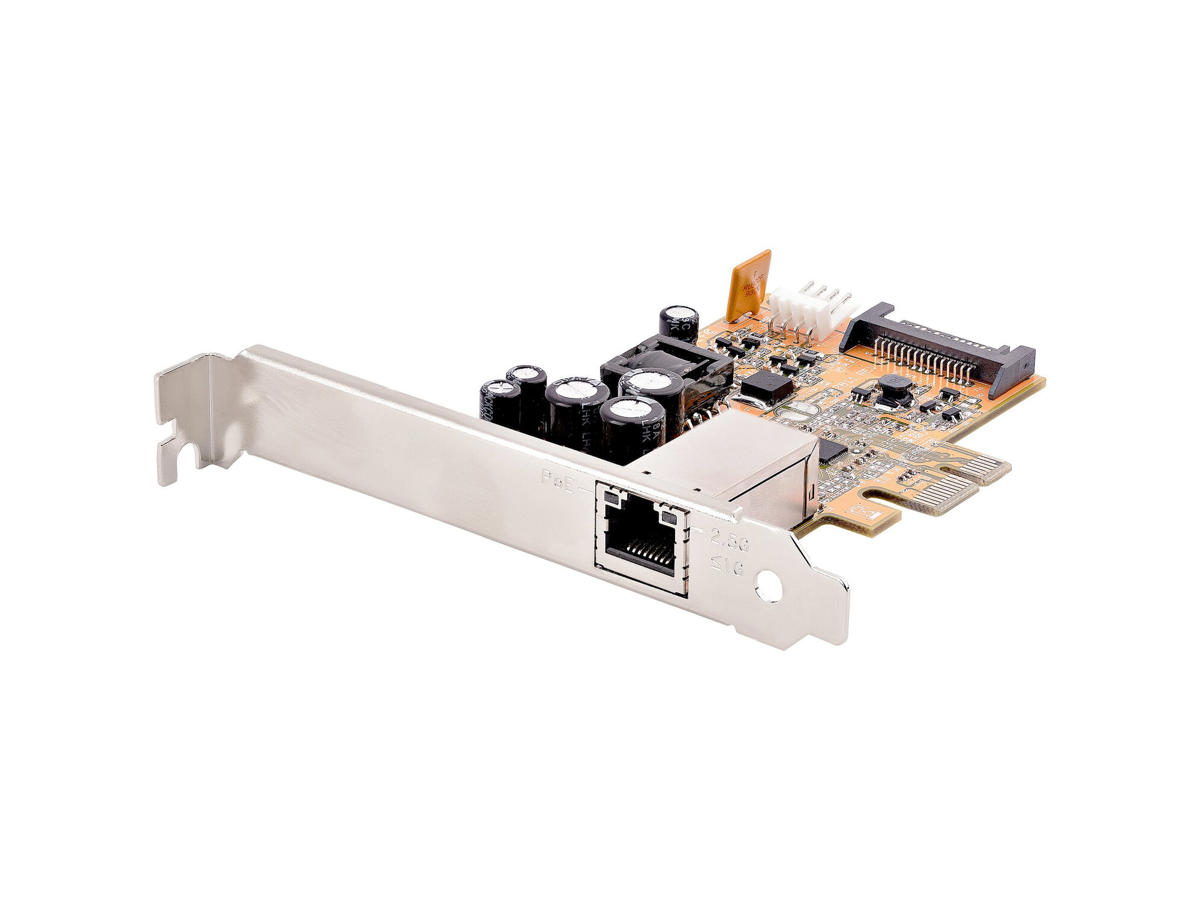

The Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.
Versatile Network PoE Card
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Enhance Existing Hardware
The network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.
Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage -
Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 1 Power over Ethernet (PoE) porte, antal 1 PCI version 2.1 PCI-kort formfaktor Fuld højde (lav profil) Netværk Maksimal dataoverførselshastighed 2500 Mbit/s Netværksstandarder IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u Ethernet LAN Ja Ethernet-grænsefladetype 2.5 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet Ethernet LAN-datahastigheder 10,100,1000,2500 Mbit/s Wake-on-LAN klar Ja Auto MDIX IEEE Ja Fuld duplex Ja Jumbo Frames support Ja Jumbo rammer 16000 VLAN mærkning Ja Maksimal driftstilstand 100 m Design Intern Ja Komponent til PC/server Chipsæt Realtek RTL8125B LED-indikatorer Ja Strømstyring Udgangsspænding 48 V Systemkrav Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Understøttede Linux-operativsystemer Ja Understøttede operativsystemer til servere Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 Driftsbetingelser Driftstemperatur (T-T) 0 - 55 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 63 mm Dybde 95 mm Højde 15 mm Vægt 220 g Emballeringsdata Pakkebredde 207 mm Pakkedybde 144 mm Pakkehøjde 38 mm Pakkevægt 220 g Emballage indhold Monteringsbeslag inkluderet Ja Hurtig installationsvejledning Ja Tekniske detaljer Compliance-certifikater CE, RoHS Logistik data Hovedkassens bredde (udvendigt) 530 mm Hovedkassens længde (udvendigt) 440 mm Hovedkassen højde (udvendigt) 340 mm Produkter pr. hovedkasse (udvendigt) 50 stk Bæredygtighed Overholdelse af bæredygtighed Ja
