Mere information
-
Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

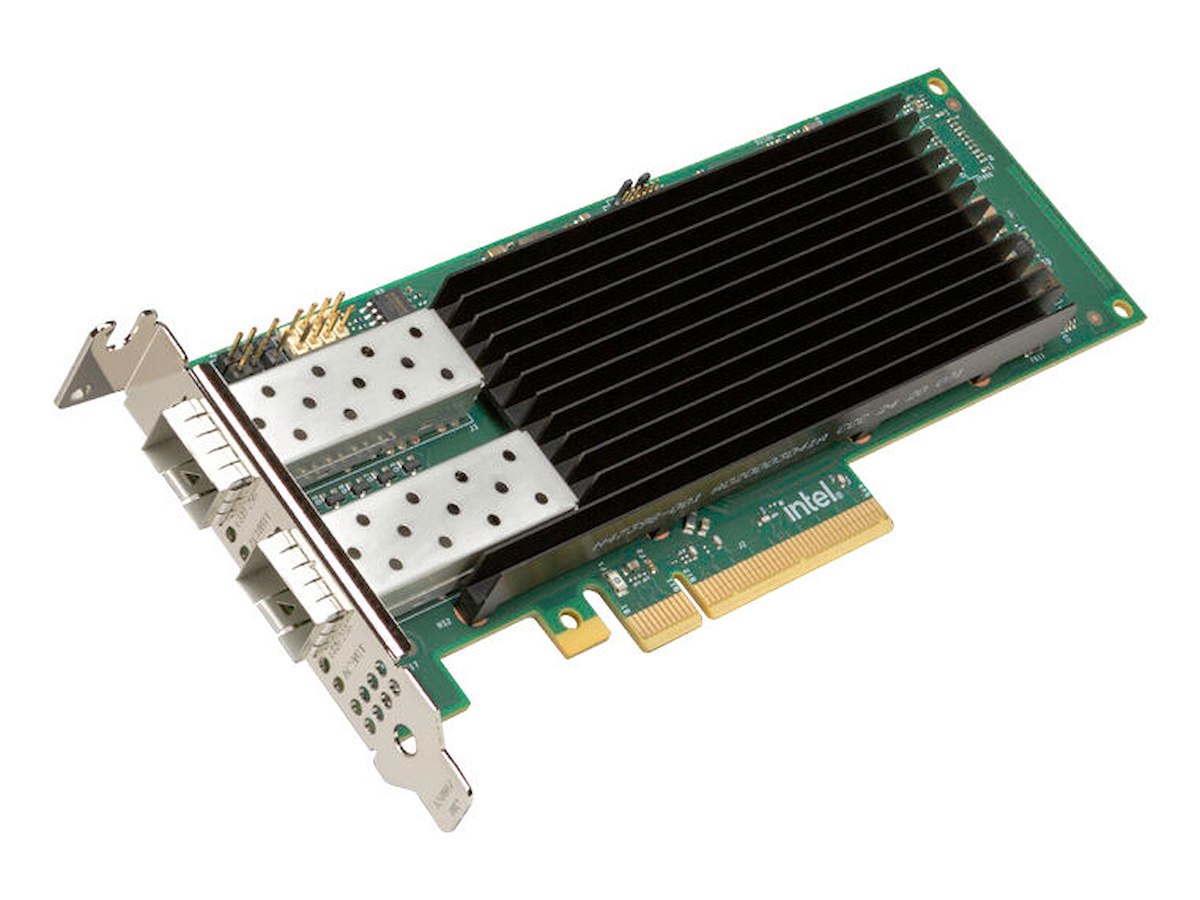

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Fiber Fiberkanal porte 2 Fiber optisk strømstik QSFP28 PCI version 5.0 PCI-kort formfaktor Fuld højde (lav profil) Netværk Maksimal dataoverførselshastighed 25000 Mbit/s Netværksstandarder IEEE 1588, IEEE 1588v2 Ethernet LAN Ja Ethernet-grænsefladetype 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet Design Intern Ja Komponent til Server Produktfarve Sort, Grøn, Sølv LED-indikatorer Aktivitet, Hastighed Driftsbetingelser Driftstemperatur (T-T) 0 - 65 °C Opbevaringstemperatur (T-T) -40 - 70 °C Tekniske detaljer Compliance-certifikater BSMI, CE, Federal Communications Commission (FCC), ICES, KCC, RCM, RoHS, UKCA, VCCI Logistik data Harmoniseret systemkode (HS) 8517620090 Andre funktioner Markedssegment Server Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Intelligent Offloads Ja iWARP/RDMA Ja Intel® Data Direct I/O Teknologi Ja Intel® Virtualization Technology for Connectivity (VT-c) Ja Ethernet adapter ARK ID 241942 Eksportkontrolklassisfikationsnummer (ECCN) 5A992.C Automatiseret sporingssystem til vareklassificering (CCATS) G157815L2 Kabeltype SFP28 ports - DAC, Optics, and AOC's Beslagshøjde Low-Profile (LP) / Full-Height (FH) Opbevaring over ethernet iSCSI, NFS Lanceringsdato Q1'25 Netværkskort kabel medium Copper, Fiber Status Launched
