Mere information
-
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance -

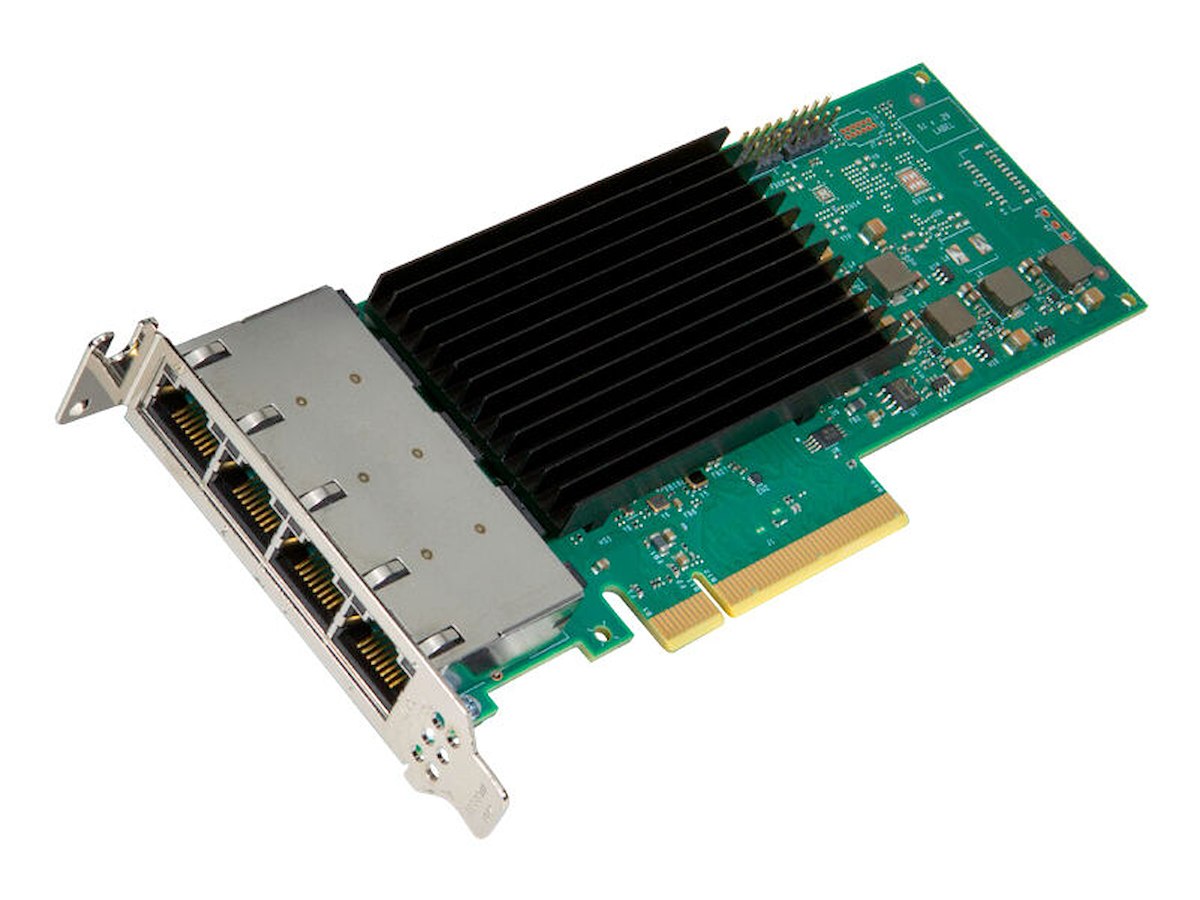

Porte & Grænseflader Forbindelsesteknologi Ledningsført Værtsgrænseflade PCI Express Grænseflade Ethernet Ethernet LAN-porte (RJ-45) 4 PCI version 4.0 PCI-kort formfaktor Fuld højde (lav profil) Netværk Maksimal dataoverførselshastighed 2500 Mbit/s Ethernet LAN Ja Ethernet-grænsefladetype 2.5 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet Ethernet LAN-datahastigheder 100,1000,2500 Mbit/s Kabelteknologi 2.5GBase-T LAN Kontroller Intel E610-IAT2 Design Intern Ja Komponent til Server Produktfarve Sort, Grøn, Sølv LED-indikatorer Aktivitet, Link Strømstyring Strømforbrug (typisk) 7,2 W Driftsbetingelser Driftstemperatur (T-T) 0 - 65 °C Opbevaringstemperatur (T-T) -40 - 70 °C Tekniske detaljer Compliance-certifikater BSMI, CE, Federal Communications Commission (FCC), KCC, RCM, RoHS, VCCI Logistik data Harmoniseret systemkode (HS) 8517620090 Andre funktioner Markedssegment Server Intel® Virtual Machine Device Queues (VMDq) Ja PCI-SIG* SR-IOV kompetent Ja On-chip QoS og trafik administration Ja Intel® Fleksibel Port-deling Ja Intelligent Offloads Ja iWARP/RDMA Ingen Intel® Data Direct I/O Teknologi Ja Intel® Virtualization Technology for Connectivity (VT-c) Ja Ethernet adapter ARK ID 230174 Eksportkontrolklassisfikationsnummer (ECCN) 5A992.C Automatiseret sporingssystem til vareklassificering (CCATS) G157815L2 Kabeltype RJ45 Category 6, Category 6A, Category 5e up to 100m Beslagshøjde Low-Profile (LP) / Full-Height (FH) Opbevaring over ethernet iSCSI, NFS Lanceringsdato Q2'25 Netværkskort kabel medium Copper Status Launched
